NAiS FP0-C32T User Manual

(+)
(-)
Yn
Load
Internal
circuit
External power supply for
driving internal circuit
(21.6 V to 26.4 V DC)
Rated load voltage
(5 V to 24 V DC)
Ground for load voltage and
for external power supply for
driving internal circuit
Control Units
FP0
2-17
Matsushita Automation Controls

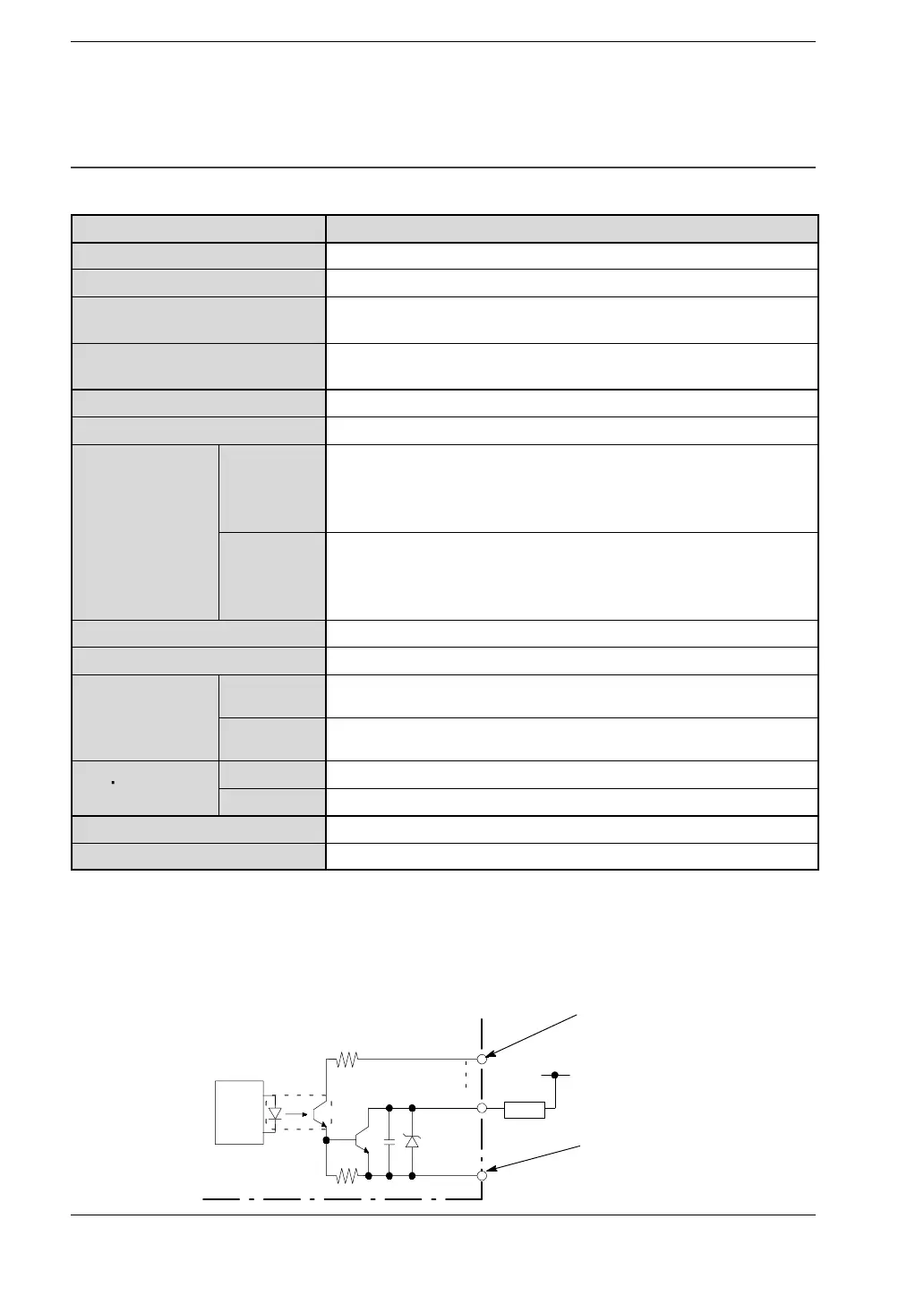

2.2 Specifications
2.2.4.2 Transistor Output Type
FP0 transistor output types: C16T, C16CT, C16P, C16CP, C32T, C32CT, C32P, C32CP
Item Description
Insulation method
optical coupler
Output type
open collector
Rated load voltage
NPN open collector type: 5 to 24 V DC (
*
Note)
PNP open collector type: 24 V DC
Operating load voltage
range
NPN open collector type: 4.75 to 26.4 V DC
PNP open collector type: 21.6 to 26.4 V DC
Max. load current
0.1 A
Max. surge current
0.3 A
Output points
per common
C16T,
C16CT,
C16P,
C16CP
8 points/common
C32T,
C32CT,
C32P,
C32CP
16 points/common
OFF state leakage current
100
μ
A or less
ON state voltage drop
1.5 V or less
External power
su
pp
l
y
for
Voltage
21.6 to 26.4 V DC
supply
for
driving internal
circuit
Current
Y0 and Y1: 5 mA/1 point, except Y0 and Y1: 3 mA/1 point
Response time OFF
o
ON
1 ms or less (Y0 and Y1 only: 50
μ
s or less)
p
ON
o
OFF
1 ms or less (Y0 and Y1 only: 50
μ
s or less)
Surge absorber
Zener diode
Operating mode indicator
LED
.
Note
For NPN open collector type, able to be used with different
voltages for the load voltage and the external power supply for
driving the internal circuit.
