NAiS FP0-C32T User Manual

Control Units
FP0
2-26
Matsushita Automation Controls

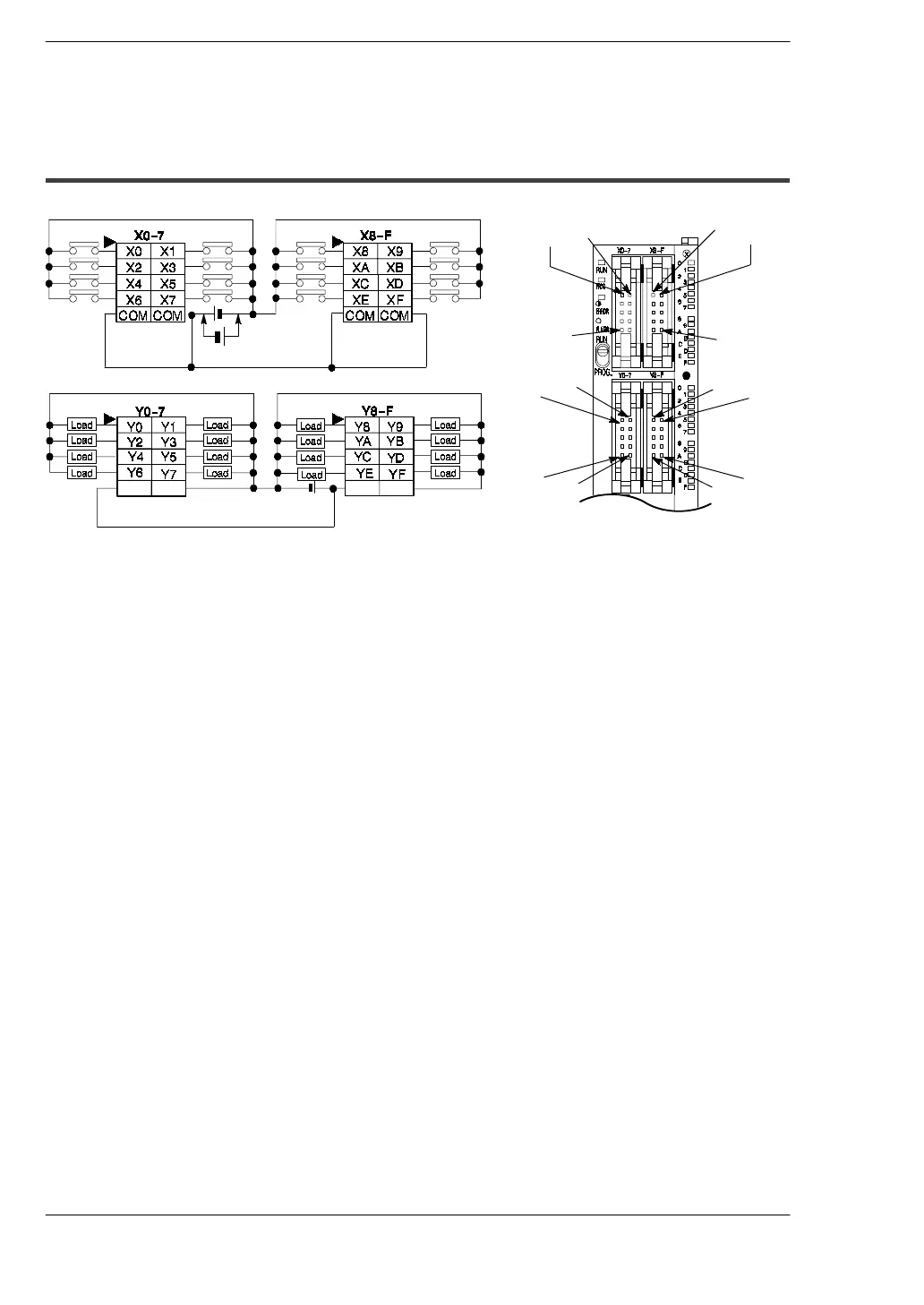

2.4 Pin Layouts
2.4.6 C32P/C32CP
C32P/C32CP
X8
Y8 Y9
X9
X0 X1
Y1Y0
COM
COM
(-)(+) (+) ( -)
Input Input
Output Output
(-)
(-)(+) (+)
(
*
Note 1)
.
Notes
D
The four COM terminals of input terminals (X0 -7 and X8-F) are
connected internally, however they should be externally
connected as well.
D
The (+) terminals of output terminals (Y0 - 7) and output
terminals (Y8- F) are connected internally, however they
should be externally connected as well.
D
The ( -) terminals of output terminals (Y0-7) and output
terminals (Y8- F) are connected internally, however they
should be externally connected as well.
D
(
*
1): Either positive or negative polarity is possible for the input
voltage supply.
