100
— Must be performed by a technician —


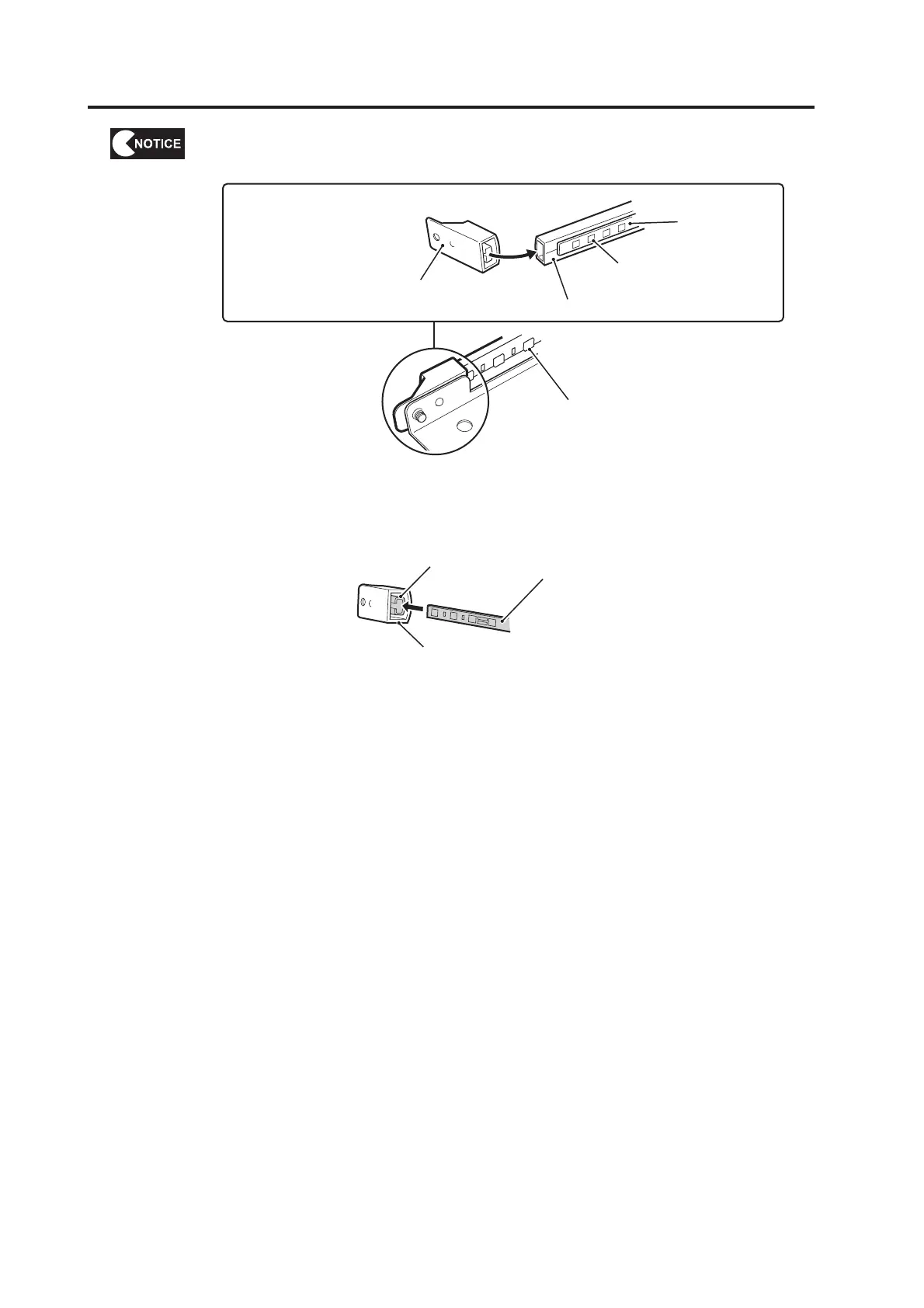

Install the LED bar (S) so that the light emitters face the direction shown in the

When installing, take care to press the LED Bar (S) all the way into the guide in
the center of the LED tube cap (L) so that it will not come loose.
LED tube
LED bar (S)
Light emitter
Light emitter
LED tube cap (L)
Align the cross section shapes
and fit the LED tube cap (L)
over the end of the LED tube.
Guide
LED tube cap (L)
LED Bar (S)
