12
Signboard assembly
LCD monitor
Control cover
Pedal assembly
Rainbow PC board
(top cover)
Top cover
Steering assembly
Seat assembly
LED bar (S)
Service door
Slide unit
Level adjuster
Level adjuster
Power cord
Cord box assembly
Rear door
Rainbow PC board
(monitor side)
Title panel
LED bar (L)
Rainbow PC board
(seat)

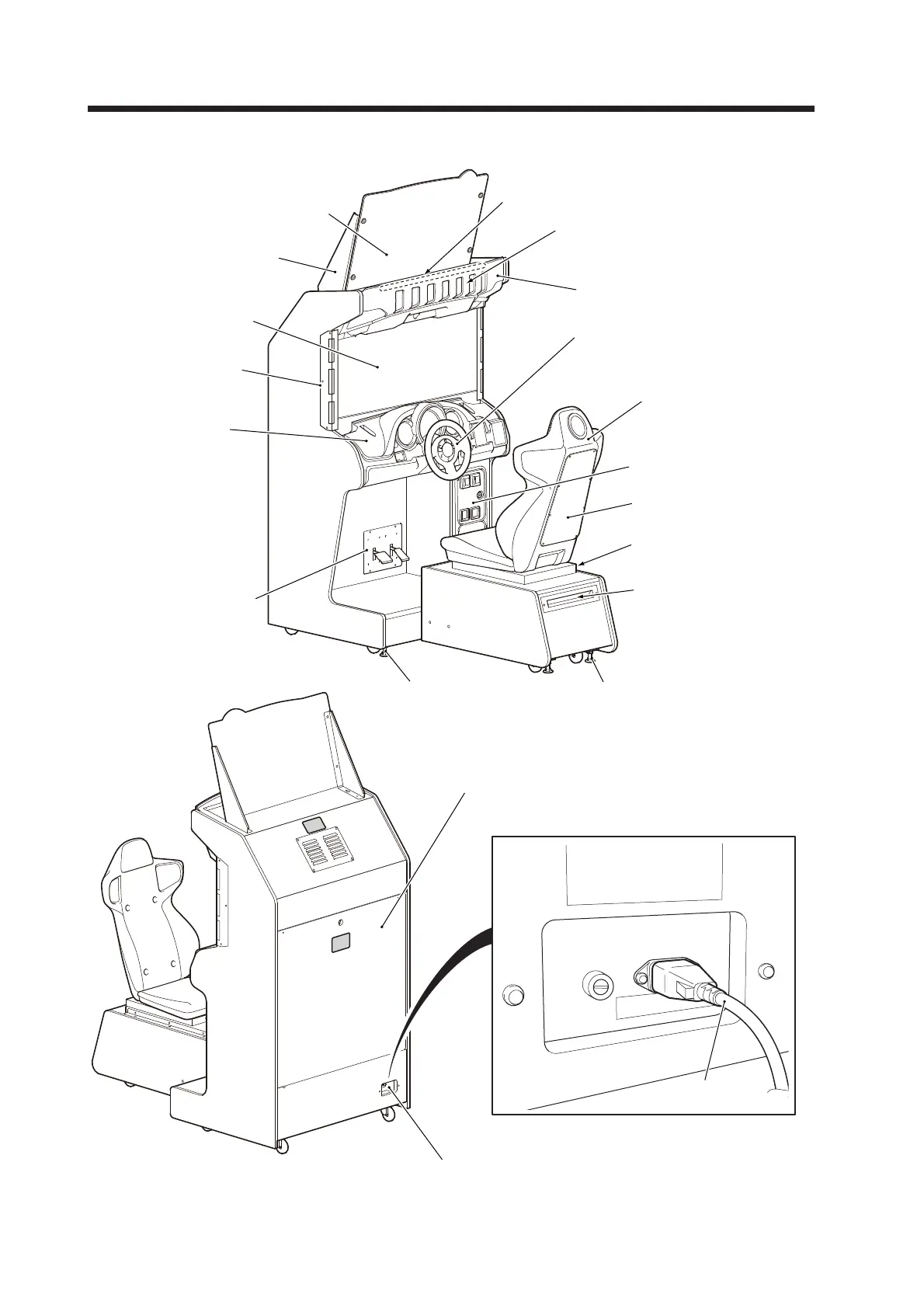

4. Overall Structure (Part Names)
Front
Rear
