maintenance

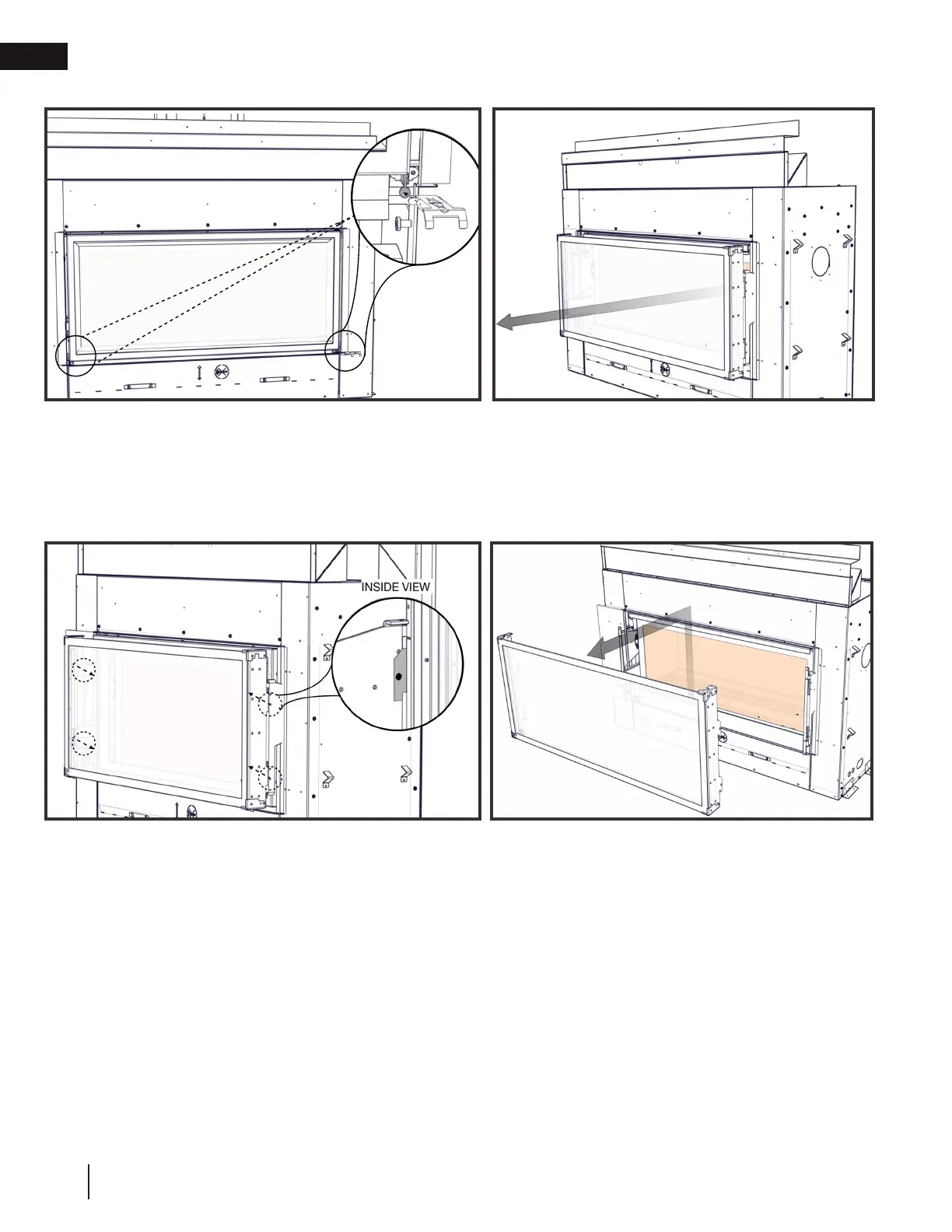

To remove GGA-1
1. To open, release the latches from the GGA-1 using the
release tool. Push the release tool against bottom of latch
until it disengages from GGA-1. Pull gently on GGA-1 while
releasing the latch.
2. Pull both sides of GGA-1 keeping it parallel to the
appliance.
3. Remove the screws and washers securing the GGA-1 to the
GGA-1 slider brackets (1 per corner, 4 total).
4. Carefully lift the GGA-1 up and off the GGA-1 slider
brackets (2 per side). Set assembly on a clean, soft
surface. Care must be taken to protect the edges of
glass.
