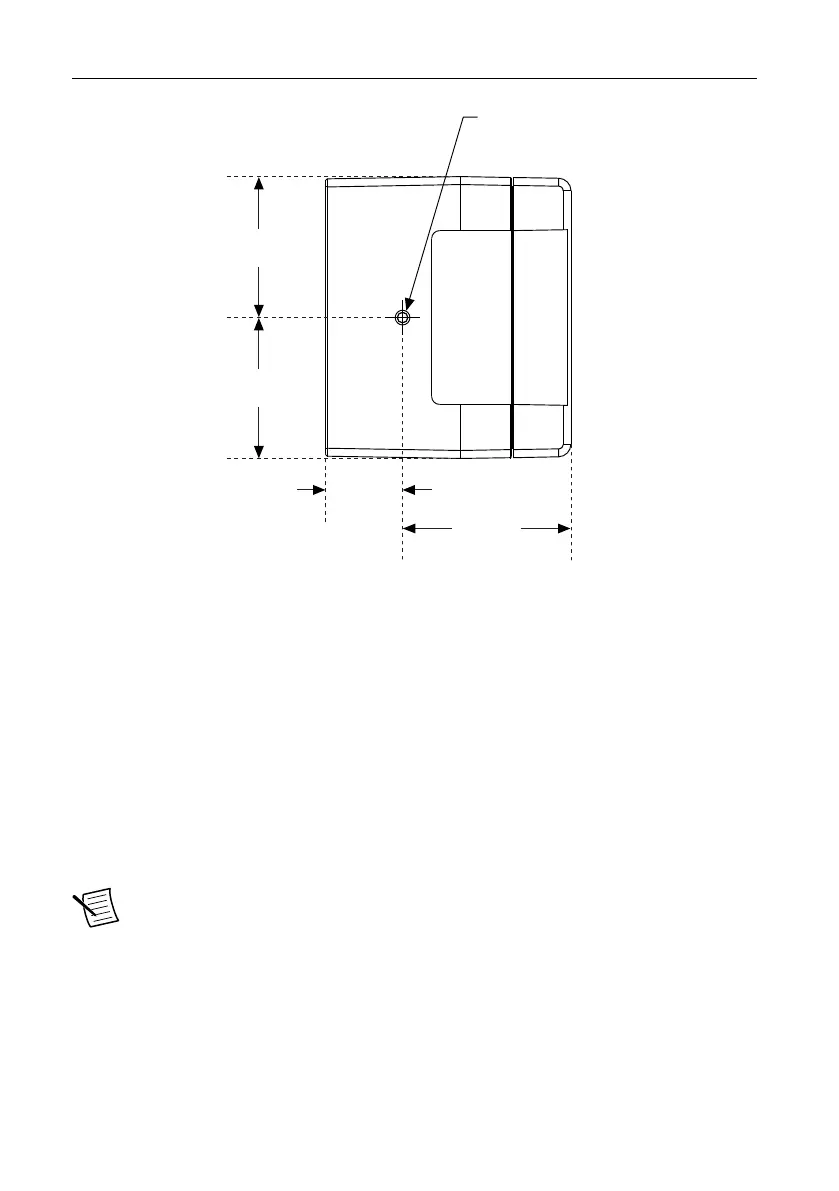

Figure 13. cRIO-905x Side Dimensions
44.81 mm
(1.764 in.)
44.81 mm
(1.764 in.)
53.52 mm
(2.107 in.)
24.35 mm
(0.959 in.)
M4 x 0.7 Thread
5.00 mm (0.20 in.)
Max Insertion Depth
Front Mounting on a Flat Surface
What to Use
cRIO-905x
M4 screws, user-provided, length dependent on application
x2 for 4-slot models
x3 for 8-slot models
What to Do
Complete the following steps to front mount the cRIO-905x directly on a flat, rigid surface
using the mounting holes.
Note NI recommends surface mounting your system in environments with high
shock and vibration.
NI cRIO-905x User Manual | © National Instruments | 23
