Panel Mounting Dimensions

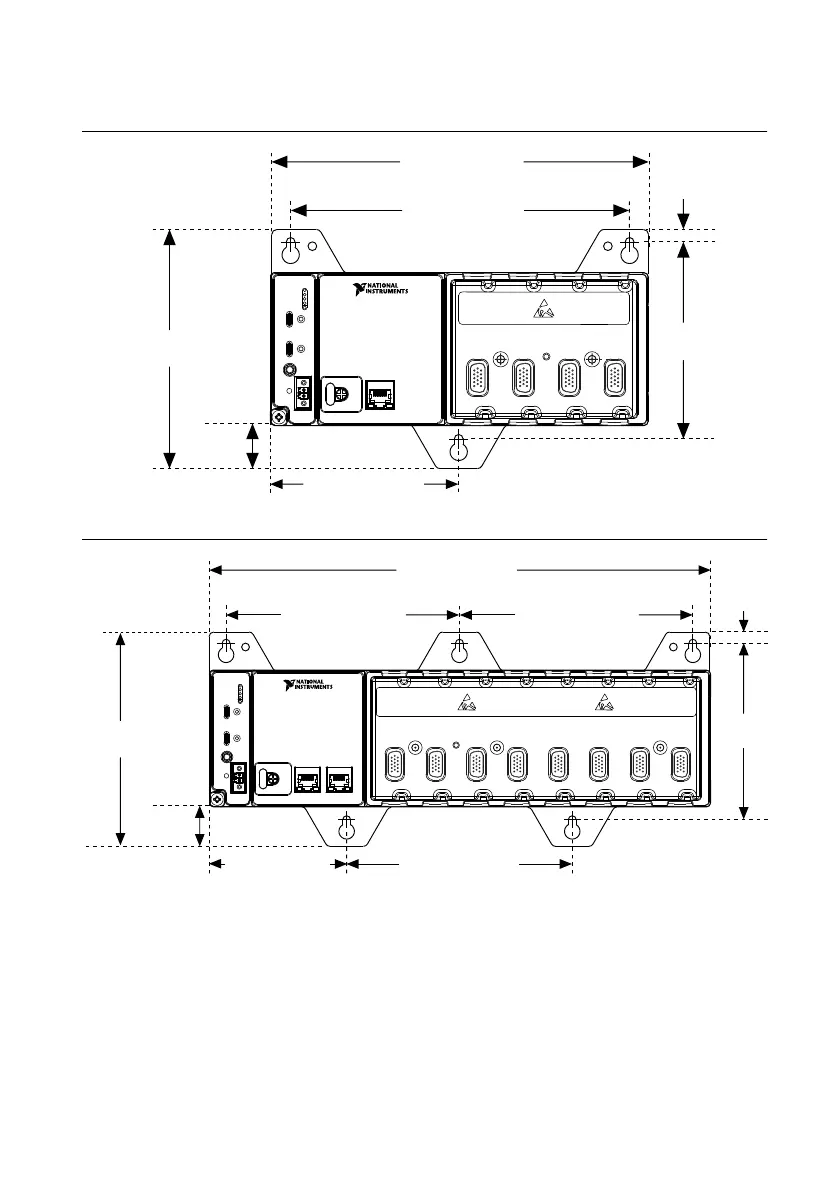

Figure 24. 4-slot cRIO-905x Panel Mounting Dimensions
108.8 mm (4.26 in.)
217.7 mm (8.57 in.)
199.4 mm (7.85 in.)
138.9 mm
(5.47 in.)
114.3 mm
(4.50 in.)
7.2 mm
(0.29 in.)
25.4 mm
(1.00 in.)
1 2 3
4
Figure 25. 8-slot cRIO-905x Panel Mounting Dimensions
89.9 mm (3.54 in.)
147.3 mm (5.80 in.)
327 mm (12.88 in.)
152.4 mm (6.00 in.) 152.4 mm (6.00 in.)
138.9 mm
(5.47 in.)
114.3 mm
(4.50 in.)
7.2 mm
(0.29 in.)
25.4 mm
(1.00 in.)
1 2 3
4 5 6 7 8
30 | ni.com | NI cRIO-905x User Manual
