National Instruments NI cRIO-905x Series User Manual

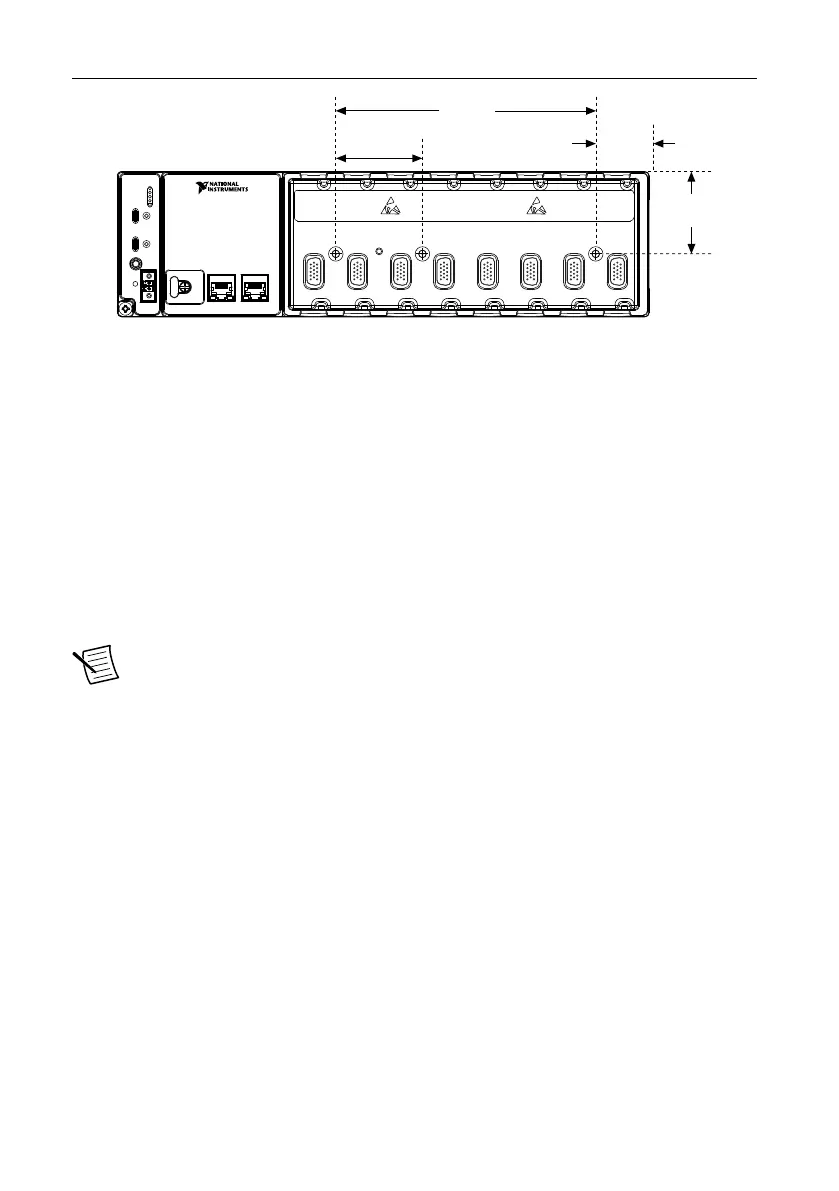

Figure 17. 8-slot cRIO-905x Front Dimensions
1 2 3
4 5 6 7 8
47.2 mm
(1.86 in.)
141.7 mm
(5.58 in.)
30.8 mm
(1.21 in.)
47.0 mm
(1.85 in.)
Rear Mounting on a Flat Surface
What to Use
• cRIO-905x
• M4 screws, user provided, which must not exceed 8 mm of insertion into the cRIO-905x
– x4 for 4-slot models
– x6 for 8-slot models
What to Do
Complete the following steps to rear mount the cRIO-905x directly on a flat, rigid surface
using the mounting holes.
Note NI recommends surface mounting your system in environments with high
shock and vibration.
NI cRIO-905x User Manual | © National Instruments | 25
