Mounting on a Rack
You can use the following rack mount kits to mount the controller and other DIN rail-
mountable equipment on a standard 482.6 mm (19 in.) rack.
• Industrial Rack Mount Kit, 786411-01
• NI Rack-Mounting Kit, 781989-01
Note You must use the appropriate NI DIN rail mounting kit for your model in
addition to a rack-mounting kit.
Mounting the Device on a Desktop
What to Use
• cRIO-905x
• Screwdriver, Phillips #1
• Screwdriver, Phillips #2
• Screwdriver, Torx T10
• NI desktop mounting kit, 779473-01

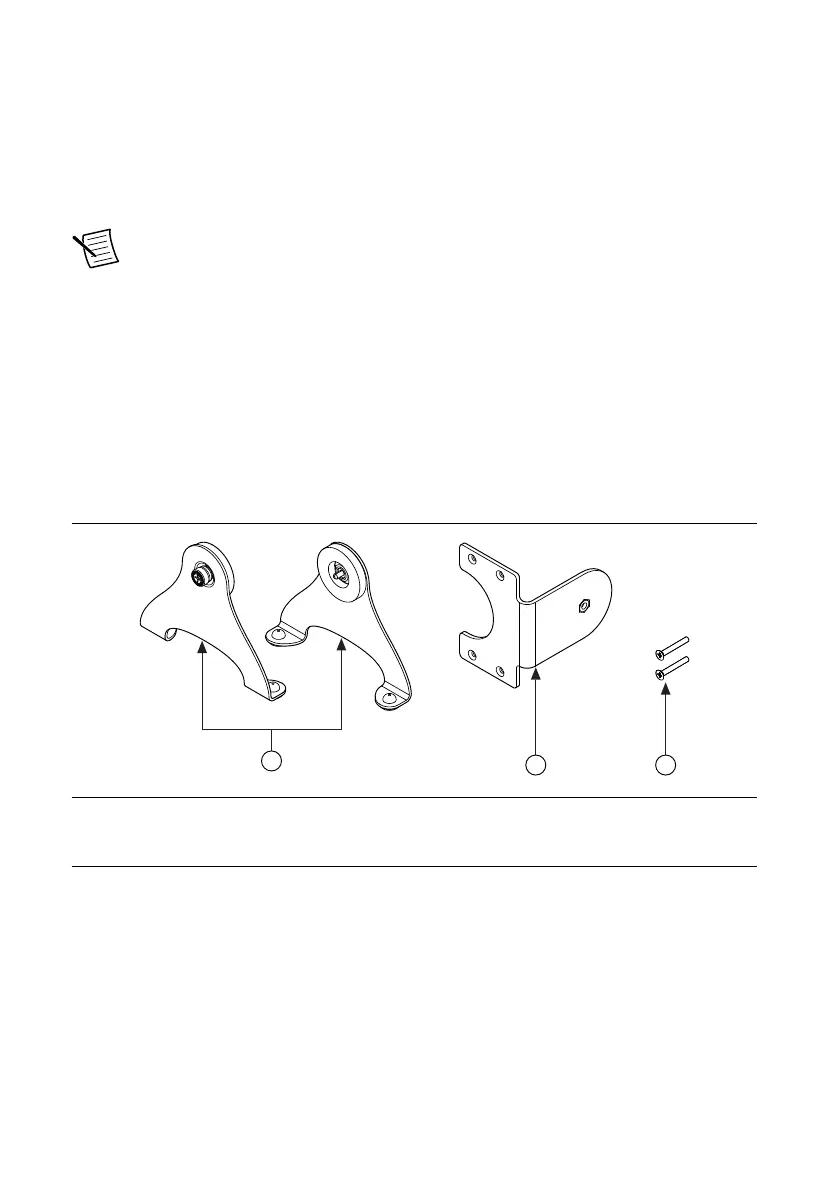

Figure 29. Components of the NI Desktop Mount Kit
1. Desktop mounting brackets (x2)
2. Adapter bracket
3. M3 x 35 screws (x2)
What to Do
Complete the following steps to mount the cRIO-905x on a desktop.
NI cRIO-905x User Manual | © National Instruments | 33
