National Instruments NI cRIO-905x Series User Manual

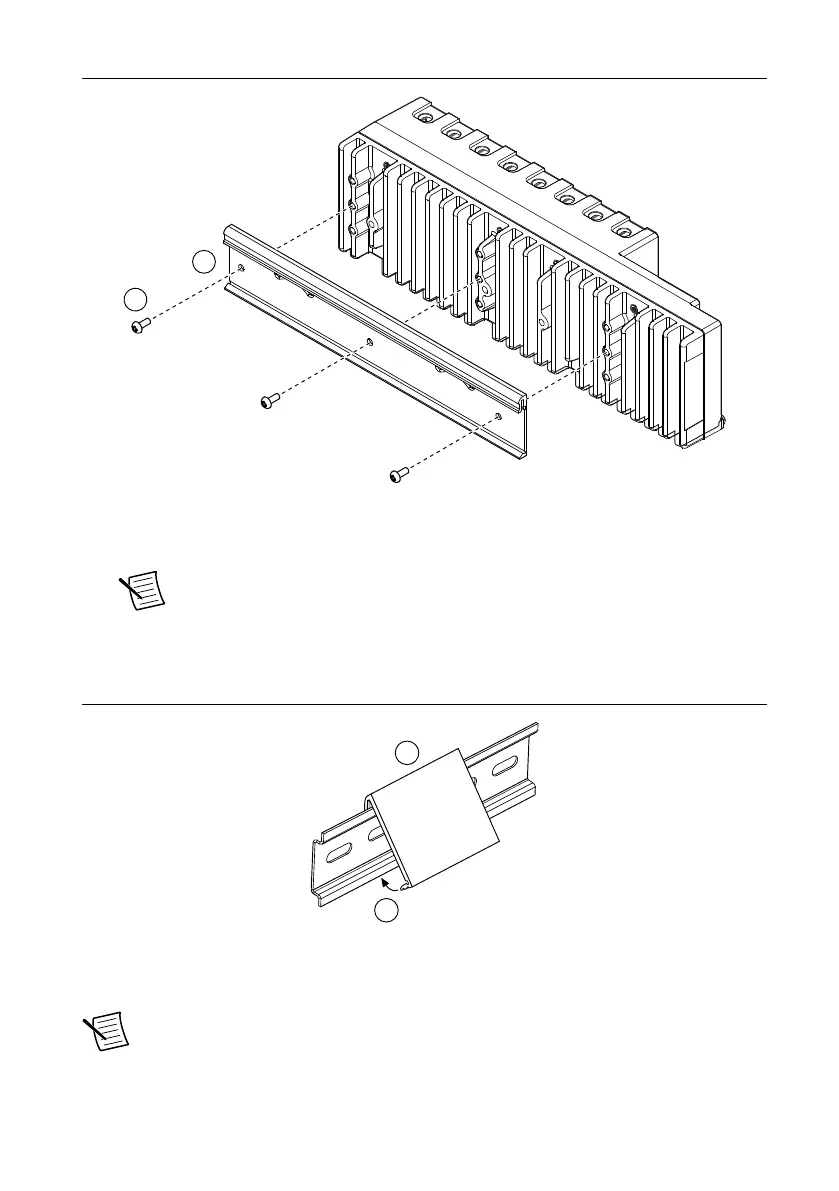

Figure 27. Mounting the 8-slot cRIO-905x on a DIN Rail
1
2
1. Align the DIN rail clip with the mounting holes on the rear of the cRIO-905x.
2. Fasten the DIN rail clip to the cRIO-905x using the screwdriver and M4 x 10 screws.
Note You must use the screws provided with the NI DIN rail kit because they
are the correct depth and thread for the DIN rail clip. Tighten the screws to a
torque of 1.3 N · m (11.5 lb · in.).
Clipping the Controller on a DIN Rail
Figure 28. Clipping the Controller on a DIN Rail
1
2
1. Latch the spring side (top) of the DIN clip onto the top edge of the DIN rail.
2. Press down firmly to compress the spring until the clip locks in place on the DIN rail.
Note Ensure that no C Series modules are in the controller before removing it from
the DIN rail.
32 | ni.com | NI cRIO-905x User Manual
