National Instruments NI cRIO-905x Series User Manual

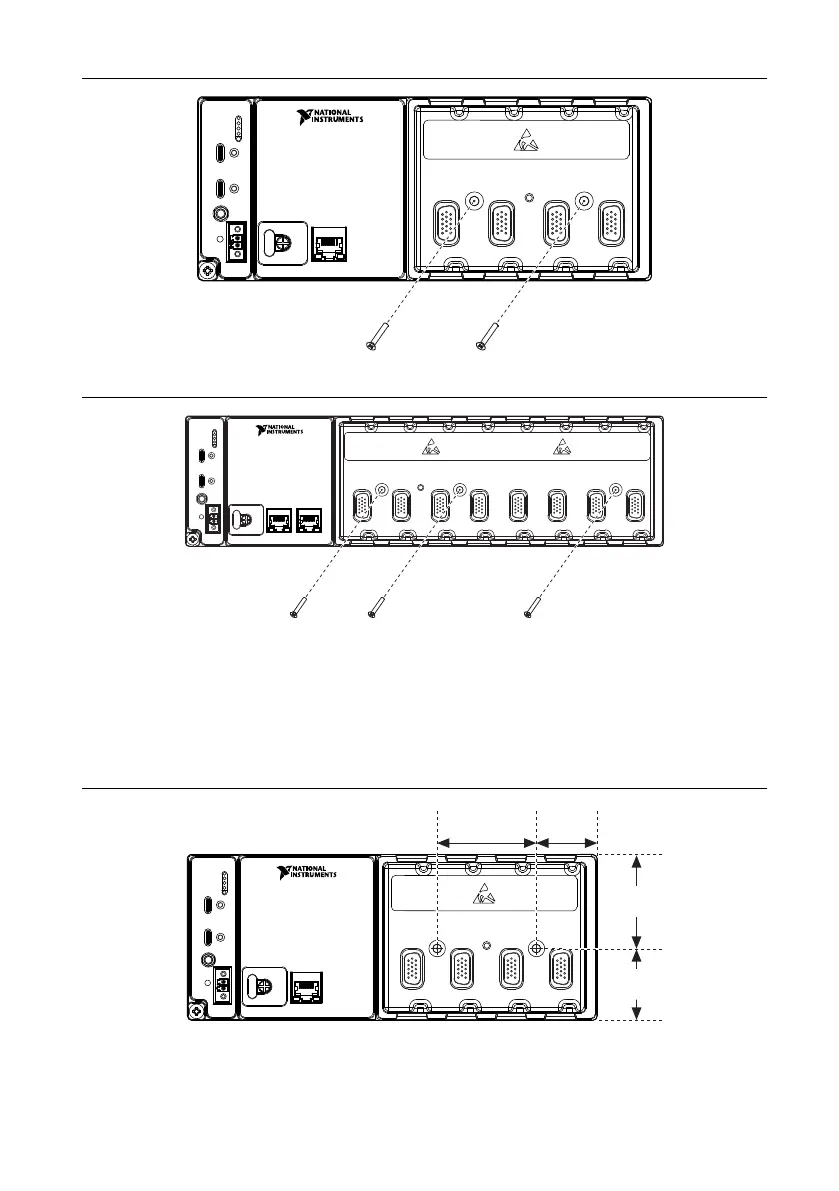

Figure 14. Front Mounting the 4-slot cRIO-905x Directly on a Flat Surface
1 2 3
4
Figure 15. Front Mounting the 8-slot cRIO-905x Directly on a Flat Surface
1 2 3
4 5 6 7 8
1. Prepare the surface for mounting the cRIO-905x using the Surface Mounting Dimensions.
2. Align the cRIO-905x on the surface.
3. Fasten the cRIO-905x to the surface using the M4 screws appropriate for the surface.
Surface Mounting Front Dimensions
Figure 16. 4-slot cRIO-905x Front Dimensions
1 2 3
4
41.1 mm
(1.62 in.)
47.0 mm
(1.85 in.)
47.2 mm
(1.86 in.)
30.6 mm
(1.20 in.)
