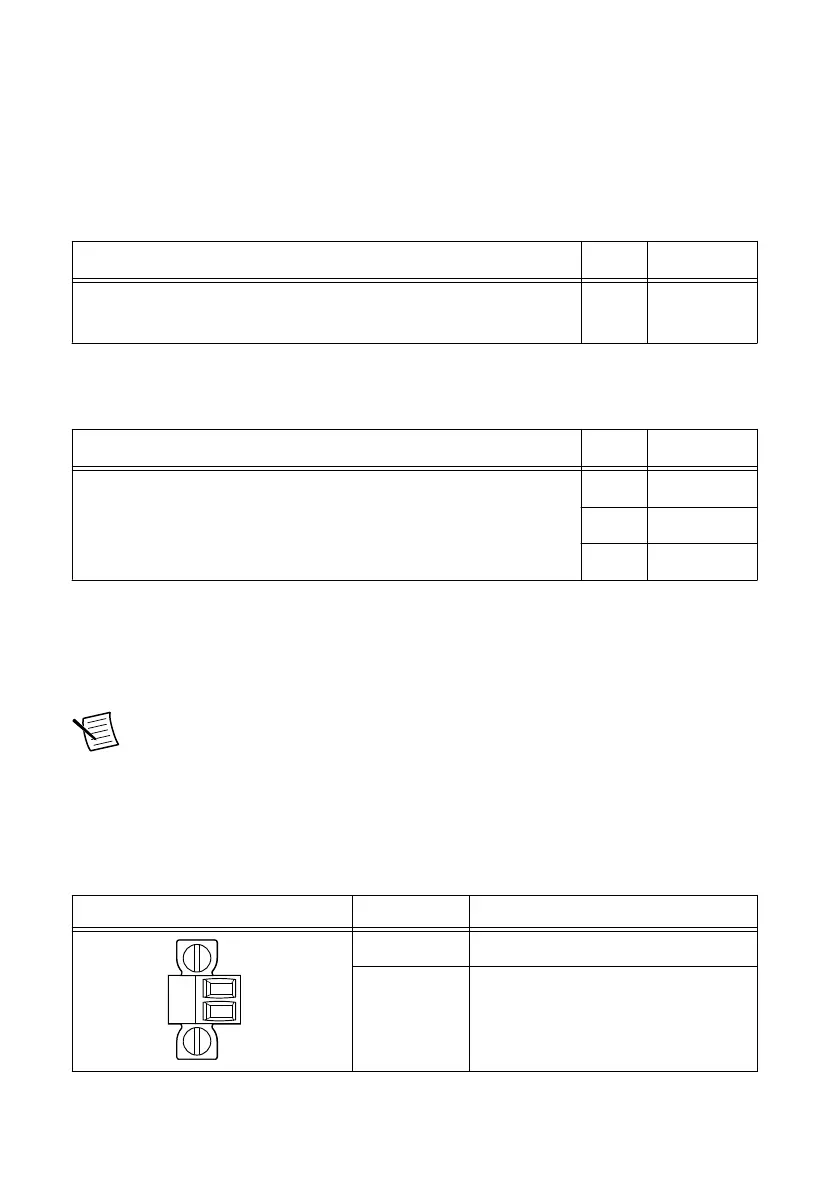

Page #7 background imageLoading...
Page #7 background image
USB 3.1 Type-C Host Port
The USB host port on the cRIO-905x support common USB mass-storage devices such as
USB Flash drives, USB-to-IDE adapters, keyboards, mice, and USB cameras.
The following NI USB Type-C adapters are available for the cRIO-905x.
Table 2. NI USB Type-C Adapters for cRIO-905x
Cable Length Part Number
USB Cable with Retention, Type-C Male to Type-A Female, USB
3.1, 3A
0.5 m 143555-0R5
The following NI cables with retention are available for use with the cRIO-905x.
Table 3. NI USB Cables with Retention
Cable Length Part Number
USB Cable with Retention, Type-C Male to Type-C Male, USB 3.1,
3A
0.3 m 143556-0R3
1 m 143556-01
2 m 143556-02
PFI 0
The Programmable Function Interface (PFI) terminal is a SMB connector. You can configure
the PFI terminal as a timing input or timing output signal for AI, AO, DI, DO, or counter/timer
functions.
Note The PFI 0 terminal can only be used while the module is in the Real Time
programmatic mode. For more information about programming modes, refer to
Choosing Your Programming Mode.
Power Connector
The cRIO-905x has a power connector to which you can connect a power supply.
Table 4. Power Connector Pinout
Pinout Pin Description
V
C
V Power input
C Common
NI cRIO-905x User Manual | © National Instruments | 7
