National Instruments NI cRIO-905x Series User Manual

Table 22. Finite Implicit Buffered Pulse Train Generation
Sample Idle Ticks Active Ticks
1 2 2
2 3 4
3 2 2

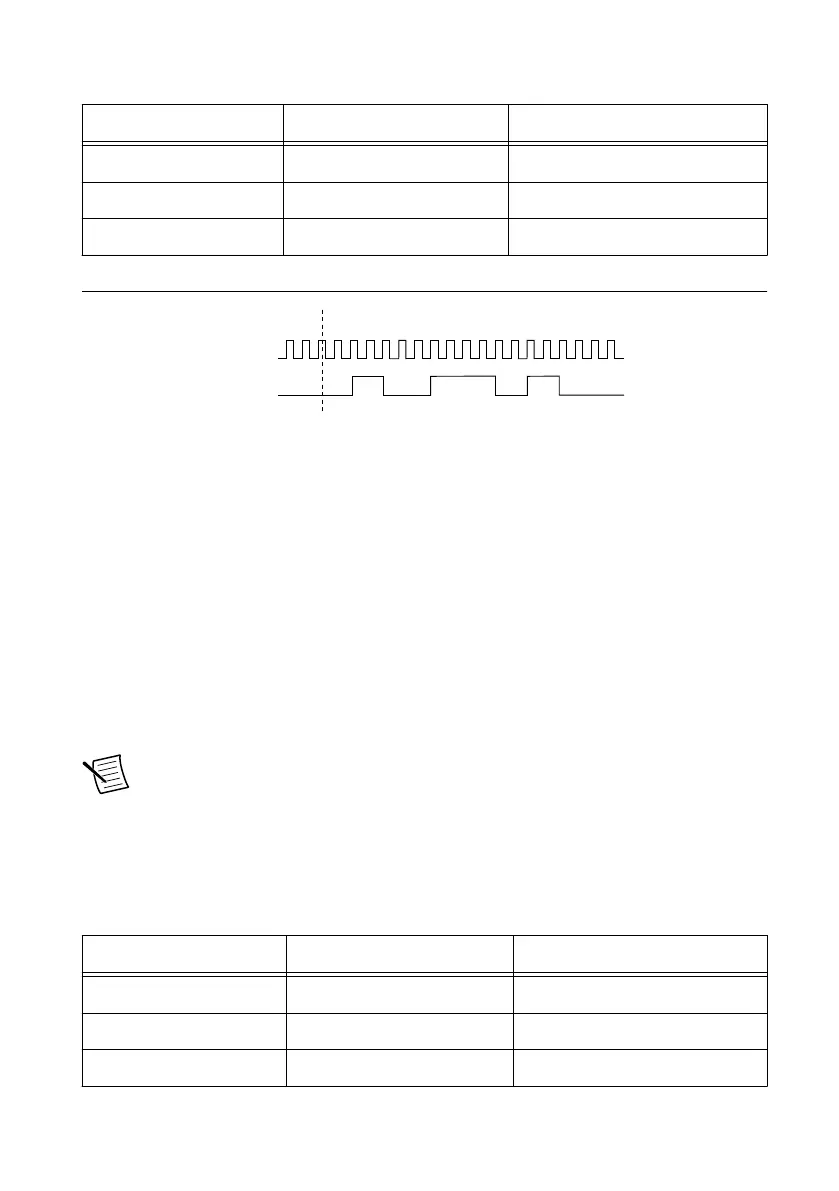

Figure 81. Finite Implicit Buffered Pulse Train Generation
SOURCE
OUT
Counter Armed
2
2 3 4 2
2
Continuous Buffered Implicit Pulse Train Generation
This function generates a continuous train of pulses with variable idle and active times. Instead
of generating a set number of data samples and stopping, a continuous generation continues
until you stop the operation. Each point you write generates a single pulse. All points are
generated back to back to create a user defined pulse train.
Finite Buffered Sample Clocked Pulse Train Generation
This function generates a predetermined number of pulse train updates. Each point you write
defines pulse specifications that are updated with each sample clock. When a sample clock
occurs, the current pulse (idle followed by active) finishes generation and the next pulse
updates with the next sample specifications.
Note When the last sample is generated, the pulse train continues to generate with
these specifications until the task is stopped.
The following table and figure detail a finite sample clocked generation of three samples
where the pulse specifications from the create channel are two ticks idle, two ticks active, and
three ticks initial delay.
Table 23. Finite Buffered Sample Clocked Pulse Train Generation
Sample Idle Ticks Active Ticks
1 3 3
2 2 2
3 3 3
92 | ni.com | NI cRIO-905x User Manual
