• NI panel mounting kit for 4-slot controllers, 157253-01
– Panel mounting plate
– M4 x 10 screws (x4)
• NI panel mounting kit for 8-slot controllers, 157267-01
– Panel mounting plate
– M4 x 10 screws (x6)
What to Do
Complete the following steps to mount the cRIO-905x on a panel.

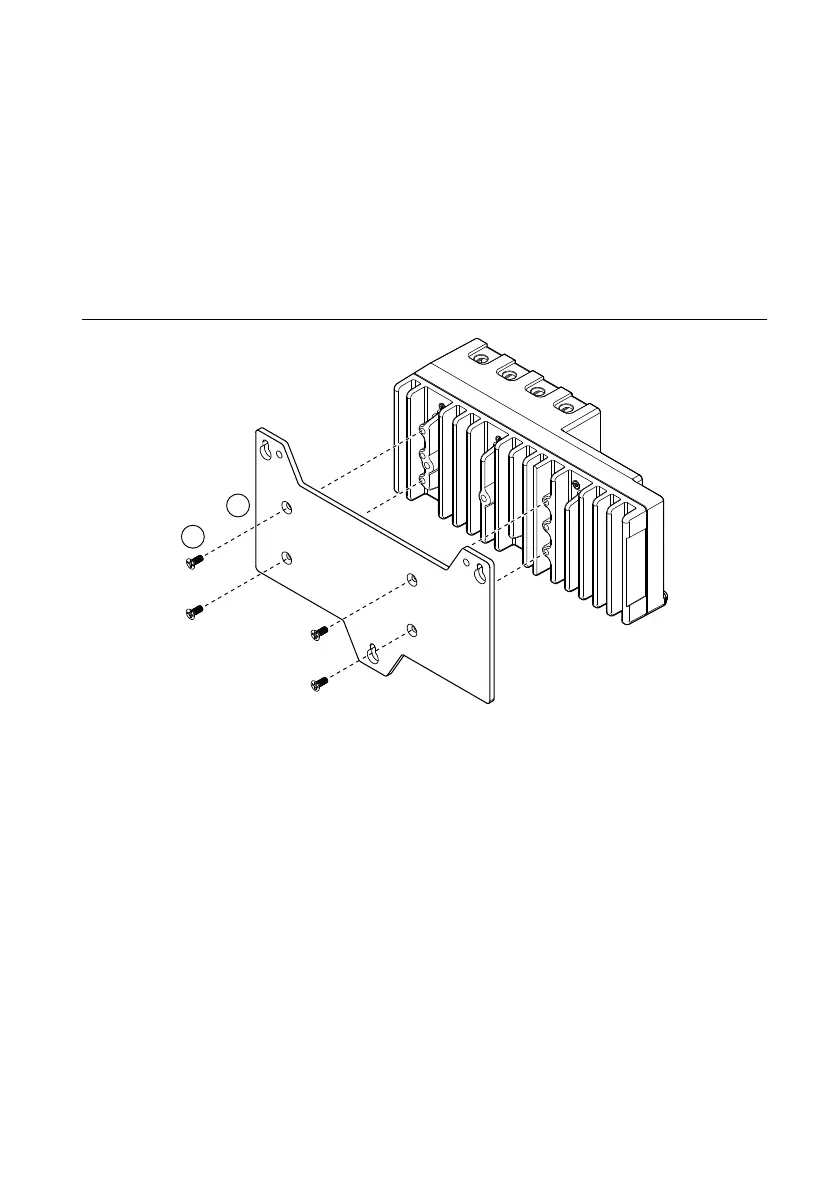

Figure 22. Mounting the 4-slot cRIO-905x on a Panel
1
2
