ASSEMBLY PROCESS

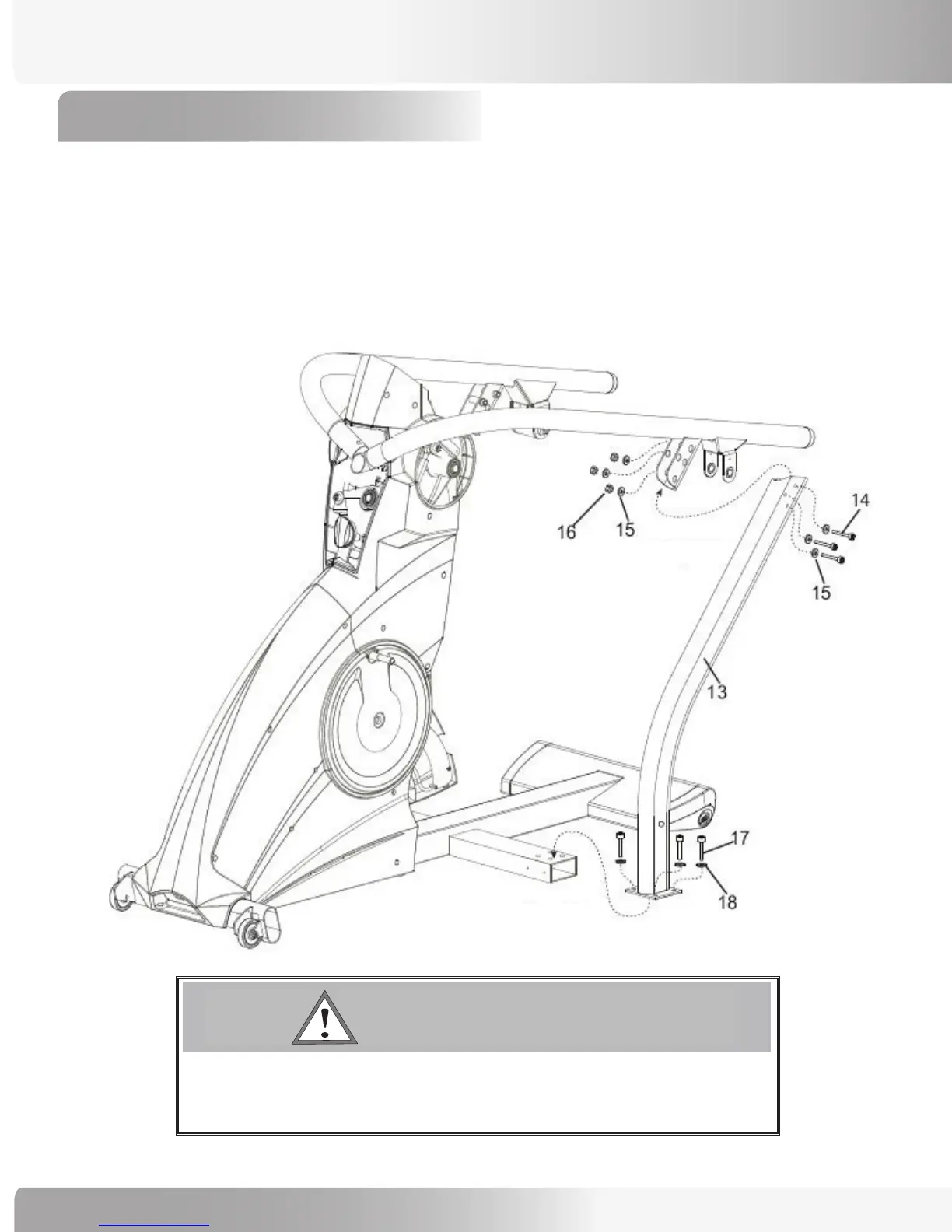

Step 4: Attach Support Uprights to Side Rails
4-1 Use (6) M10 x 65mm Allen Head Bolts (Ref #14), (12) M10 Washers (Ref #15), and (6) M10 Locking Nuts
(Ref #16) to attach the Left and right Support Uprights (#13) to the Left and Right Side Rails (#9). Leave
hardware only hand-tight.
4-2 Use (8) M12 x 70mm Allen Head Bolts (Ref #13) to the Rear Frame (#3). Tighten (6) M10 x 65mm Allen Head
bolts from Step 4-1 used to attach the Left and right Support Uprights (#13) to the Left and Right Side Rails
(#9) to 36 FT/LBS (500 KG/CM). Secure remaining hardware from Step 2 and Step 3.
Base Unit
Side Rails
Rear Frame
Support Upright
Step 4-1
Step 4-2
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
BOLT #14 MUST BE TIGHTENED TO 36 FT/LBS (500 KG/CM)
BEFORE PROCEEDING TO THE NEXT STEP.
