10
ASSEMBLY PROCESS

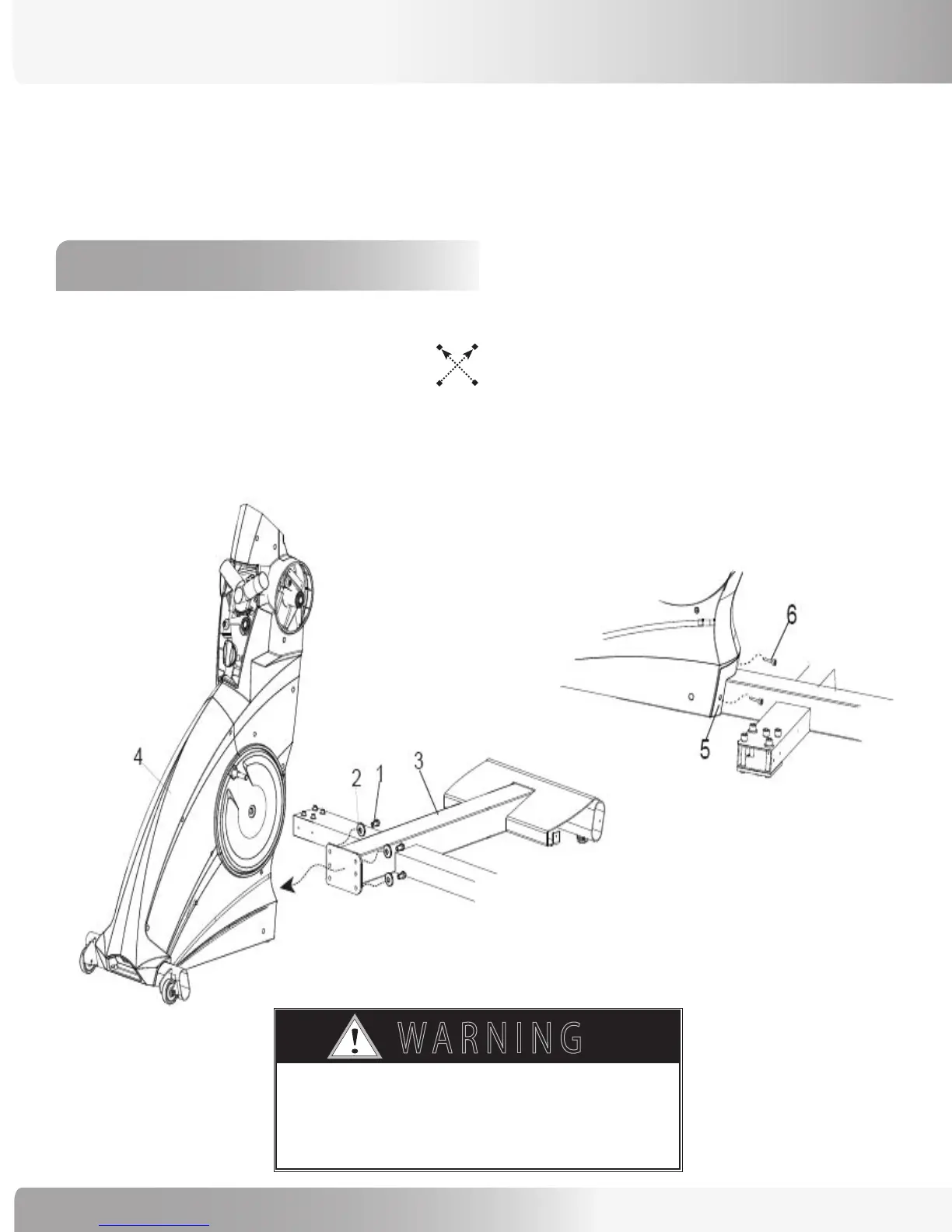

2-1 Use (4) 20mm Allen Bolts (Ref #1) and (4) 1/2” Spring Washers (Ref #2) to attach the rear frame (#3) to the
Base Unit (#4).
NOTE: Tighten bolts in a criss-cross pattern
2-2 Attach the plastic Flange Cover (#5) to the Rear Frame (#3) using (2) 15mm Phillips Head Screws (Ref #6).
NOTE: (Ref #) refers to the Hardward Reference Chart on pages 5 & 6.
Tip: Tilt the Base unit forward, about an inch, while inserting the Allen Bolts
Base Unit
Rear Frame
IT IS HIGHLY RECOMMENDED THAT YOU
DO NOT ATTEMPT TO LIFT, MOVE OR
TILT THE ELLIPTICAL MACHINE WITHOUT
HELP.
7 ! 2 . ) . '
! 4 4 % . 4 ) / .
$ ! . ' % 2
)--%$)!4%!#4)/.2%15)2%$
# ! 5 4 ) / .
1-10 With the assistance of another person lift base unit from box and set aside.
1-11 Cut strapping on Box 2.
1-12 Remove lid from top of box and set aside. Proceed to assembly instructions.
Step 2: Attach Rear Frame
