Nautilus EV716 User Manual

16
Step 9: Attach Upper Body Arms
ASSEMBLY PROCESS

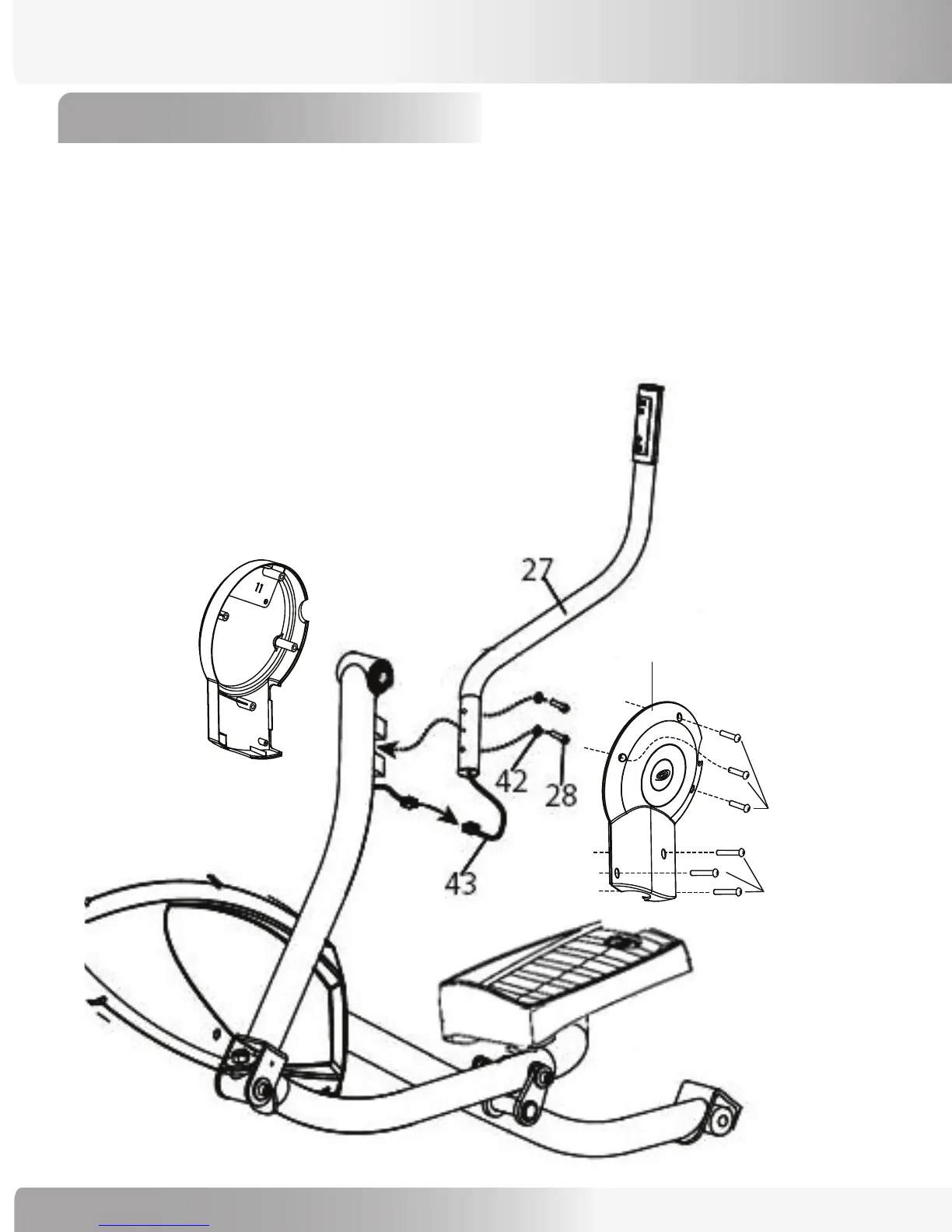

9-1 Plug the Right and Left Fingertip Control Wires (#43) into the wire coming from the Base Unit. Each handle
has its own control wire that must plug into the base unit wire. To avoid damage to the unit, do not allow
the arm to hang freely from the wiring assembly.
9-2 Use (4) M8 x 40mm Allen Head Bolts (Ref #28) and (4) M8 Spring Washers (Ref #42) to attach the Left and
Right Upper Body Arms (#27).
9-3 Use (6) 15mm Phillips Head Screws (Ref #6) and (6) 30mm Phillips Head Screws (Ref #30) to attach the Left
and Right Arm Covers (#29).
29
6
30
