1
4

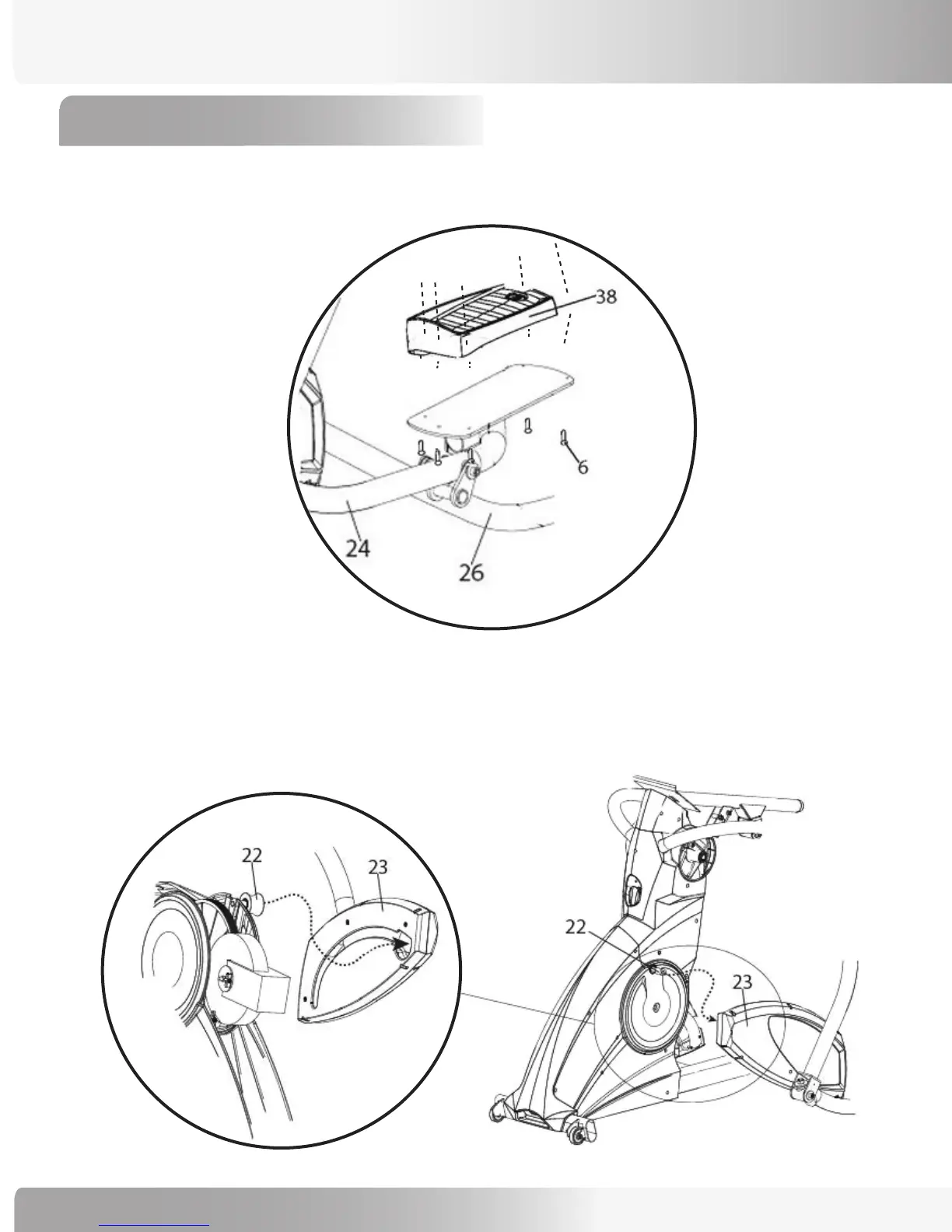

Step 7: Attach Pod Assembly
ASSEMBL
Y PROCESS
7-2
Feed the
Left Side
Roller
Wheel (#22)
through
the round
opening
in the
front
of the
Pod
Assembly (#23).
The
Pod
Assembly may
rest on
the
ground before
moving
to Step
7.
Do not
yet
install Right
Side
Pod Assembly
.
7-1
Use (5)
15mm Phillips
Head
Screw (Ref
#6)
with blue
loctitite
pre-applied to
install
left Foot
Plate
(#38) on
the
left
Sub Pedal
Arm.
13
15
Table of Contents
Important Safety Precautions
2
Required Assembly Tools
3
Hardware Contents
3
Item Description
3
Reference Chart
4
Actual Size Hardware Reference Chart
4
Torque Specifications
6
Front View
6
Rear View
7
Assembly Process
8
Console Box
8
Attach Rear Frame
10
Attach Side Rails
11
Attach Support Uprights to Side Rails
12
Attach Linkage Cover
13
Attach Swing Arms
13
Attach Pod Assembly
14
Attach Connecting Arm Pivots
15
Attach Upper Body Arms
16
Inspection of Assembly
17
Install Pivot Covers
18
Install Pivot Covers and End Caps
19
Install Computer Console
20
Install Power Cord
21
Serial Number Information
21
Important CONTACT NUMBERS
22
