Nautilus® Pro Series Elliptical Assembly Manual
ASSEMBLY PROCESS

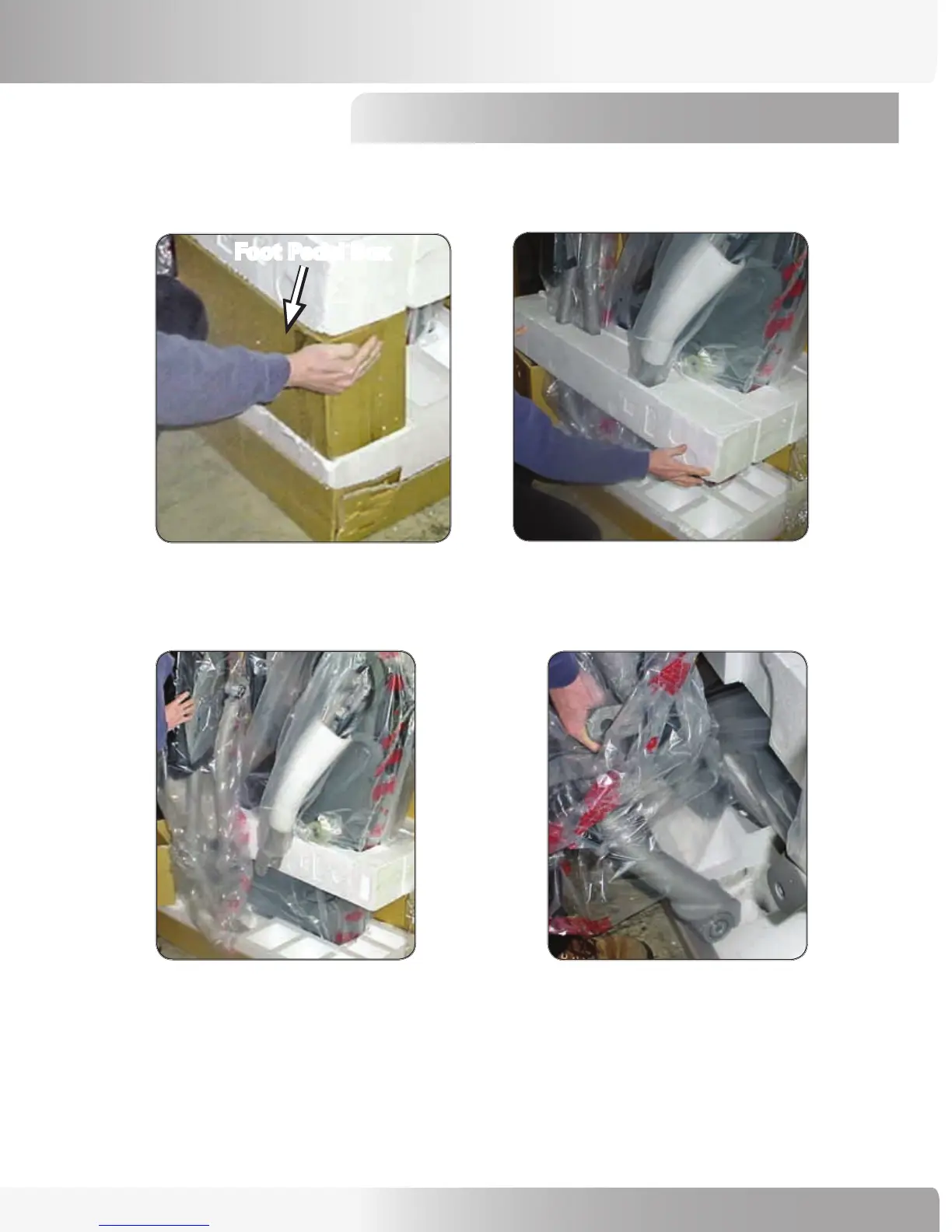

1-5 Cut tape holding styrofoam together and remove the side foot pedal box (Figure 5)
1-6 Gently angle styrofoam downward and remove (pull down & outwards) from around pod assembly and swing
arm (Figure 6).
1-7 Remove the side pod assembly (Figures 7 & 8).
1- 8 Repeat Steps 1-5 through 1-7 on the other side.
1- 9 Remove any remaining plastic on base unit.
Step 1: Removing Elliptical from Packing/Shipping Materials
Figure 7
Figure 6
Figure 6
Figure 5
Foot Pedal Box
