Nautilus ONE User Manual

Page 24

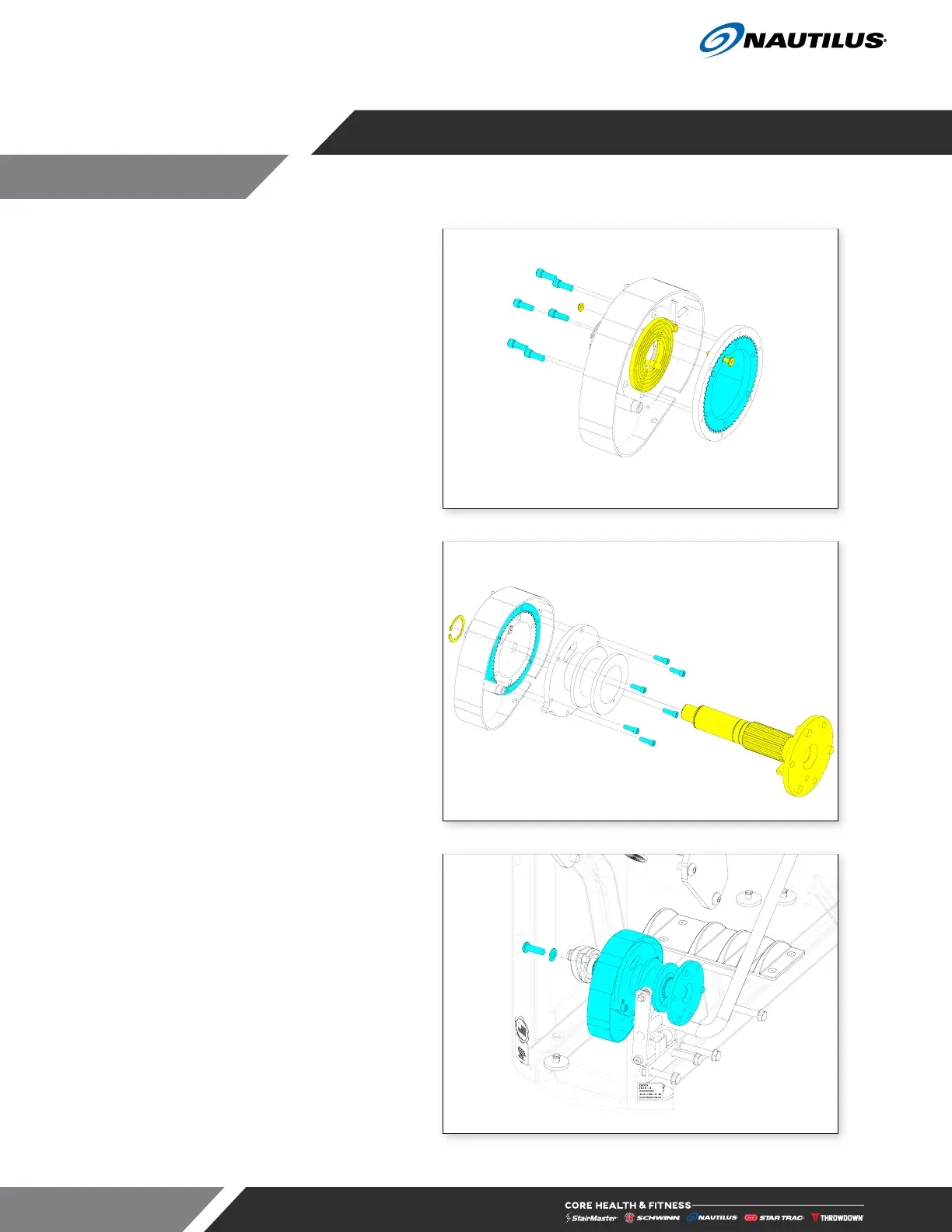

14. Assemble inner spiral spring 10-3089
with retainer 56-0371
15. Secure inner gear 56-0343 and internal
splined gear to cam with six bolts 02-
4177
16. Secure inner spiral ring to inner gear with
bolt 02-9314 to nut 03-9075
Fig. 69
17. Pass the cam shaft (yellow) through the
slide plate assembly and the cam. The
three snap rings go in the cam shaft
notches.
18. Secure slide plate assembly to cam with
six bolts 02-4175.
Fig. 70
19. Slide completed cam assembly into the
frame, and secure with bolt 01-4054 and
washer 04-5207.
Fig. 71

Nautilus ONE Specifications

General

Target Muscles	Full Body
Usage	Home
Frame Material	Steel
Type	Elliptical
User Interface	LCD
Display	LCD
Heart Rate Monitoring	Yes
Resistance System	Eddy Current Brake (ECB)
