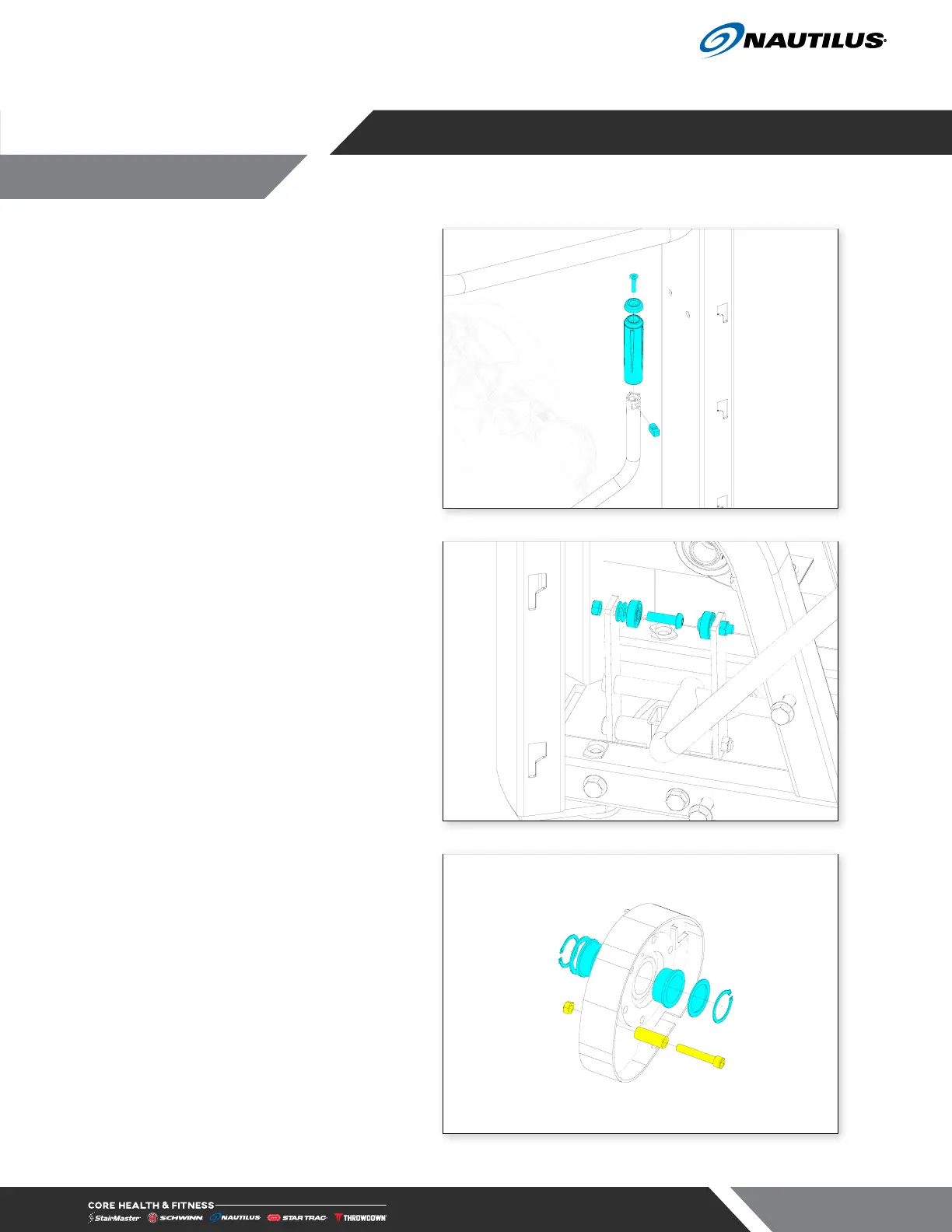

9. Assemble lever handle
Fig. 66
10. Attach roller bearings 56-0349 to handle
weldment with two 04-5207 washers, a
01-4054 bolt and a 03-1035 nut per side
Fig. 67
11. Assemble the RL Cam
12. On each side of the cam insert a 45-
1056 flange, 04-5055 washer and 06-
8257 snap ring (blue)
13. Install the stop 56-0370 with bolt 02-
4084 and nut 03-1085 (yellow).
Fig. 68
