Nautilus T616 Assembly Manual

10

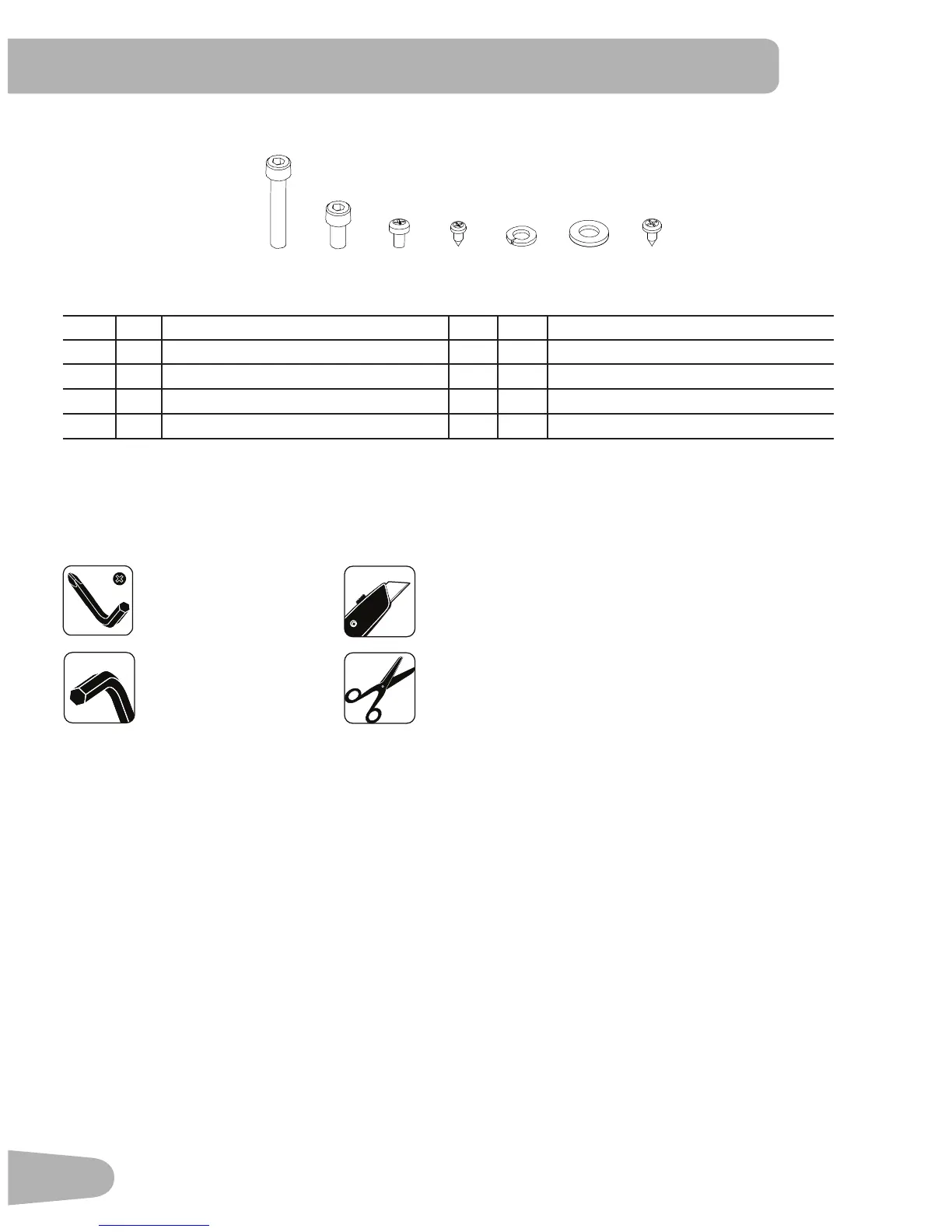

HardWare / Tools / before assembly
Tools
Included Not Included
#2
6mm
(recommended)
Item Qty Description Item Qty Description
A 4
SocketHeadHexScrew,M8x50 E
12
LockWasher,M8
B 8 SocketHeadHexScrew,M8x16
F
12
FlatWasher,M8
C
12
PhillipsHeadScrew,M5x14
G
10
SelfTappingScrew,M4.2x16
D
4
SelfTappingScrew,M3.9x16
A B D
C E F
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard,levelsurface.Allowaworkoutareaofaminimum83.2”x156.2”(211.3cmx396.7cm).Besurethattheworkout
spaceyouareutilizinghasadequateheightclearance,takingintoconsiderationtheheightoftheuserandthemaximum
incline of the machine.
Basic Assembly Tips
Followthesebasicpointswhenyouassembleyourmachine:
• Readandunderstandthe“ImportantSafetyInstructions”beforeassembly.
• Collect all the pieces necessary for each assembly step.
• Usingtherecommendedwrenches,turntheboltsandnutstotheright(clockwise)totighten,andtheleft(counterclock-
wise)toloosen,unlessinstructedotherwise.
• Whenattaching2pieces,lightlyliftandlookthroughtheboltholestohelpinserttheboltthroughtheholes.
• Theassemblycanrequire2people.
6mm
G

Nautilus T616 Specifications

General

Maximum speed	19.3 km/h
Number of programs	26
Maximum user weight	136 kg
Built-in display	Yes

Weight and Dimensions

Depth	1960 mm
Width	894 mm
Height	1463 mm
Weight	97500 g
Running area (W x L)	508 x 1524 mm
