Nautilus T616 Assembly Manual

25

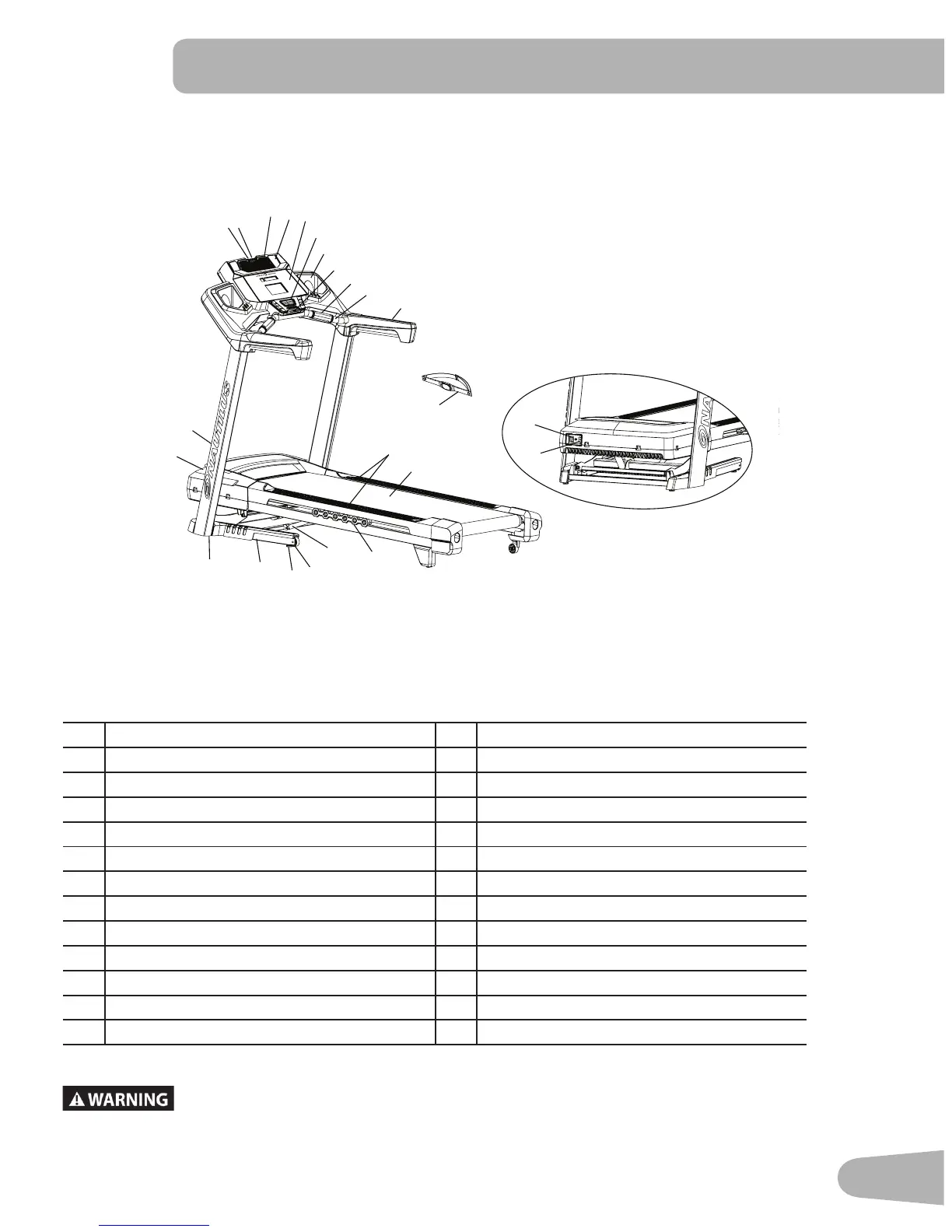

feaTures
A USBPort N WalkingBeltandDeck
B MP3Input O Dampener
C Media Tray P HydraulicLift
D Speaker Q Transport Wheel
E Console R Leveler
F Fan S Base
G Storage Tray T Motor Cover
H EmergencySafetyKeyPort U Uprights
I ContactHeartRate(CHR)Sensors V Power Switch
J ErgoBar W ACInlet
K Handlebar X TelemetryHeartRate(HR)Receiver(notshown)
L HeartRateChestStrap Y Bluetooth
®
SmartConnectivity(notshown)
M Side Foot Support Rails Z MediaCable(notshown)
Theheartratedisplayedisanapproximationandshouldbeusedforreferenceonly.Overexercisingmay
resultinseriousinjuryordeath.Ifyoufeelfaintstopexercisingimmediately.
V
W
A
B
F
E
C
G
I
J
H
K
P
Q
R
R
S
U
M
N
T
L
D
O

Nautilus T616 Specifications

General

Maximum speed	19.3 km/h
Number of programs	26
Maximum user weight	136 kg
Built-in display	Yes

Weight and Dimensions

Depth	1960 mm
Width	894 mm
Height	1463 mm
Weight	97500 g
Running area (W x L)	508 x 1524 mm
