16
6
8

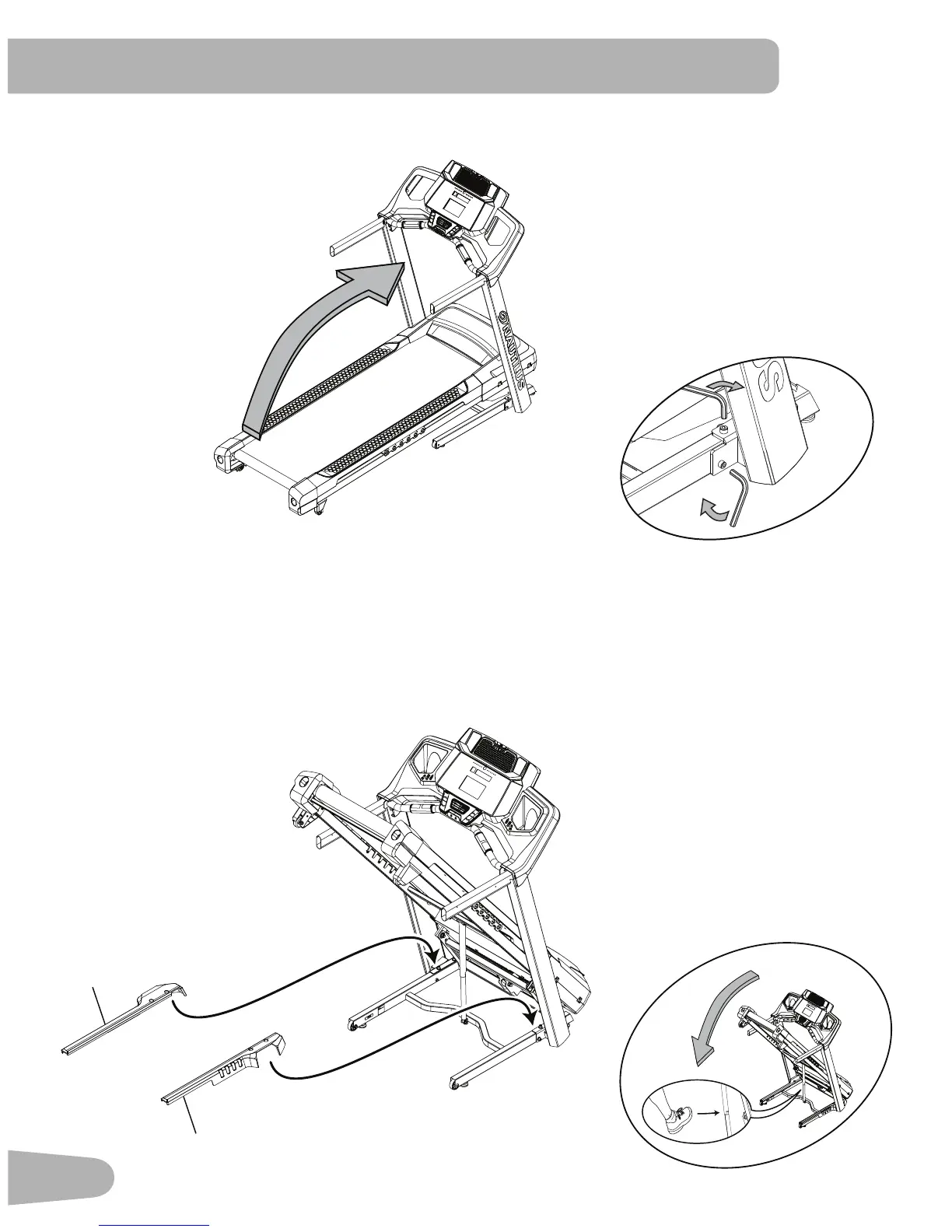

6. Fold the Walking Deck and tighten ALL Hardware from previous steps
7. Place the Base Shrouds onto the Frame Assembly, and then unfold the Walking Deck
Note: UnfoldtheWalkingDeckaftertheBaseShroudshavebeenplacedontotheFrameAssembly.TheBaseShrouds
do not use hardware or snap onto the Frame Assembly.
6
8

Other manuals for Nautilus T616

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Nautilus T616 and is the answer not in the manual?

Nautilus T616 Specifications

General IconGeneral
Maximum speed19.3 km/h
Number of programs26
Maximum user weight136 kg
Built-in displayYes
Weight and Dimensions IconWeight and Dimensions
Depth1960 mm
Width894 mm
Height1463 mm
Weight97500 g
Running area (W x L)508 x 1524 mm
