M300 Device Setup

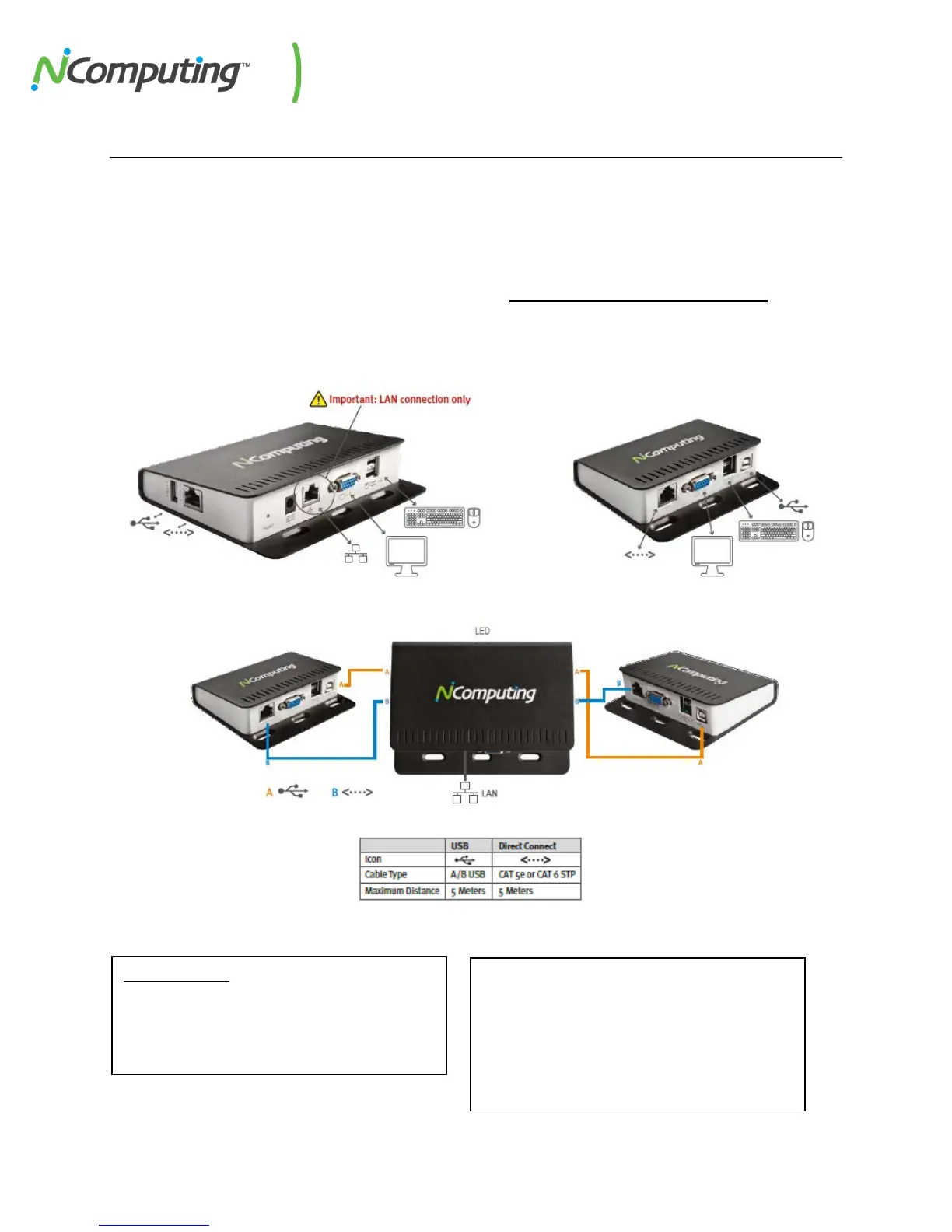

Each M300 kit includes one Large Client and two Small Clients. The Large M300 Client must be
connected to the host PC via an Ethernet switch, router, or other network connection. Each of the Small
Clients must be connected to the Large Client via Direct Connect (Ethernet) ports. If USB 2.0
functionality is required on the Small Clients, an additional USB A/B cable must be connected between
the Large and Small Clients as shown below for a total of two connections to each small client (USB A/B
+ Ethernet Direct Connect). The additional USB connection is not required for USB 1.1 functionality. USB
A/B and Ethernet cables are NOT included with the M300 kit.
Large Client: Power and LAN activity.
Small Client: Connected to Large Client.
NOTE: Verify that the intended distance
between the Small Clients and the Large
Client is within the 5 meter maximum prior
to installation. Ethernet and USB A/B cables
will need to be sized and purchased to fit
the deployment.
