NCR SelfServ 34 ATM Installation Guide
B006-6590-C000 7
Removing the ATM from its Pallet
To remove the ATM from its pallet, you will require a pair of lifting trolleys. Proceed as
follows:
1. From the underside of the pallet, use a 17 mm (11/16 in.) spanner and socket to loosen
the four bolts extending through to the bottom of the ATM.
2. Remove the four ‘C’ washers, then remove the four bolts and sleeves.

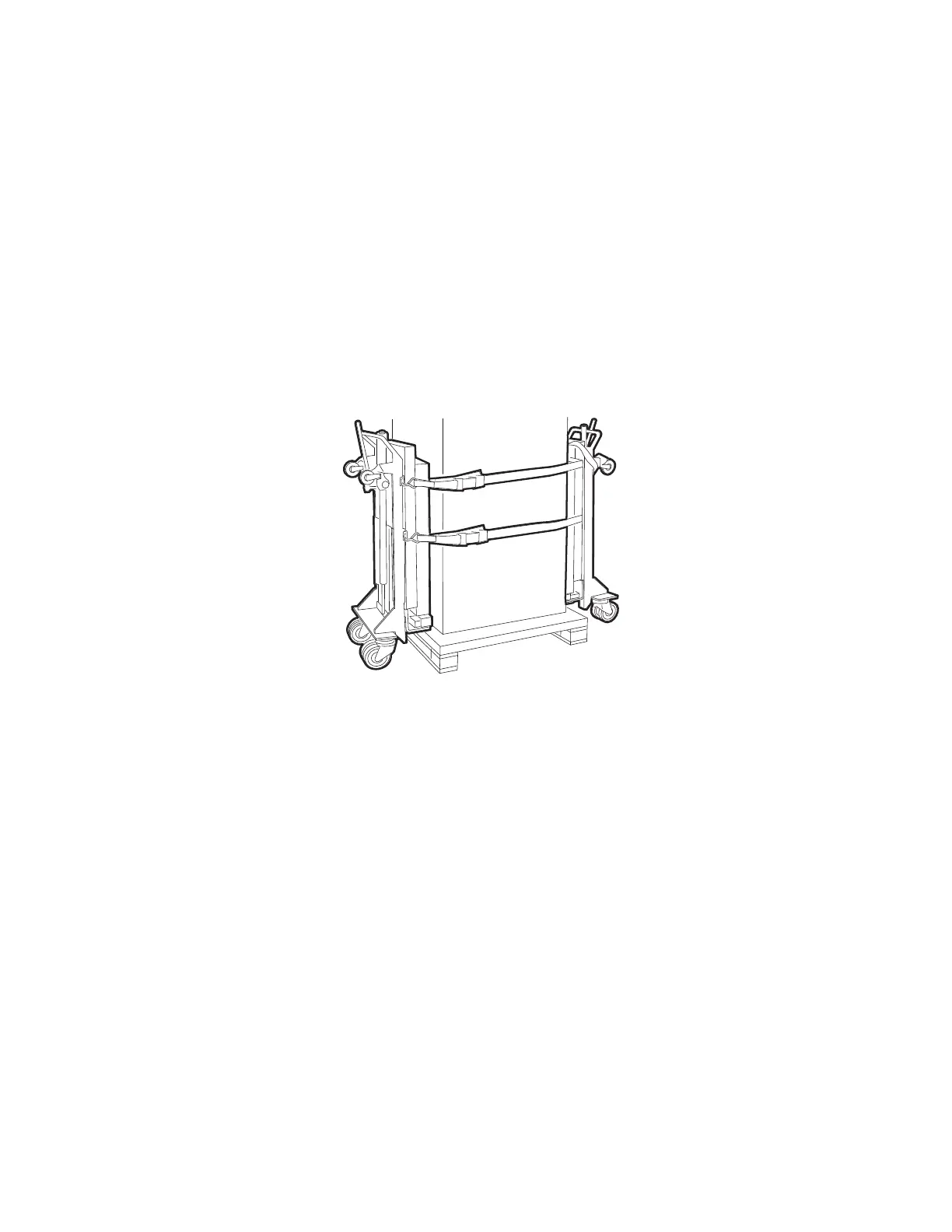

3. Position the lifting trolleys on either side of the pallet and insert the toes of the trolleys
under the ATM.
4. Strap the trolleys to the terminal, inserting packing where necessary to protect the
ATM’s paintwork and to stop the ATM from moving.
5. Pump up both trolleys to lift the ATM clear of the pallet then slide the pallet out from
under the ATM.
WARNING
Support blocks must always be used when the ATM is supported
by a lifting device and work is to be done under the ATM.
6. Move the ATM to the installation site.
7. Carefully remove the ATM from the trolleys.
CAUTION
When moving the ATM, do not tilt or apply force to the top-box as
this may damage the ATM. Any force should be applied to the lower
cabinet.
