16 EasyOne Pro™ / EasyOne Pro™ LAB

1.10 Components and Functional Description of EasyOne Pro™

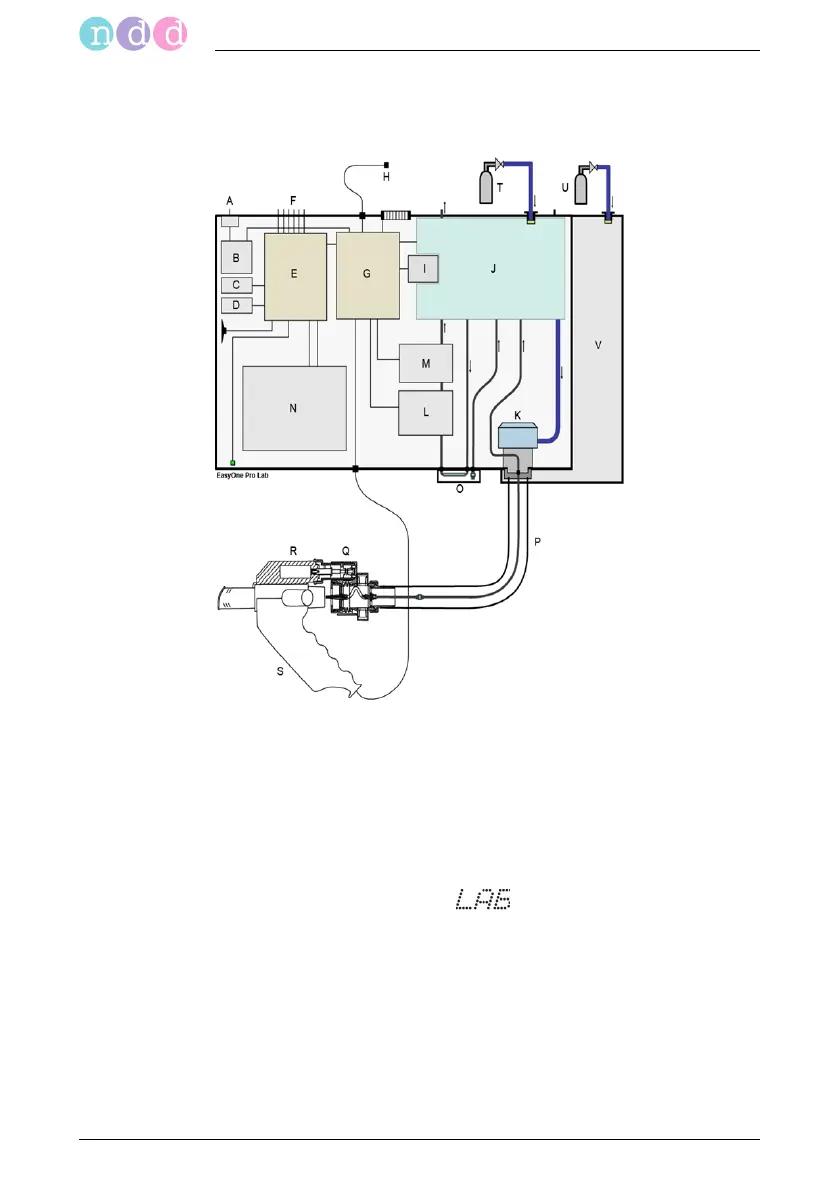

Fig. 1-1 EasyOne Pro™, block diagram

A Mains connector

B Power supply unit

C Hard disk

D Storage disk (backup)

EIndustrial standard PC

F PC ports (USB, LAN, etc.)

G Automatic data acquisition

H Sensor for ambient temperature and

humidity

IPump

J Pneumatic system

K Demand valve

LCO sensor

M Molar mass sensor

N Display with touch screen

O Replaceable filter pack

P Gas supply tubing

QDLCO valve

R Motor block

SSensor

T Gas cylinder for DLCO tests

U Oxygen cylinder for FRC test or wall

outlet (EasyOne Pro™ LAB only)

V Oxygen supply unit (EasyOne Pro™

LAB only)
