Installing the Cabinet
1-10 ◆ Section 1: Installation Basics DS1000 Hardware Manual
Installing the Expansion Board
To install the Expansion Board (Figure 1-7):
1. Be sure your system’s power cord is unplugged.
The Expansion Board is not hot-swappable.
2. Plug in the Expansion Board as shown below.
Be sure to snap the Expansion Board into the plastic standoffs that are supplied with the Expan-
sion Board.
3. Replace and resecure the top panel.

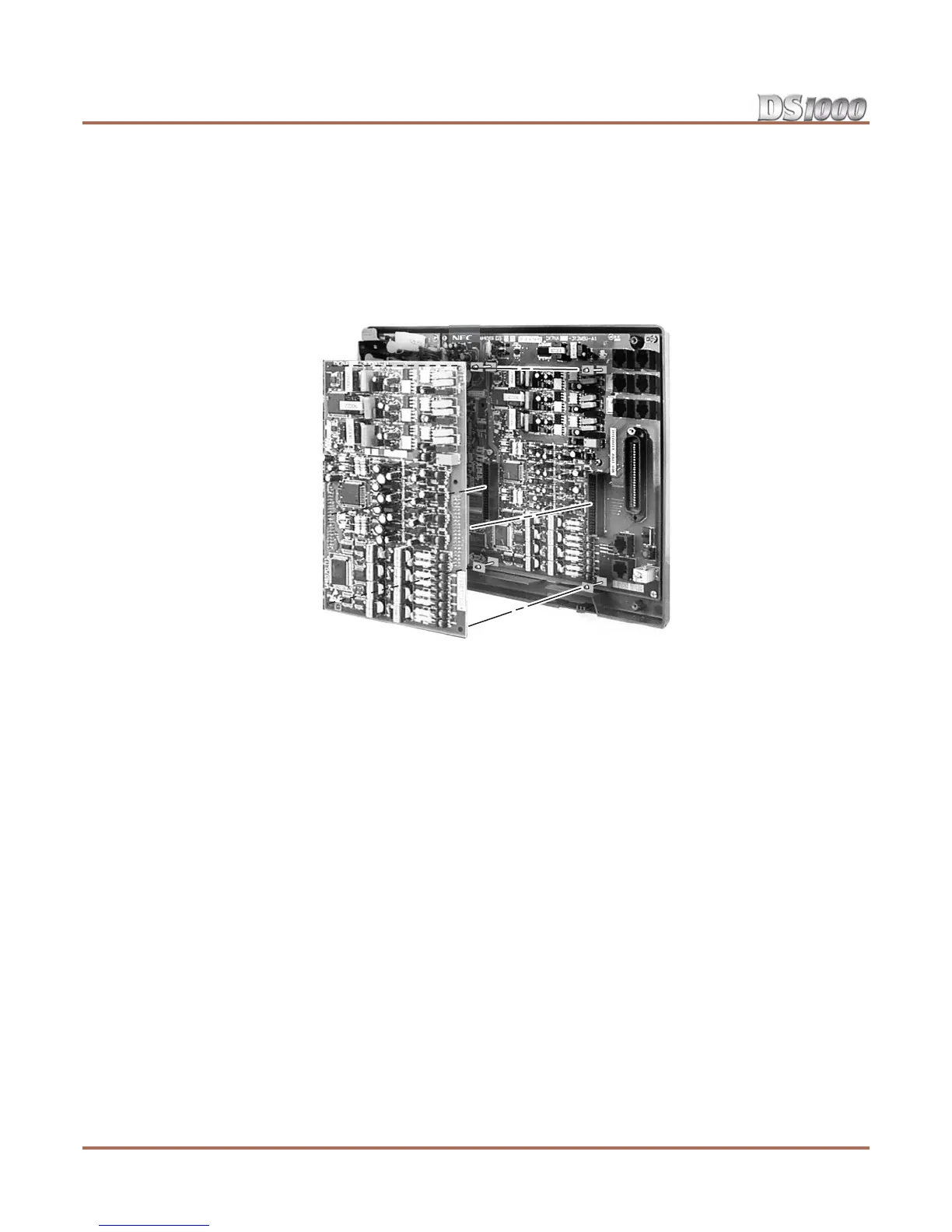

Figure 1-7: Installing the Expansion Board
80200 - 32
