Finishing the Installation
3-4 ◆ Section 3: Connecting Trunks and Extensions DS1000 Hardware Manual
Finishing the Installation
Reinstalling the Cover
Now that your cabling is complete and the system is up and running, you should reinstall the cover.
To reinstall the cover (Figure 3-5):
1. Slide the cover onto the Main Equipment Cabinet as shown.
2. Slide the cover button to LOCK.

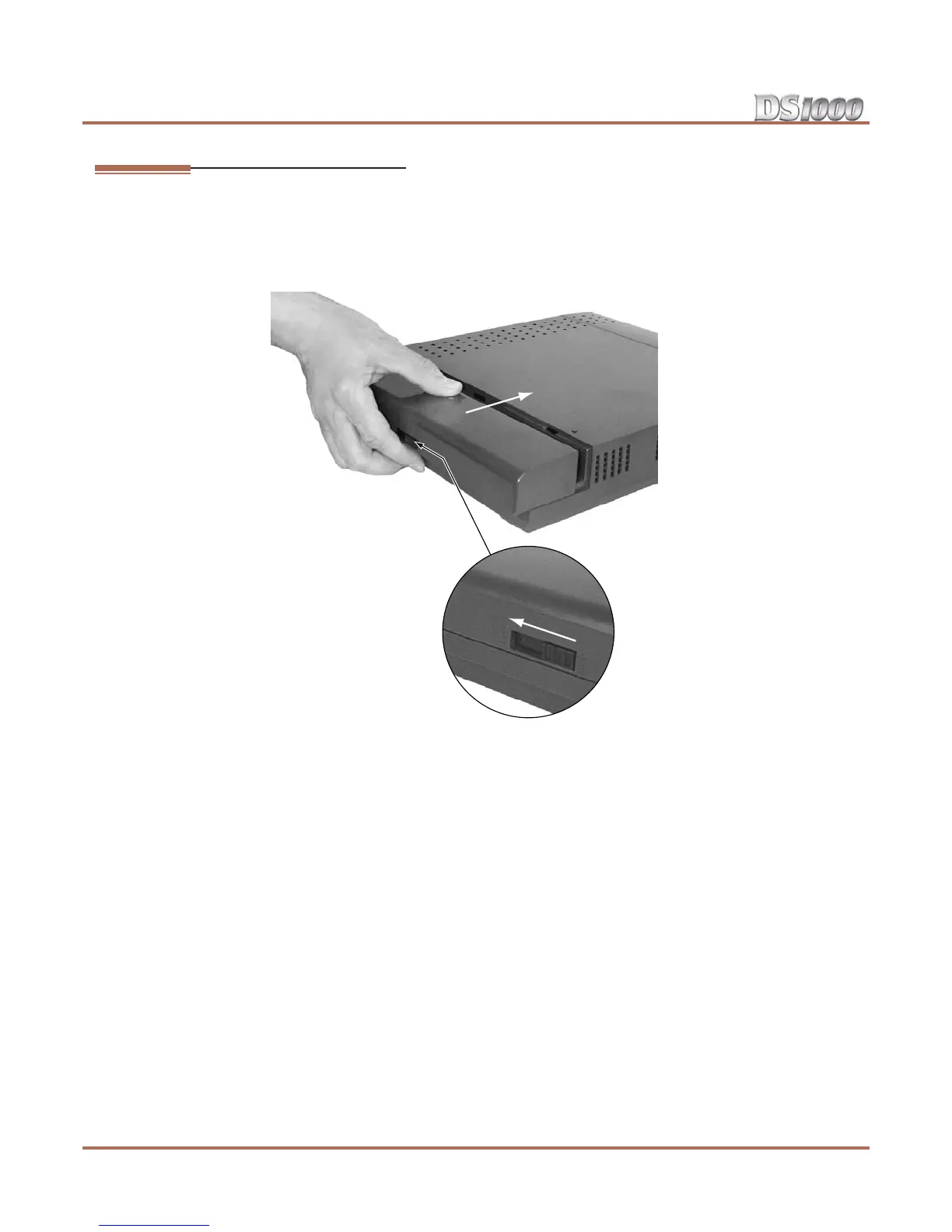

Figure 3-5: Reinstalling the Cover
80200 - 15
Push button
to "LOCK" position
