Music Source
4-6 ◆ Section 4: Optional Equipment DS1000 Hardware Manual
Music Source
Installing a Music Source
Your system provides connection for a customer provided music source. Use this music source for Back-
ground Music and Music on Hold.
Be sure the connected music source is compatible with the following music input specifications:
To connect a music source (Figure 4-3):
1. Connect the music source to the BLK and YEL lugs on the Audio modular jack.
2. Plug a 6-conductor line cord into the AUDIO jack on the cabinet and into the Audio modular jack.
Programming Background Music
● In 0201 - Background Music, enter Y to enable Background Music system-wide.
● In 1802 - BGM, enter Y to enable Background Music at the extension.
To turn Background Music on and off:
1. Do not lift the handset or press SPK.
2. Press HOLD.
Programming Music on Hold
● In 0201 - Music on Hold, enter Y to enable Music on Hold system-wide.
● In 0201 - MOH on Transfer, enter Y to enable Music on Hold for transferred calls.
● In 1003 - MOH Source, enter 1 (for external) + VOL ▲.
You can optionally enter 2 for a low pitched internal tone; 3 for a high pitched internal tone.
Music Input Specifications
Input Impedance: 10K Ohms
Output Level: +18 dBr @ 1.0 KHz

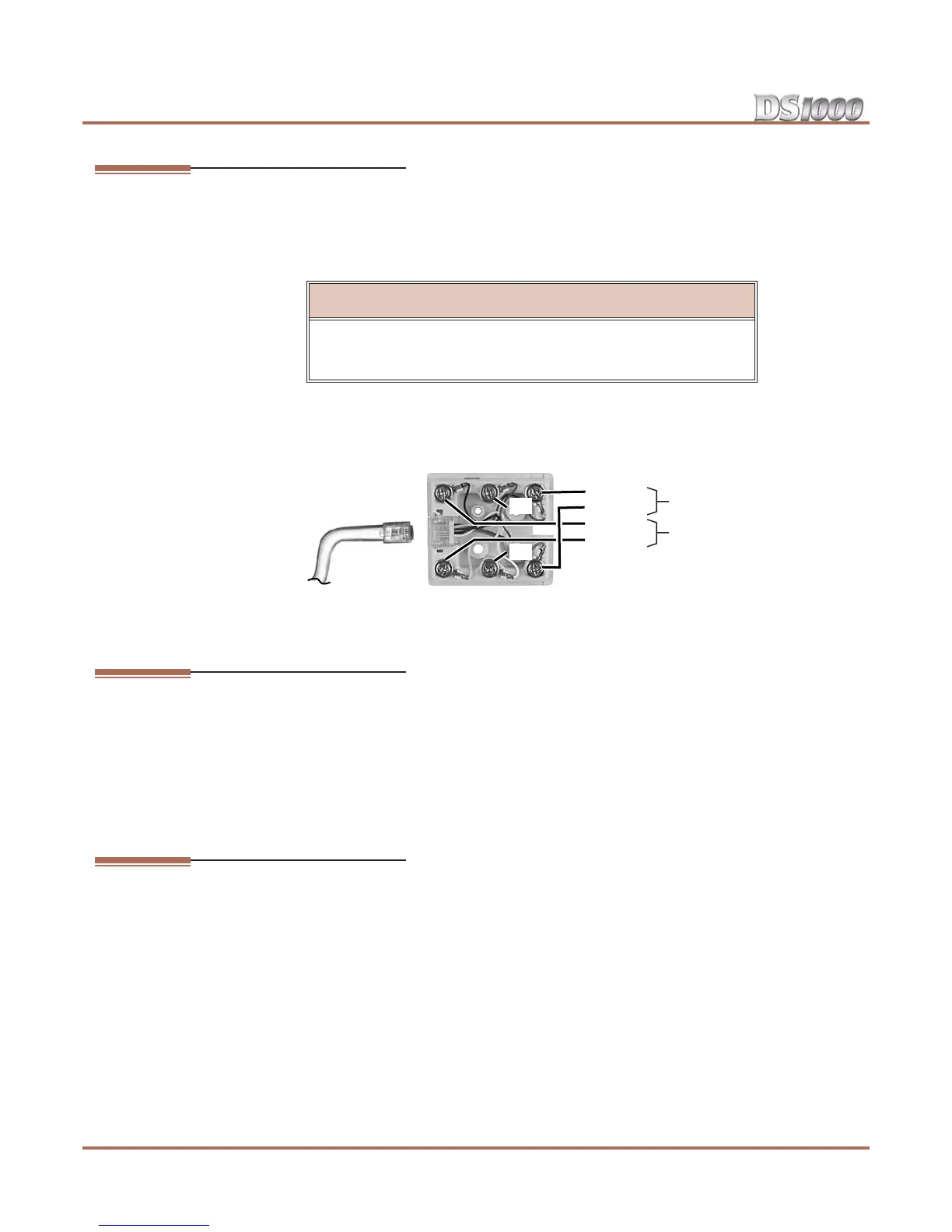

Figure 4-3: Installing a Music Source
BLK BLUE GRN
YEL
To AUDIO in
DS1000 cabinet
WHT RED
80200 - 17
Page T
Page R
Music T
Music R
Page Output
Music Input
NC
NC
