DSS Console
4-8 ◆ Section 4: Optional Equipment DS1000 Hardware Manual
DSS Console
Installing a DSS Console
The DSS Console gives a keyset user a Busy Lamp Field (BLF) and one-button access to extensions, trunks
and system features. Keep the following in mind when installing DSS Consoles:
● You can only connect 4 DSS Consoles.
● You can only connect DSS Consoles to Super Display or 34-Button Display telephones.
● A DSS Console does not require a separate station port – it connects directly to the keyset.
To install a DSS Console (Figure 4-5) (Figure 4-6):
1. Turn the telephone upside down and remove the plastic filler plug from the DSS modular connector.
2. Plug the DSS Console’s 8-pin modular line cord into the telephone’s DSS connector.
3. Plug the other end of the 8-pin line cord into the DSS Console’s 8-pin jack.
4. If you have a 24-Button DSS Console, attach the metal plate to both the DSS Console and telephone.
See Figure 4-5 Installing a 24-Button DSS Console on page 4-8 for more.
Programming DSS Consoles
● 1801 - DSS Type
For the extension to which you have connected the DSS Console, enter 1 for 24-button, 2 for 110-but-
ton and 0 for unassigned.
● 1801 - DSS Block Number
For the extension to which you have connected the DSS Console, enter the number of the block that
corresponds to the connected console. A block is a unique DSS Console assignment. The system pro-
vides up to 4 blocks; one for each console.
Your consoles can share the same block if you want them to have the same programming. They
will still have unique Personal Speed Dial numbers, since a DSS Console uses the Personal Speed
Dial for the extension to which it is attached.
● 1704 - DSS Console Key Assignment
Program the DSS Console's keys. Refer to the Software Manual on your System Document CD for
additional programming details.

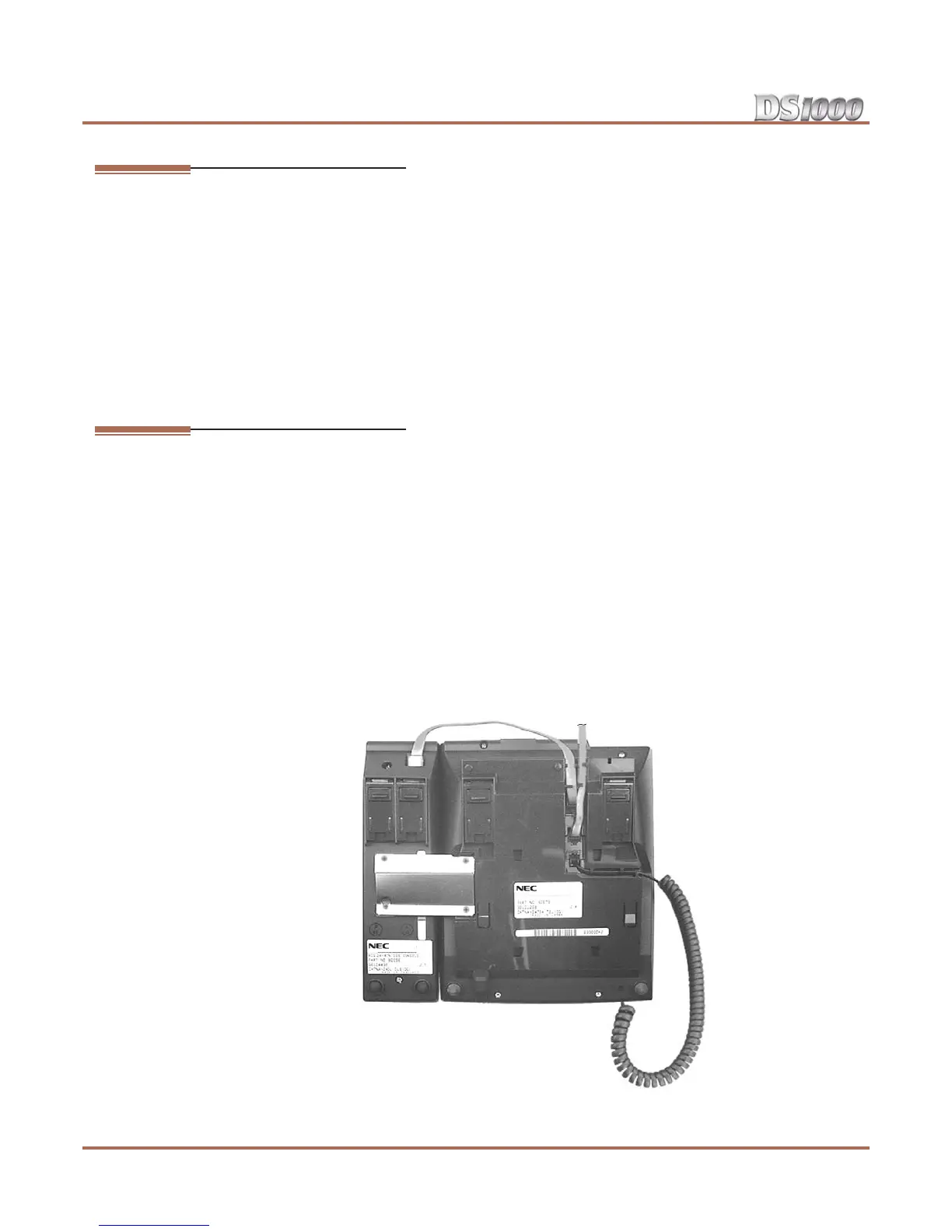

Figure 4-5: Installing a 24-Button DSS Console
80000 - 47B
To 625 Modular Jack
DSS Console Keyset
To Next Page
