INTRODUCTION
16

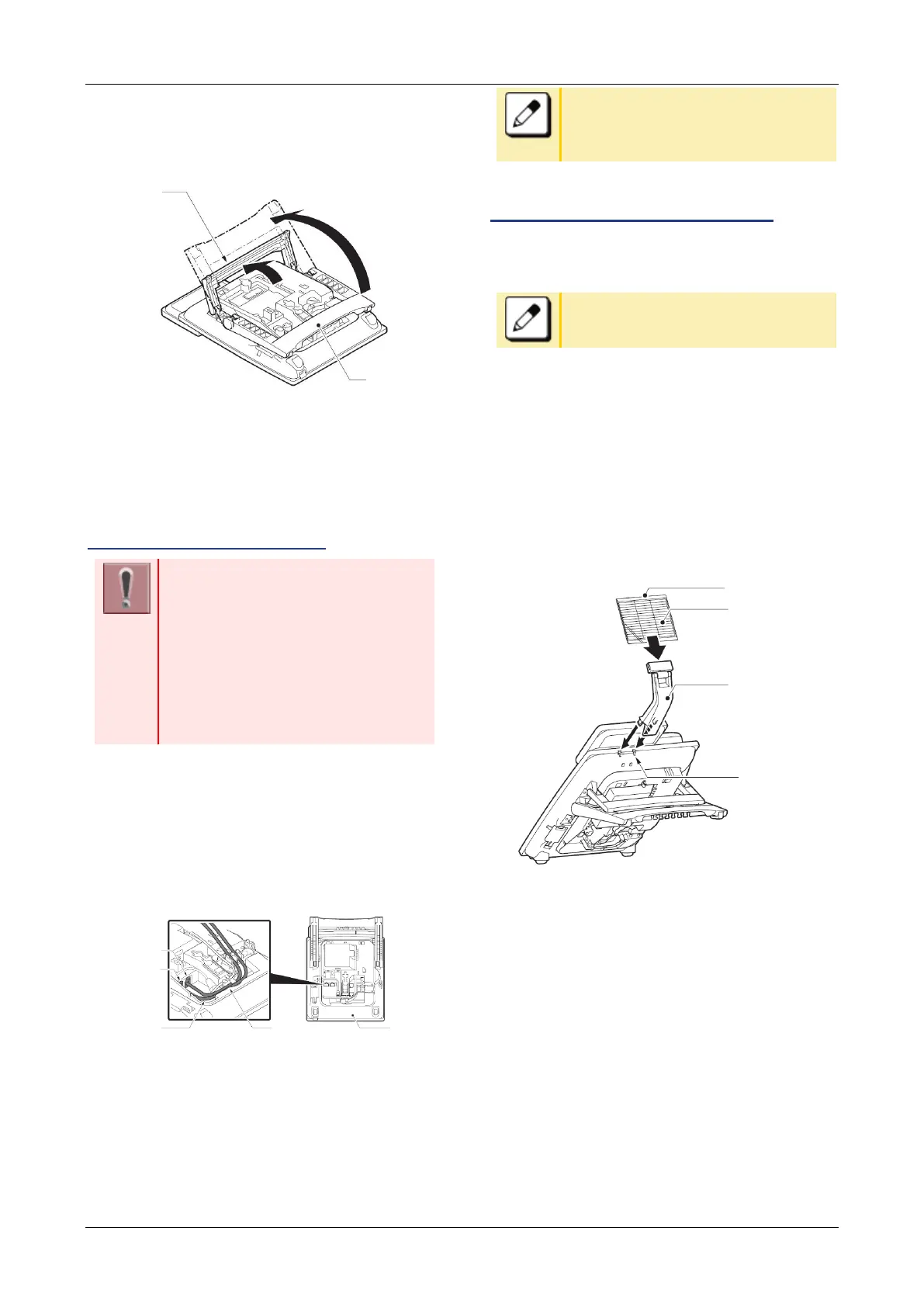

LOWERING TILT LEGS
1. Turn the terminal over (key side down).
2. Lower Tilt Legs to desired height.
(1) Stopper
(2) Tilt Legs
3. Turn the terminal over (key side up).
CONNECTING LAN CABLE
ILPA-R UNIT is required when PoE
Hub supports NEC Proprietary
Protocol (The ILPA-R UNIT converts
IEEE802.3af to NEC Proprietary
Protocol). When ILPA-R UNIT is
used, 1000BASE-T is not available.
For details, please contact the
system administrator.
Connect LAN cable to the terminal following
steps.
1. Connect LAN cable to LAN cable connector
(LAN (=)) of the terminal.
2. Press the LAN cable into the groove.
(1) LAN Cable connector for PC (PC
Port)
(2) LAN Cable connector for the
premises
(3) LAN Cable
(4) Groove
(5) Terminal
When you connect the LAN cable to
a PC, connect the LAN cable to the
terminal's PC port and the PC.
ATTACHING DIRECTORY CARD
The Directory Card can be used to record often
dialed numbers or other important information.
Directory Card is optional.
1. Attach the Directory Card to the Directory Card
Holder.
2. Take the protective sheet off from the plastic
cover.
The surface of the plastic cover is put out.
3. Push the Directory Card Holder into the
grooves on the terminal until they snap into
place.
(1) Plastic Cover
(2) Directory Card
(3) Directory Card Holder
(4) Grooves
(1)
(2)
(1)
(2)
(3)
(4)
(5)
(1)
(2)
(2)
(3)
(4)
