150

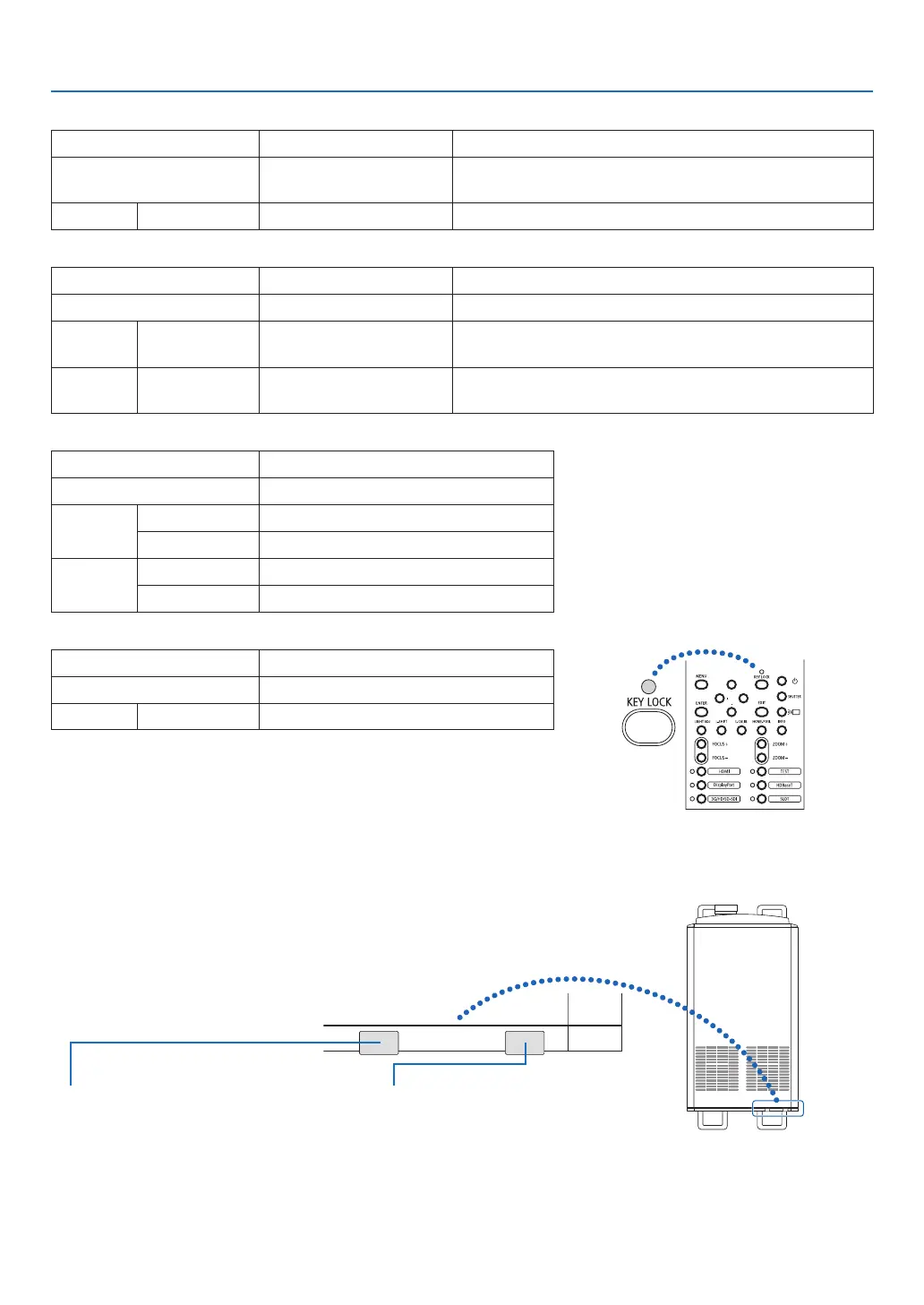

8. Appendix
LIGHTIndicator
Indicatordisplay Projector status Procedure
Off
Thelightmoduleisturned
off.
–
Lit Green
Lightmodulelit –
TEMP.Indicator
Indicatordisplay Projector status Procedure
Off No problem
Flashing Red
Temperatureproblem Ambienttemperatureisoutoftheoperationtemperature.
Checkifanyobstructionstaysneartheexhaustvent.
Lit Red High surrounding tem-
perature
The surrounding temperature is high. Lower the room
temperature.
SHUTTERIndicator
Indicatordisplay Projector status
Off
Shutterisopen.
Flashing Green Performingthelenscalibration.
Orange Lenscalibrationimplementrequest.
Lit Green Shutterisclosed.
Orange Onscreenmuting
KEYLOCKIndicator
Indicatordisplay Projector status
Off
[CONTROLPANELLOCK][OFF]
Lit Orange [CONTROLPANELLOCK][ON]
REAR LED
When[REARLED]under[NOTIFICATIONSETTINGS]issetto[ON],theoperationisasshownbelow.Whensetto
[OFF],therearLEDisalwaysoff.
Light status indicator
Off:Thelightmoduleisturnedoff
On(white):Lightmodulelit
System status indicator
OperatesinthesamewayastheSTATUS
indicator.
