7. Appendix
Screen Trigger (Stereo mini)
When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and
the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger
to the screen controller and the screen will go up.
NOTE:
• To use this feature, you must turn on the [TRIGGER-1/2] function. See “TRIGGER-1/2” on page 69 for more information.

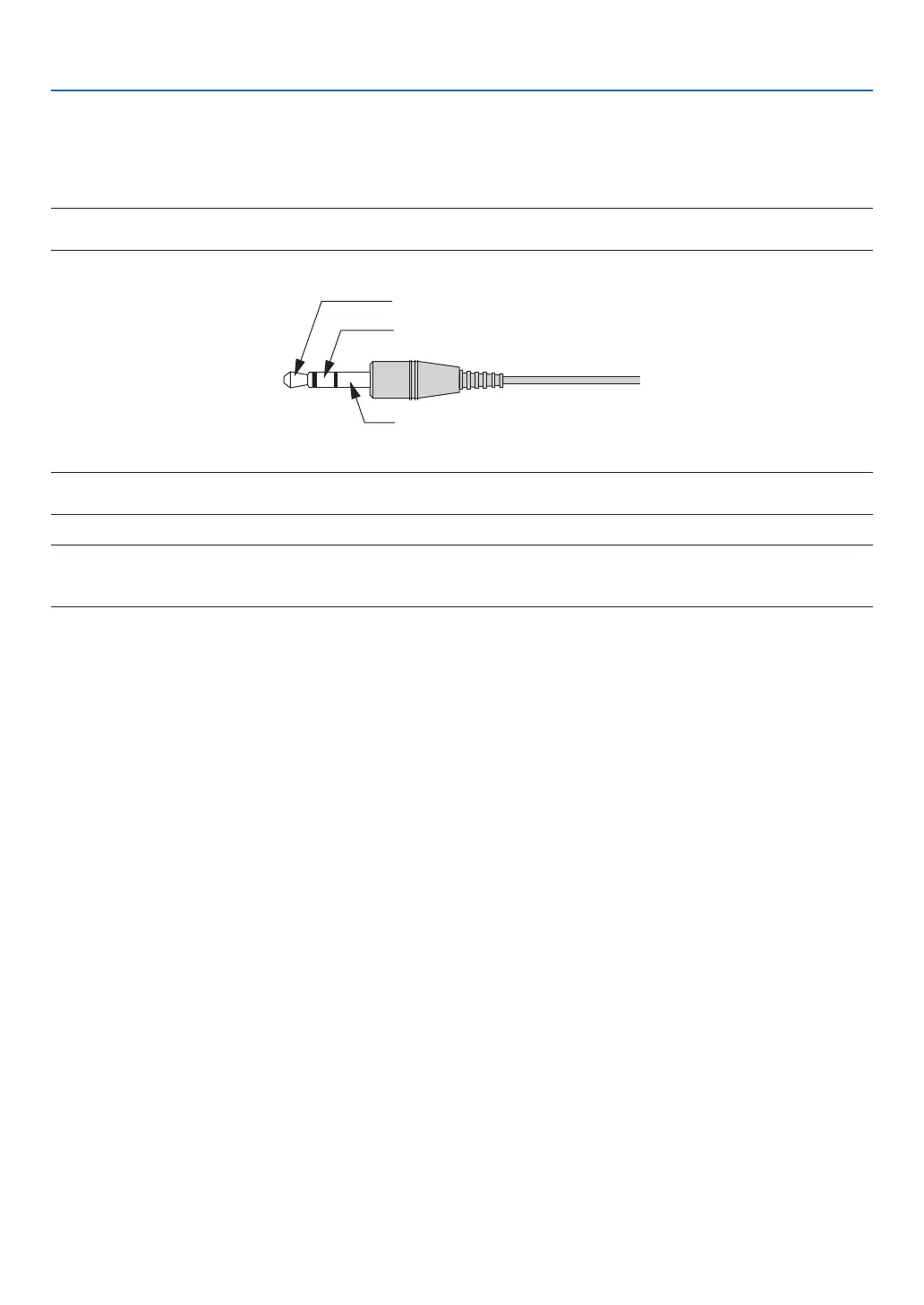

Stereo mini cable
(not supplied)
Tip (12 V)
Ring (0 V)
Sleave (ground 0 V)
NOTE:
• Screen controllers are supplied and supported by screen manufacturers.
NOTE:
• Do not use these terminals for anything other than intended use. Connecting the wired remote control to the TRIGGER 1/2 terminals
causes damage to the remote control.
