1. Introduction

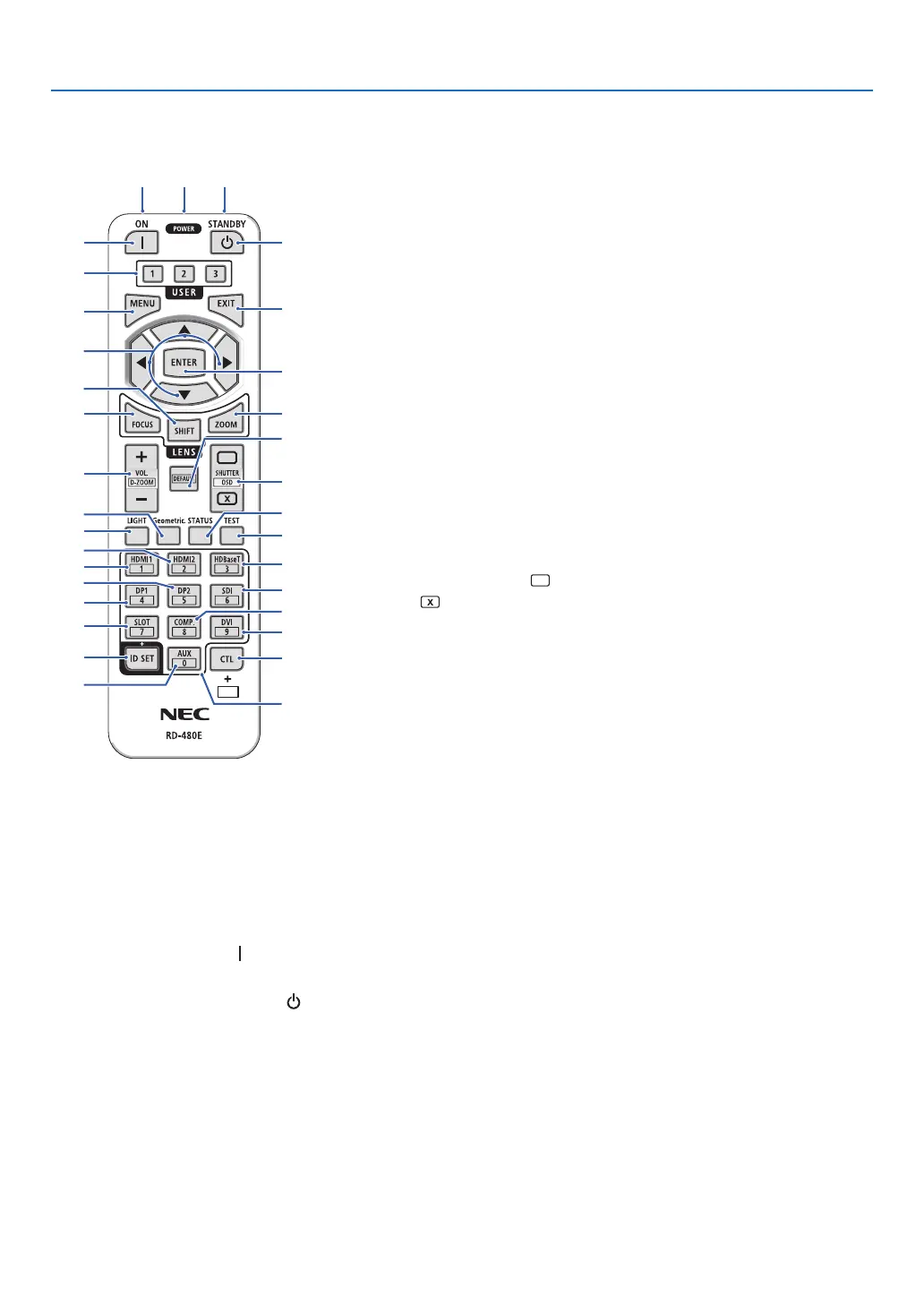

1-4. Part Names of the Remote Control
8. ▲▼◀▶ Button
(→ page 44)
9. ENTER Button
(→ page 44)
10. FOCUS Button
(→ page 24, 25)
11. SHIFT Button
(→ page 21)
12. ZOOM Button
(→ page 24, 25)
13. VOL./D-ZOOM (+)(−) Button
(The VOL. button function cannot
be used with this series of projec-
tors.)
(→ page 32)
14. DEFAULT Button
(Not available on this series of
projectors. For future expansion)
15. SHUTTER/OSD OPEN ( )/
CLOSE ( ) Button
(→ page 30)
16. LIGHT Button
(→ page 33)
17. Geometric. Button
(→ page 34)
18. STATUS Button
(→ page 70)
19. TEST Button
(→ page 23, 51)
20. HDMI1 Button
(→ page 18)
21. HDMI2 Button
(→ page 18)
22. HDBaseT Button
(→ page 18)
23. DP1 Button
(→ page 18)
24. DP2 Button
(Not available on this series of
projectors.)
25. SDI Button
(→ page 18)
26. SLOT Button
(Not available on this series of
projectors.)
112
3
5
4
7
6
9
8
12
15
14
10
11
13
16
17
20
21
18
19
25
27
28
31
23
26
30
29
24
22
32
27. COMP. Button
(→ page 18)
28. DVI Button
(→ page 18)
29. AUX Button
(→ page 18)
30. ID SET Button
(→ page 68)
31. Numeric Keypad Button
(→ page 68)
32. CTL Button
(→ page 30, 32)
1. Infrared Transmitter
(→ page 11)
2. Remote Jack
Connect a commercially available
remote cable here for wired opera-
tion.
(→ page 11)
3. POWER ON Button ( )
(→ page 16)
4. POWER STANDBY Button ( )
(→ page 29)
5. USER 1/2/3 Button
(Not available on this series of
projectors. For future expansion)
6. MENU Button
(→ page 44)
7. EXIT Button
(→ page 44)
