7-7. Feature of each indicator

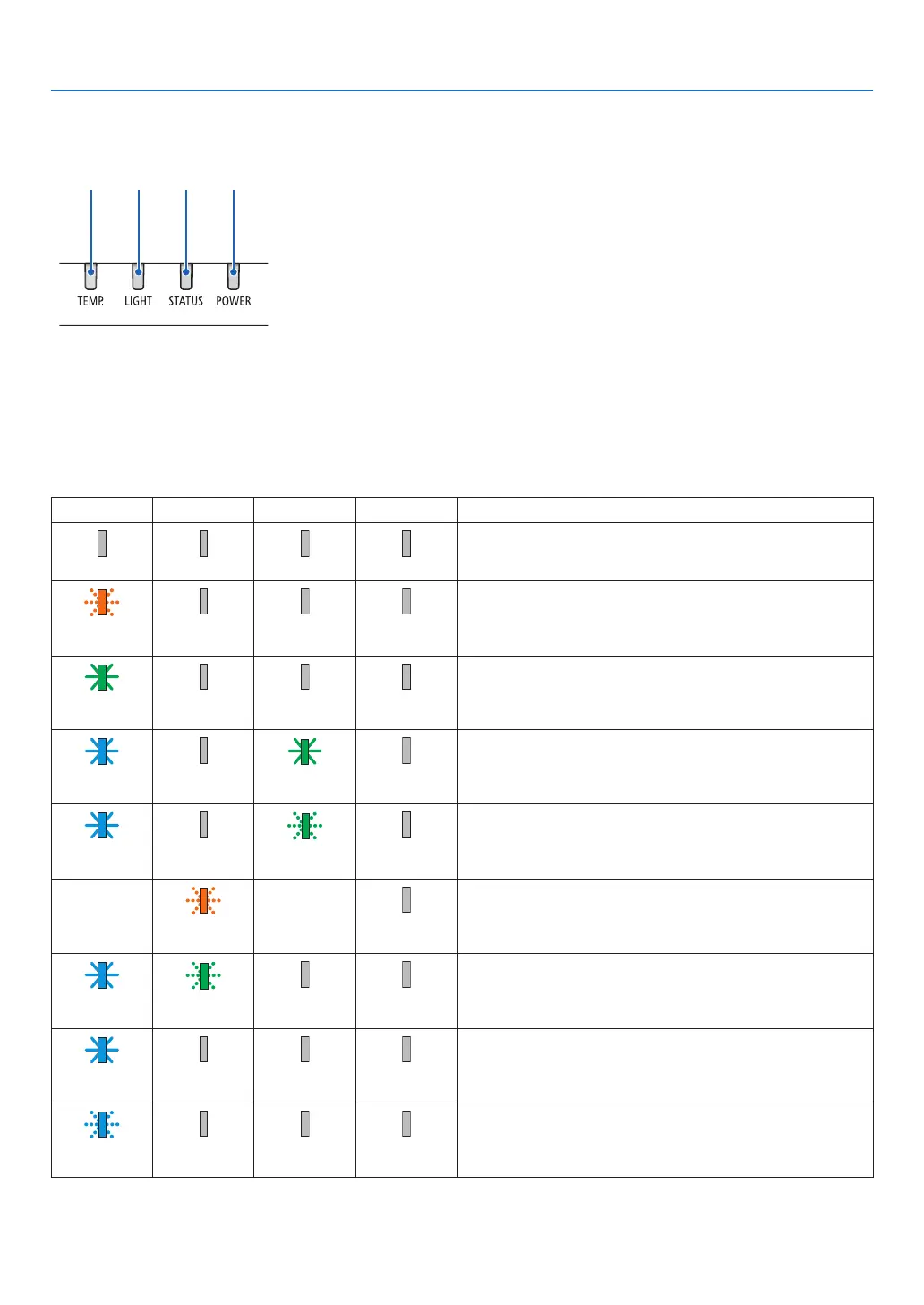

④ ③ ② ①
① POWER indicator
This indicator informs the power status of the projector.
② STATUS indicator
This indicator lights/blinks when a button is pressed while the [CONTROL
PANEL LOCK] function is utilized, or while performing the [CENTER LENS]
and specic operations.
③
LIGHT indicator
This indicator informs the state of light source, used time of the light source,
and the status of [LIGHT MODE].
④
TEMP. indicator
This is the temperature indicator informing temperature trouble when the
ambient temperature is too high/low.
Indicator Message (Status message)
POWER STATUS LIGHT TEMP. Projector status
Power is off
Off Off Off Off
In the state of Standby ([STANDBY POWER] is [OFF] and the
network is not available.)
Orange
(Blink*
1
)
Off Off Off
In the state of Sleep
Green
(Light)
Off Off Off
Powered state ([LIGHT MODE] is [NORMAL])
Blue
(Light)
Off Green
(Light)
Off
Powered state ([LIGHT MODE] is [ECO])
Blue
(Light)
Off Green
(Blink*
2
)
Off
[CENTER LENS] implement request.
(The [CENTER LENS] execution request message is displayed
on the screen.)
Status varies Orange
(Blink*
3
)
Status varies Off
Performing the [CENTER LENS]
Blue
(Light)
Green
(Blink*
3
)
Status varies Off
Shutter function is activating
Blue
(Light)
Status varies Off Off
Preparing for powering ON
Blue
(Blink*
4
)
Off Off Off
