2. Projecting an Image (Basic Operation)
Applicable lens: NP45ZL/NP46ZL/NP47ZL
The lens unit NP45ZL, NP46ZL, or NP47ZL allows you to manually adjust the edge focus in addition to the electric focus.

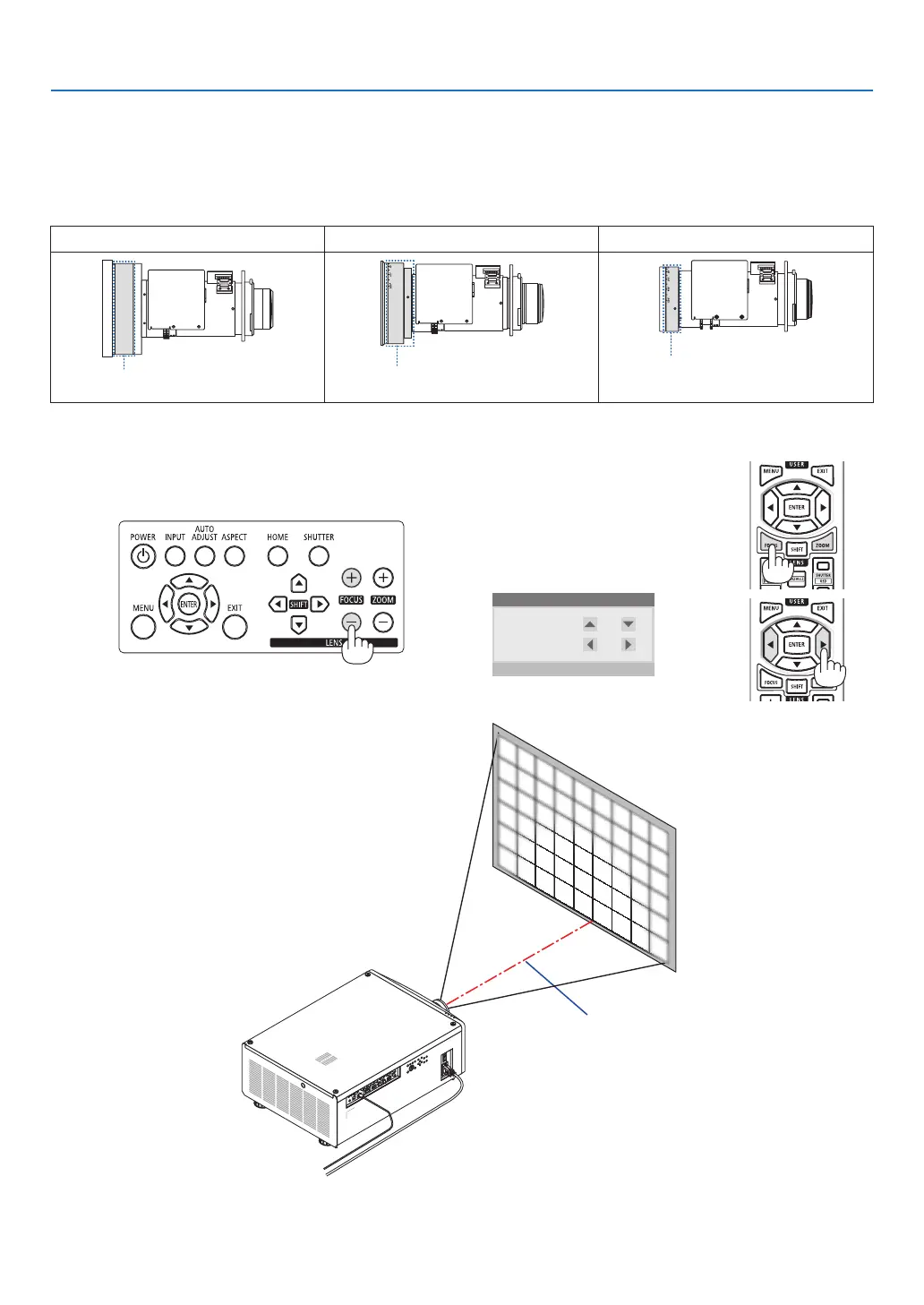

Edge focus position for each lens unit
NP45ZL NP46ZL NP47ZL
Edge focus ring
Edge focus ring
Edge focus ring
1. Focus on the projected image around the optical axis. (Powered focus)
Adjusting with buttons on the cabinet
Use the FOCUS (+) or (−) button on the projector
cabinet.
Adjusting with the remote control
① Press the FOCUS button or the
ZOOM button.
The test pattern and the [LENS
CONTROL] screen will be dis-
played on.
LENS CONTROL
[ENTER] CHANGE ADJUSTMENT
ZOOM
FOCUS
② Press the ◀/▶ buttons.
Optical axis
