8
1. Introduction

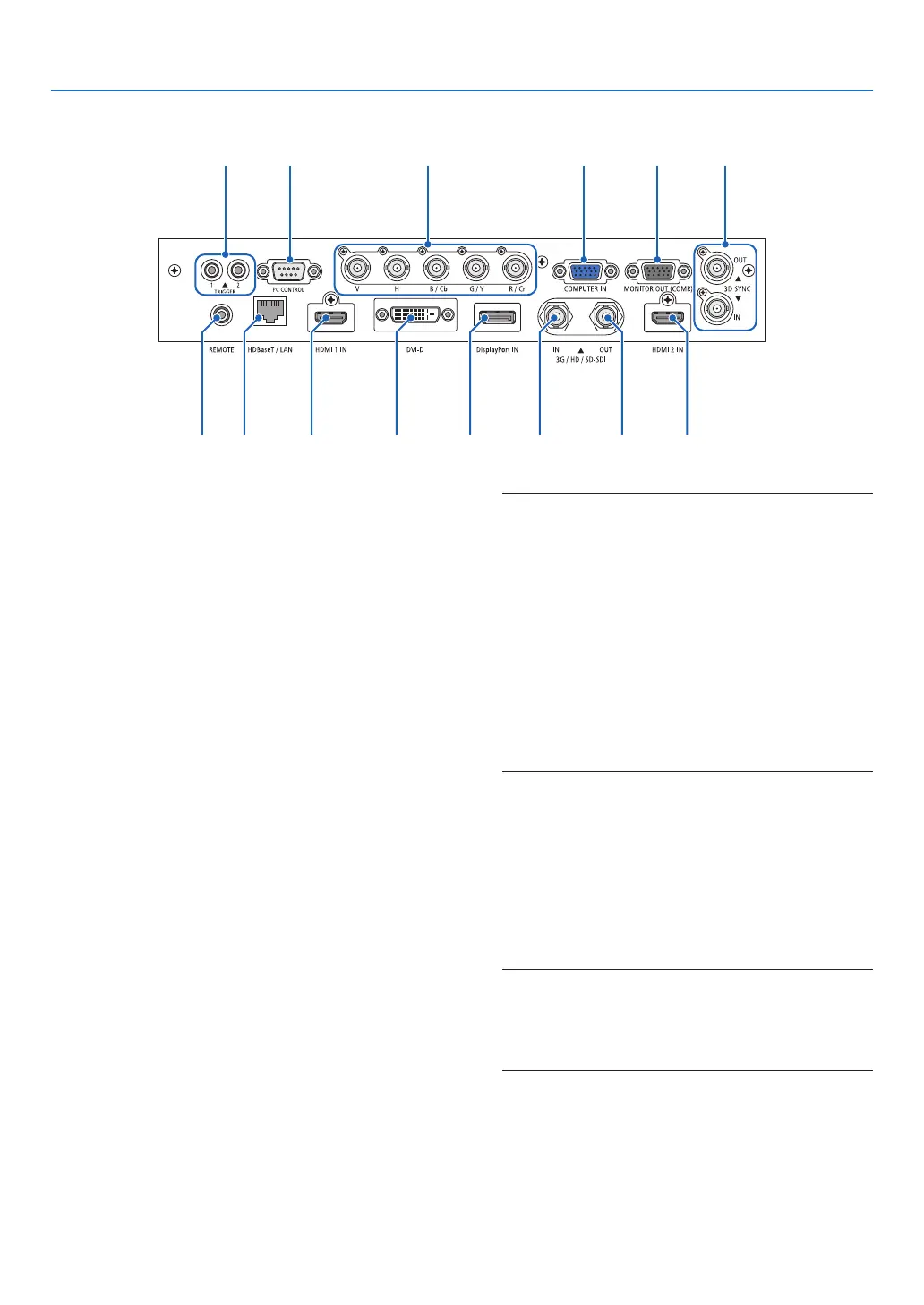

Terminals Features
11
2141
84 76
12 3
13
9 10 5
1. COMPUTER IN Terminal (Mini D-Sub 15 Pin)
(→ page 71)
2. MONITOR OUT Terminal (Mini D-Sub 15 Pin)
3. BNC IN [R/Cr/CV, G/Y/Y, B/Cb/C, H, V] Terminals
(BNC × 5)
(→ page 71)
4. HDMI 1 IN Terminal (Type A)
(→ page 13, 71)
5. HDMI 2 IN Terminal (Type A)
(→ page 13, 71)
6. DisplayPort IN Terminal (DisplayPort 20 Pin)
(→ page 71)
7. DVI-D Terminal
(→ page 71)
8. HDBaseT/LAN Port (RJ-45)
(→ page 71)
9. 3G/HD/SD-SDI IN Terminal (BNC)
(→ page 71)
10. 3G/HD/SD-SDI OUT Terminal (BNC)
(→ page 71)
11. REMOTE Terminal (Stereo Mini)
Use this jack for wired remote control of the projector
using a commercially available remote cable with ⌀3.5
stereo mini-plug (without resistance).
Connect the projector and the supplied remote control
using a commercially available wired remote control
cable.
(→ page 11)
NOTE:
• When a remote control cable is connected to the REMOTE
terminal, infrared remote control operations cannot be
performed.
• Power cannot be supplied from the REMOTE terminal to
the remote control.
• When [HDBaseT] is selected in the [REMOTE SENSOR]
and the projector is connected to a commercially-available
transmission device that supports HDBaseT, remote
control operations in infra-red cannot be carried out if
transmission of remote control signals has been set up in
the transmission device. However, remote control using
infrared rays can be carried out when the power supply
of the transmission device is switched off.
12. PC CONTROL Port (D-Sub 9 Pin)
Use this port to connect a PC or control system. This
enables you to control the projector using serial com-
munication protocol. Use a shielded RS232C cable
(sold commercially).
(→ page 85)
13. TRIGGER 1/2 Terminal (Stereo Mini)
(→ page 86)
NOTE:
• Do not use the TRIGGER 1/2 terminal for anything other
than intended use. Connecting the wired remote control to
the TRIGGER 1/2 terminal causes damage to the remote
control.
14. 3D SYNC Terminal (Mini DIN 3 Pin)
(→ page 52)
