1. Introduction

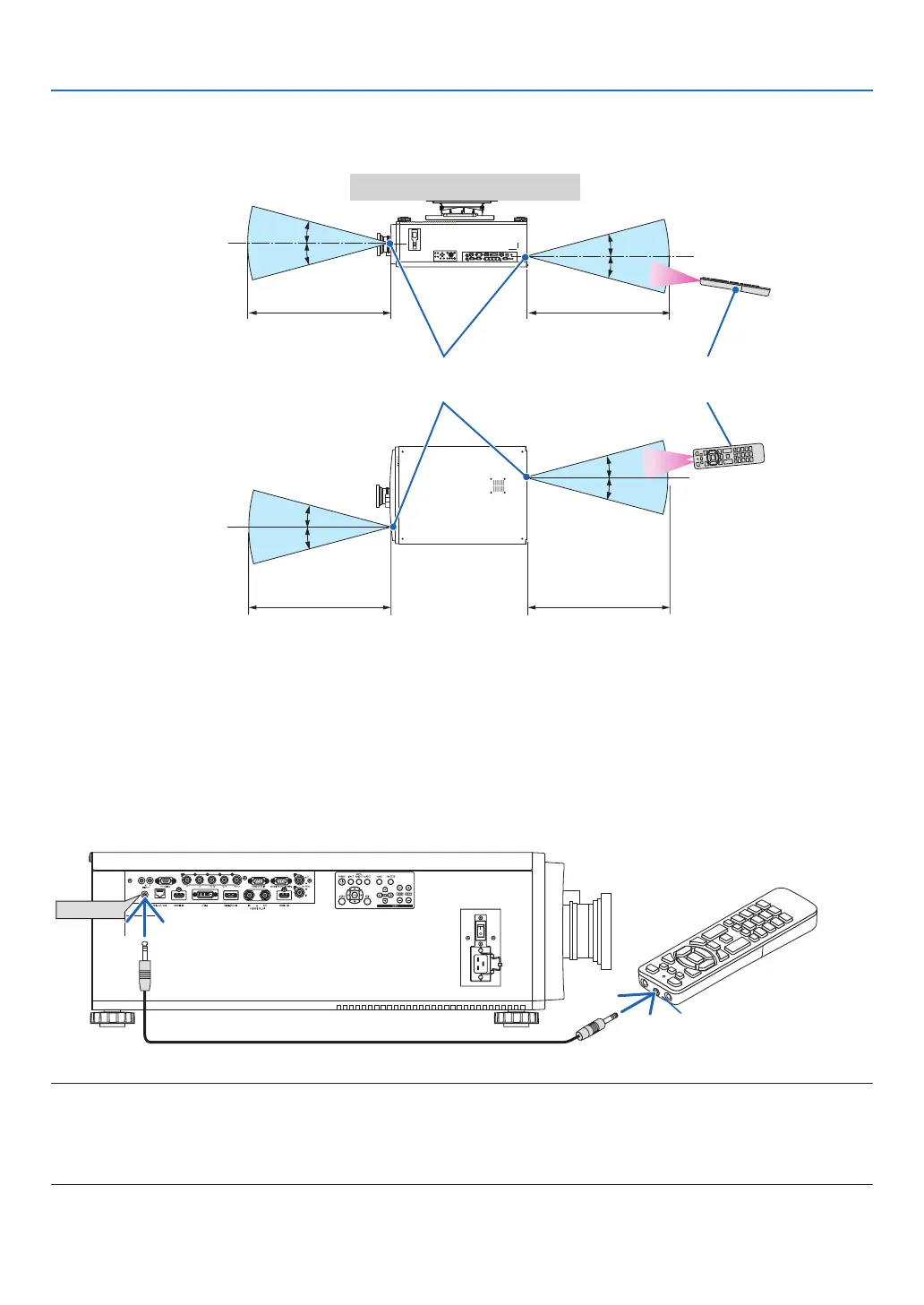

Operating Range for Wireless Remote Control
7 m/276 inch
7 m/276 inch
Remote controlRemote sensor on projector cabinet
7 m/276 inch
7 m/276 inch
15°
15°
15°
15°
15°
15°
15°
15°
• The infrared signal operates by line-of-sight up to a distance of above meters and within a 60-degree angle of the
remote sensor on the projector cabinet.
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls
on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.
Using the Remote Control in Wired Operation
Connect one end of the remote cable to the REMOTE terminal and the other end to the remote jack on the remote
control.
REMOTE
Remote Jack
NOTE:
• When a remote cable is inserted into the REMOTE terminal, the remote control does not work for infrared wireless communication.
• Power will not be supplied to the remote control by the projector via the REMOTE jack. Battery is needed when the remote control
is used in wired operation.
• Connecting the wired remote control to the TRIGGER 1/2 terminal causes damage to the remote control.
To Next Page
