Disk Array Unit Overview 1-15
Features and Indicators
The DAU contains several features and indicators located on the front and rear of its
chassis. The LED indicators assist in determining the current state of the DAU
subsystem. The following subsections describe the front and rear chassis features and
indicators of the DAU.
Front Panel

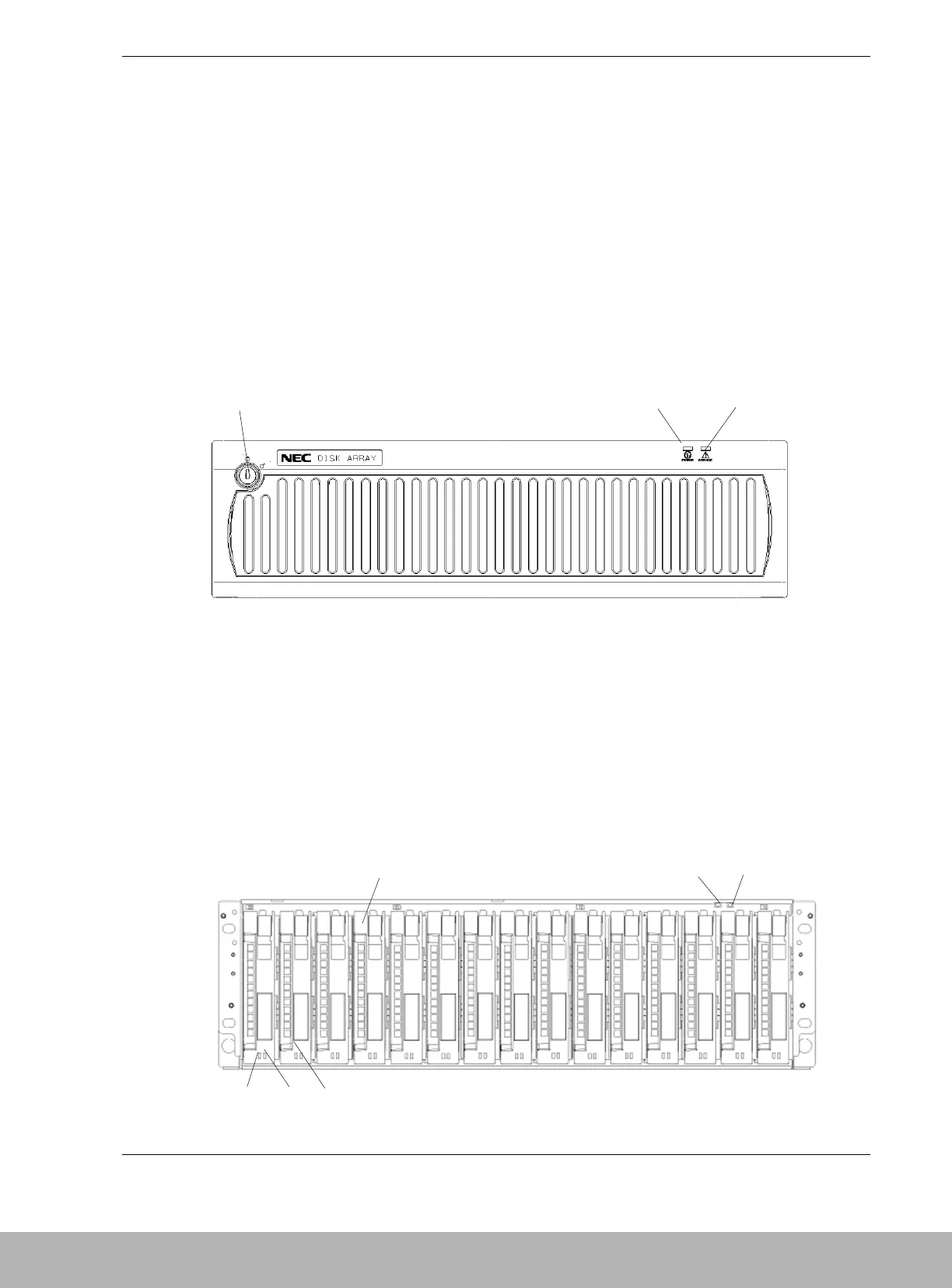

Figure 1-6 shows the front bezel and the indicators visible when the front bezel is
installed. The front bezel can be removed by releasing the lock with the accessory key.
Grasp the sides of the bezel and pull the bezel toward you. The power and service LEDs
are described in Figure 1-7.
A Security Lock
B Power LED (green)
C Service LED (Orange)
Figure 1-6. Front Chassis Features and Indicators (Bezel Installed)
Front Chassis Features and Indicators
Figure 1-7 shows the features and indicators located on the front of the DAU with the
front bezel removed. Disk modules are labeled 00 – 14 and are installed left to right.
00 01 02 03 04 05 06 07 08 09 10 11
12 13 14
