NEC S1300 - Battery Backup Unit

Disk Array Unit Overview 1-21
Battery Backup Unit
Figure 1-11 shows the battery backup unit.
A Connector This connector is used to connect the battery backup unit with the power
supply.

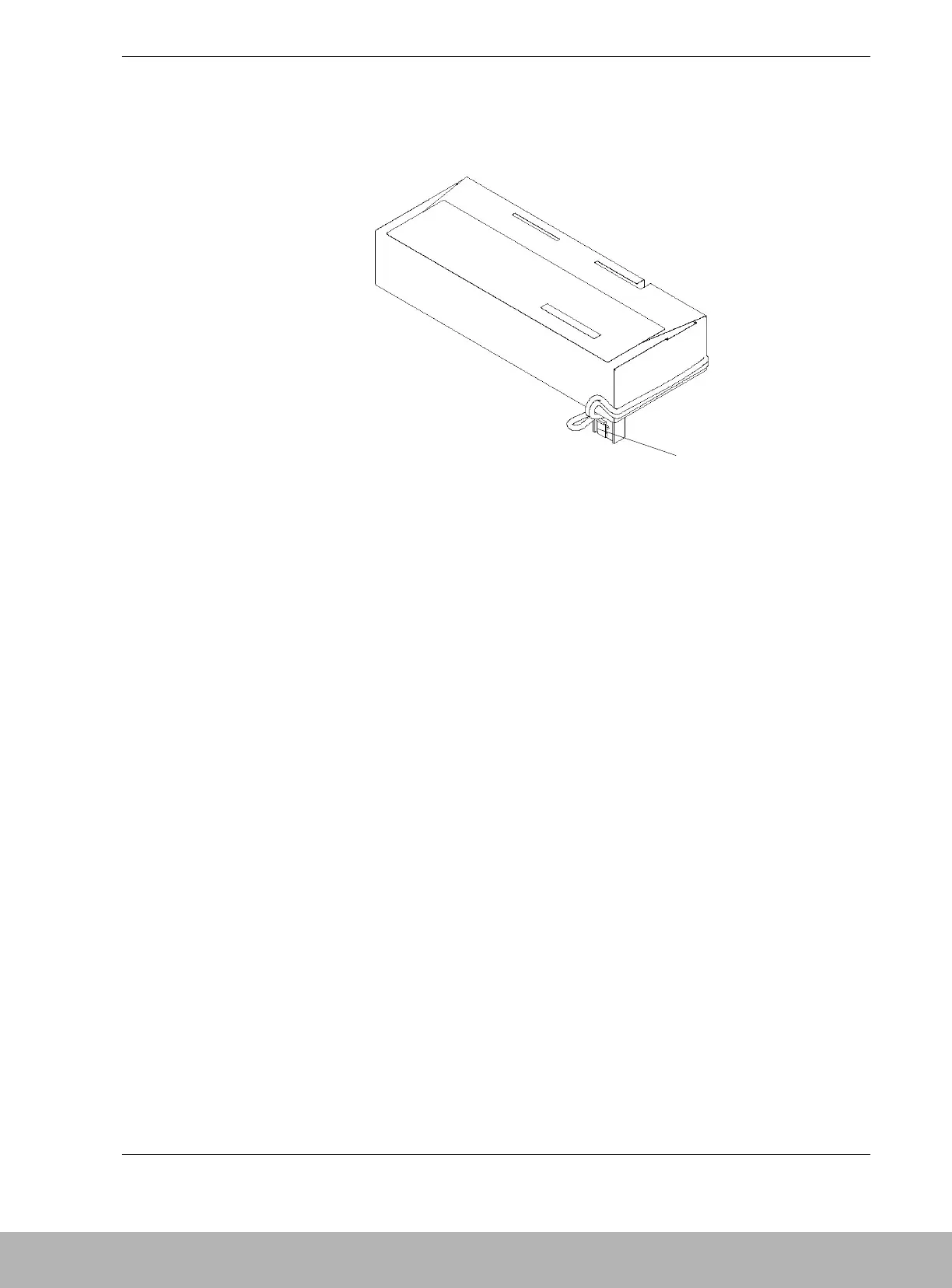

Figure 1-11. Battery Backup Unit
A
