Setting Up The DAU 2-9
6. Firmly tighten the four countersunk head screws loosened in Step 4.
See Figure 2-7.

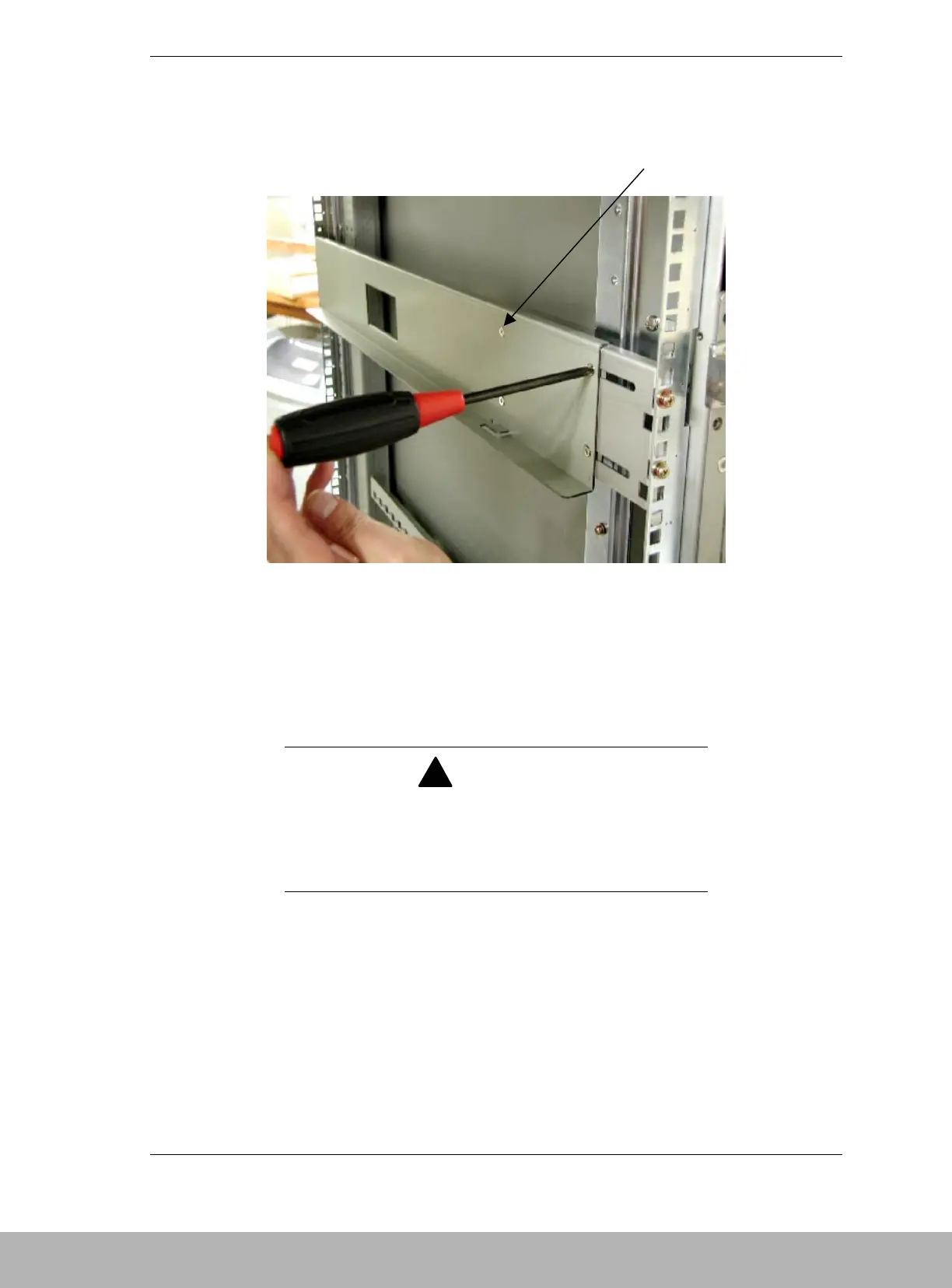

Figure 2-7. Tightening the Countersunk Head Screws
7. Repeat steps 1 through 6 and install the right rail.
Installing the DAU into the System Rack
!
WARNING
To reduce the risk of personal injury or damage to the
equipment, a minimum of two people MUST lift the DAU into
the rack. The DAU weighs 80 lbs (36 kilograms). If the unit is
to be loaded above chest level, a third person must assist in
aligning the rails while the other two support the unit.
1. With one person grasping each side of the DAU, carefully align the DAU to
the rack’s slide rails and slide the DAU into the rack.
2. Secure the DAU to the system rack with two M5 screws. See Figure 2-8.
Countersunk
head screw
