Setting Up The DAU 2-7
2. While holding the left rail hook in position with your left hand, engage the
cutout at the front of the left rail into the rail support hooks protruding
through the cabinet vertical rail. The front of the left rail should be
positioned behind the cabinet front vertical rail and resting on the two left
rail hooks. See Figure 2-3.

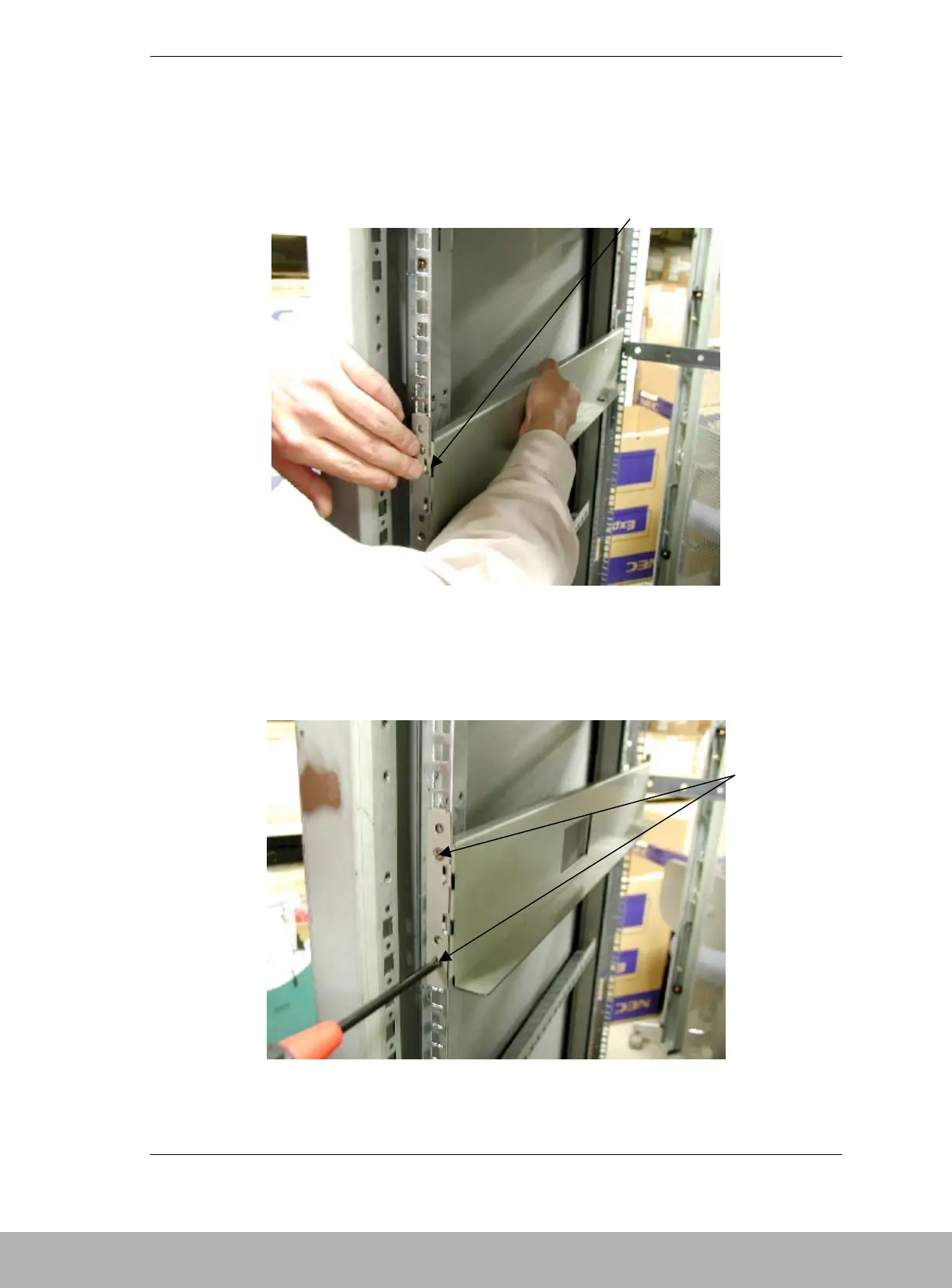

Figure 2-3. Positioning the Left Rail
3. Secure the left rail to the rail support hook with two countersunk head
screws. See Figure 2-4.
Figure 2-4. Securing the Left Rail
Countersunk
head screws
Cutout of rail
