Chapter 7 Disk Array Configuration Setting
IV-44
(6)-3 Specifying the number of logical disks and the logical disk capacity
Check-marking on [Specify both the number of LDs and LD capacity] on the “Binding Method” screen and
clicking the [Next] button displays the “Specify Number of LDs and LD Capacity” screen.

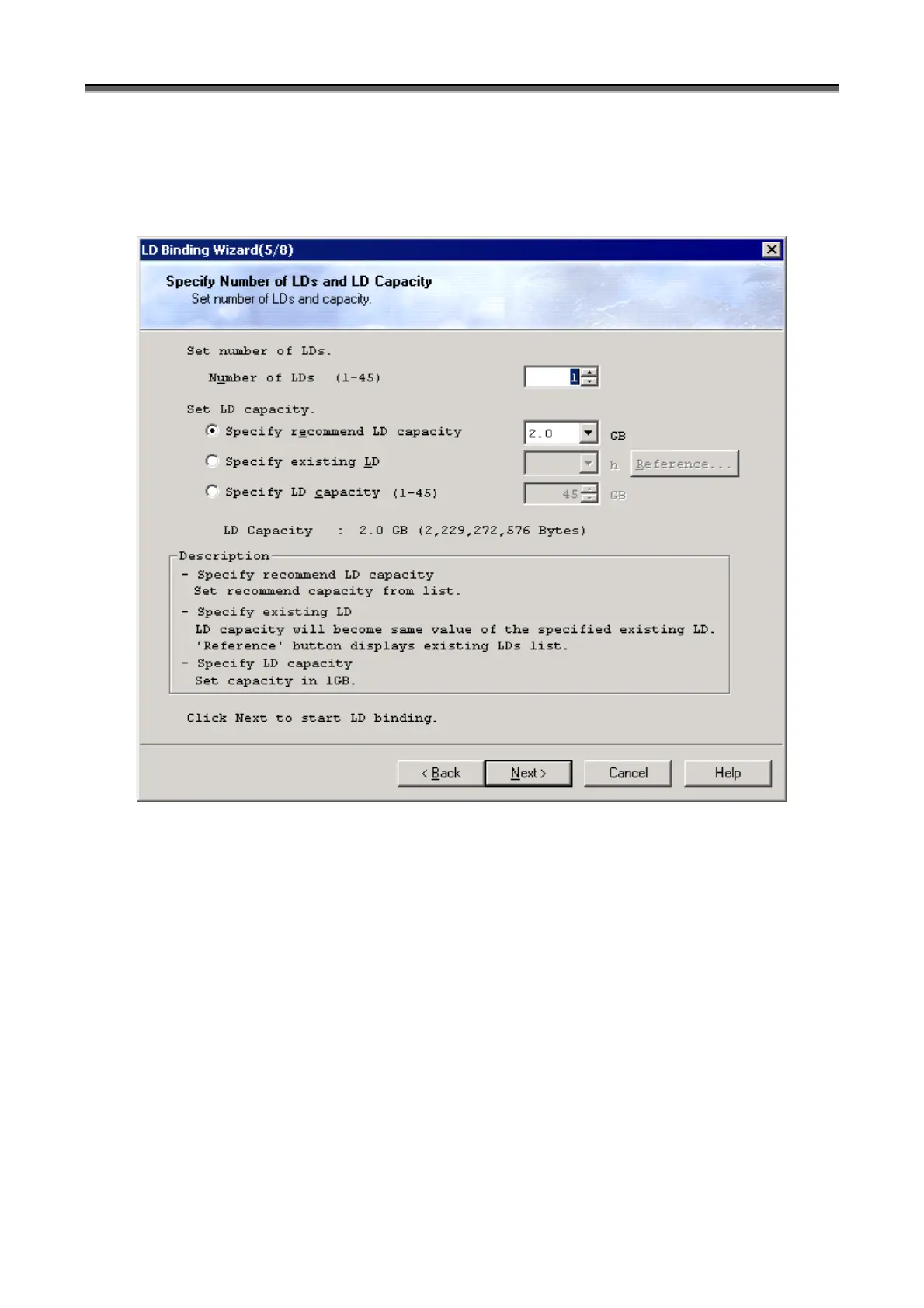

Figure 7-37 Specifying the Number of Logical Disks and Logical Disk Capacity
Number of LDs: Specify the number of logical disks according to (6)-1.
Set LD capacity: Specify the capacity of the logical disks according to (6)-2.
[Next] button: Displays the “Setting Detail Parameter for LD Binding” screen.
[Back] button: Displays back the “Binding Method” screen.
[Cancel] button: Displays a confirmation to ask whether you want to quit the wizard, then the wizard closes if
agreed.
To Next Page
