NEC Storage Manager - 9.3 Network

Chapter 9 Configuration Setting (Common to All Units)
IV-163
9
9
9
.
.
.
3
3
3
N
N
N
e
e
e
t
t
t
w
w
w
o
o
o
r
r
r
k
k
k
The screen shown below (Configuration setting menu → Setting Disk Array → Network) can be used to make various
network settings

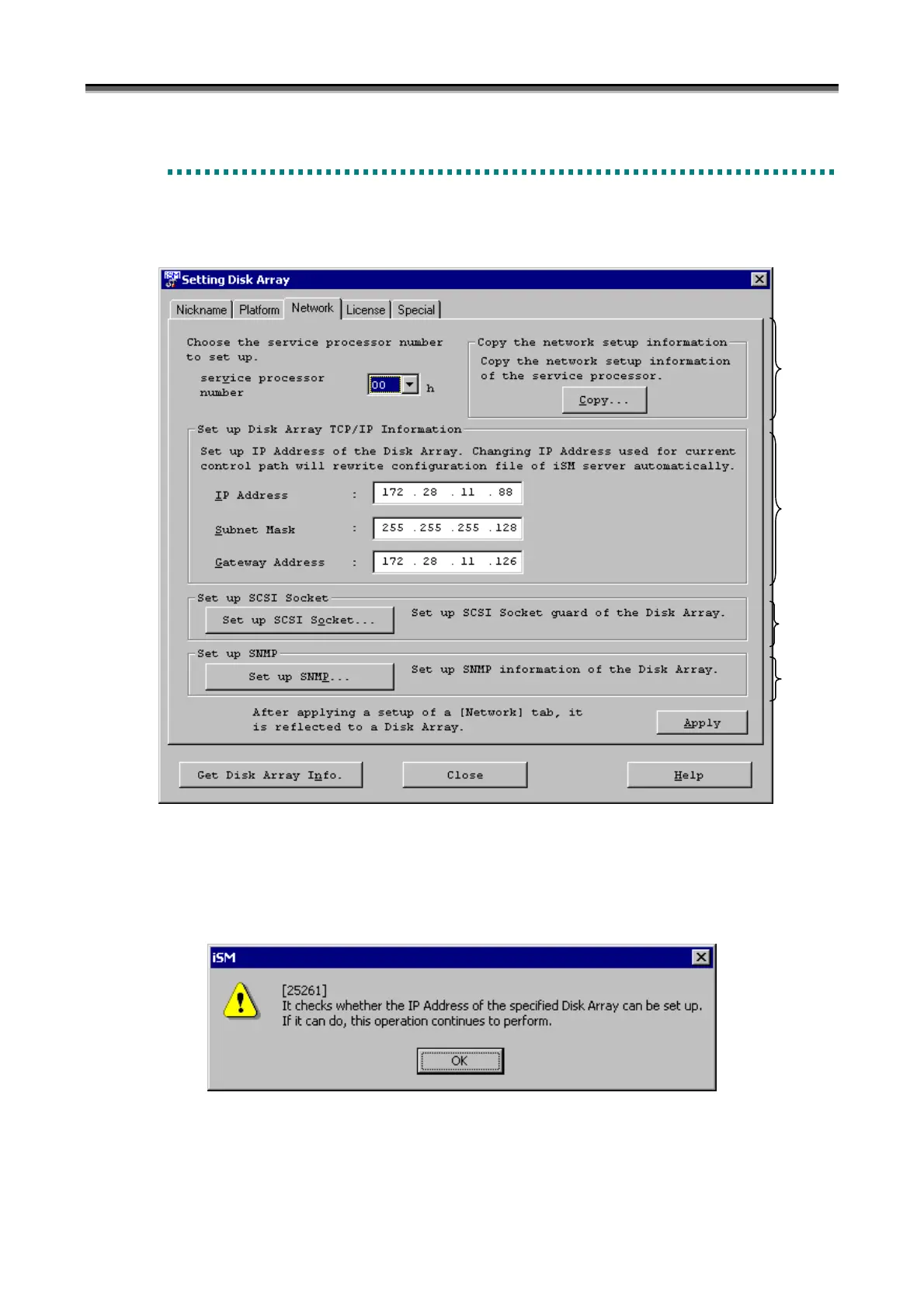

Figure 9-9 Setting Disk Array Dialog Box ([Network] Tab)
The warning dialog box in Figure 9-10 appears when the [Apply] button is clicked after the current IP Address is
changed.
Figure 9-10 Warning Dialog Box
The setting change confirmation dialog box in Figure 9-11 appears when the [Apply] button is clicked without the
current IP Address being changed in the dialog box in Figure 9-9 or when the [OK] button is clicked in the warning
(4)
(1)
(2)
(3)
