Chapter 7 Disk Array Configuration Setting
IV-86
(3) Selecting physical disks
Clicking the [Next] button on the “Welcome to the Spare Binding Wizard” screen displays the “PD Selection”
screen.

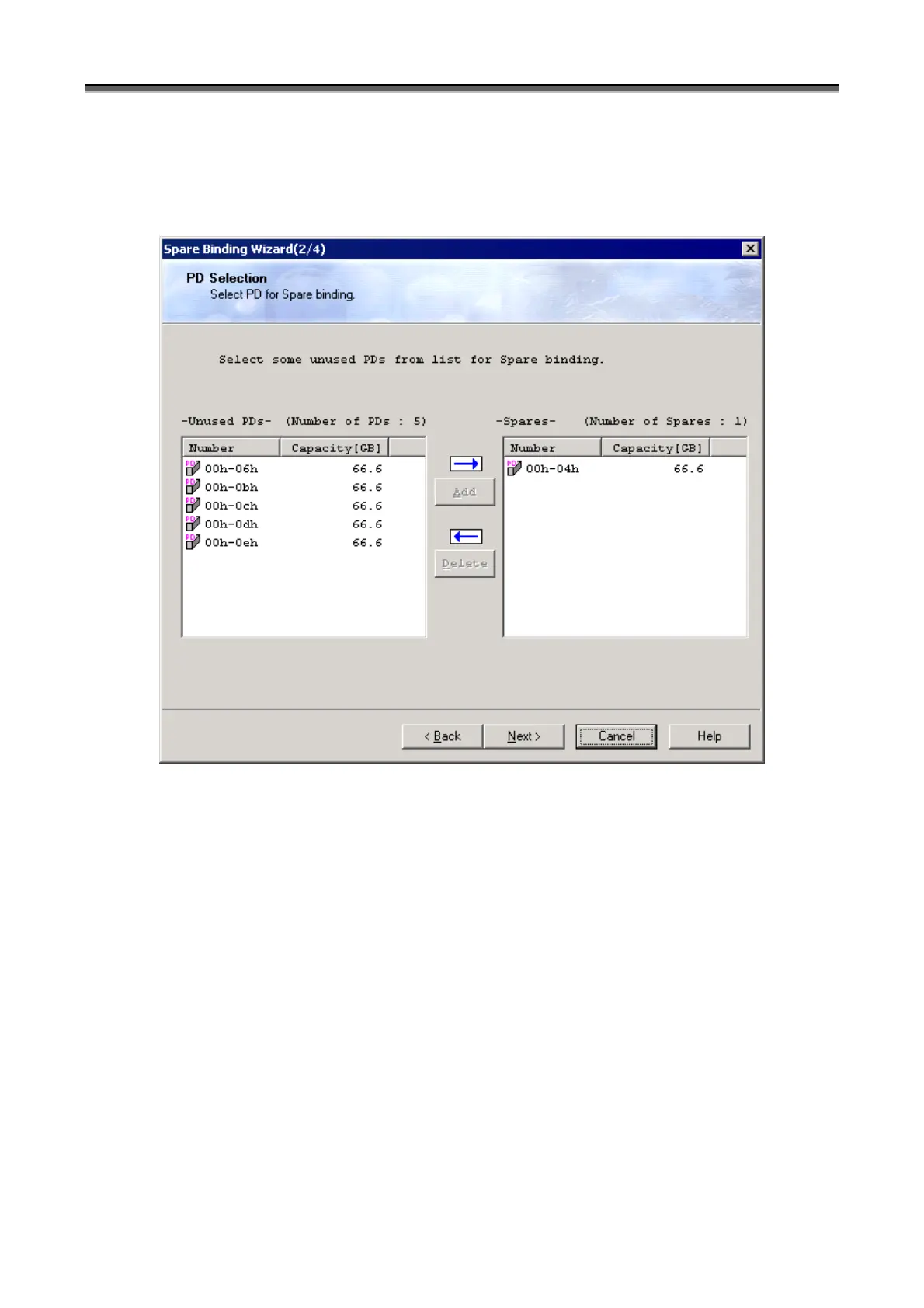

Figure 7-73 Selecting Physical Disks
Unused PDs: Allows selecting unused physical disk(s) to be used as spare disks.
Spares: Lists spare disks to be bound on the disk array.
[Add] button: Select unused physical disk(s) to be used as spare disks, then click this button to add them as
spares.
[Delete] button: Select any physical disks you do not want to use as spares, then click this button. The
selected physical disks are restored to the list of unused physical disks.
[Next] button: Displays the “Confirmation for Spare Binding Parameter” screen.
[Back] button: Displays back the “Welcome to the Spare Binding Wizard” screen.
[Cancel] button: Displays a confirmation to ask whether you want to quit the wizard, then the wizard closes if
agreed.
