(6) Confirm LD Batch Binding screen
Click the [OK] button after entering the required parameters into the LD Batch Bind screen described in (5) to
display the confirmation screen shown in Figure 8-24.
If there are no problems with the setting information on batch binding, click [Yes]. The RANK and LD binding
will start.

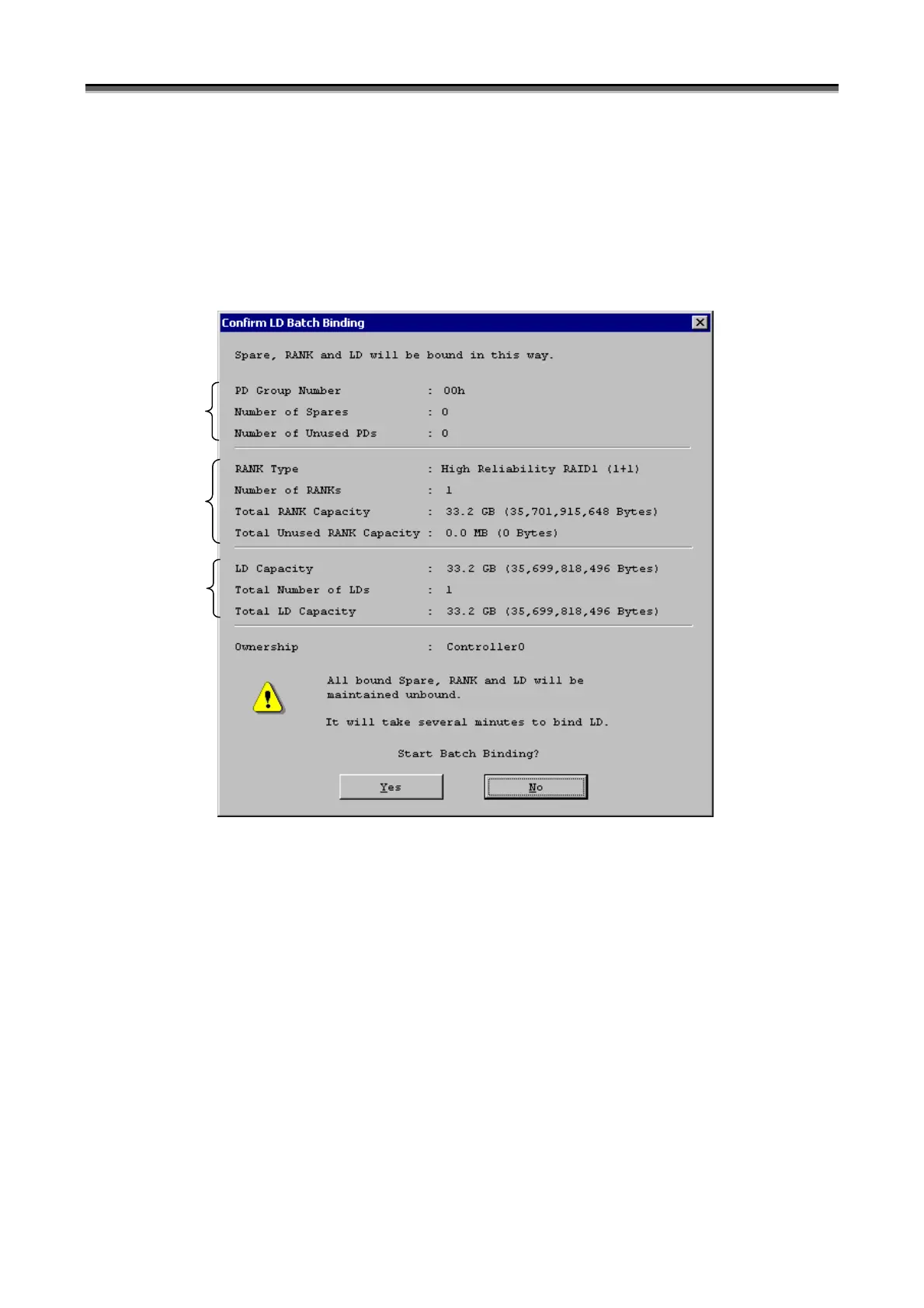

Figure 8-24 Confirm LD Batch Binding Screen
(A) Information About PD
y PD Group Number: PD group number to bind
y Number of Spares: (total) Number of spares to bind
y Number of Unused PDs: Number of PDs unused for binding
For batch binding, the number of PDs for RANK Bind is any of 2, 5, 7, and 9. Therefore, depending on
specifying the physical configuration and “Setting RANK”, “Unused PD” may be present.
