3-8 Disassembly and Reassembly
4.
Slide the LED/button assembly slightly to the right and lift away from the system.

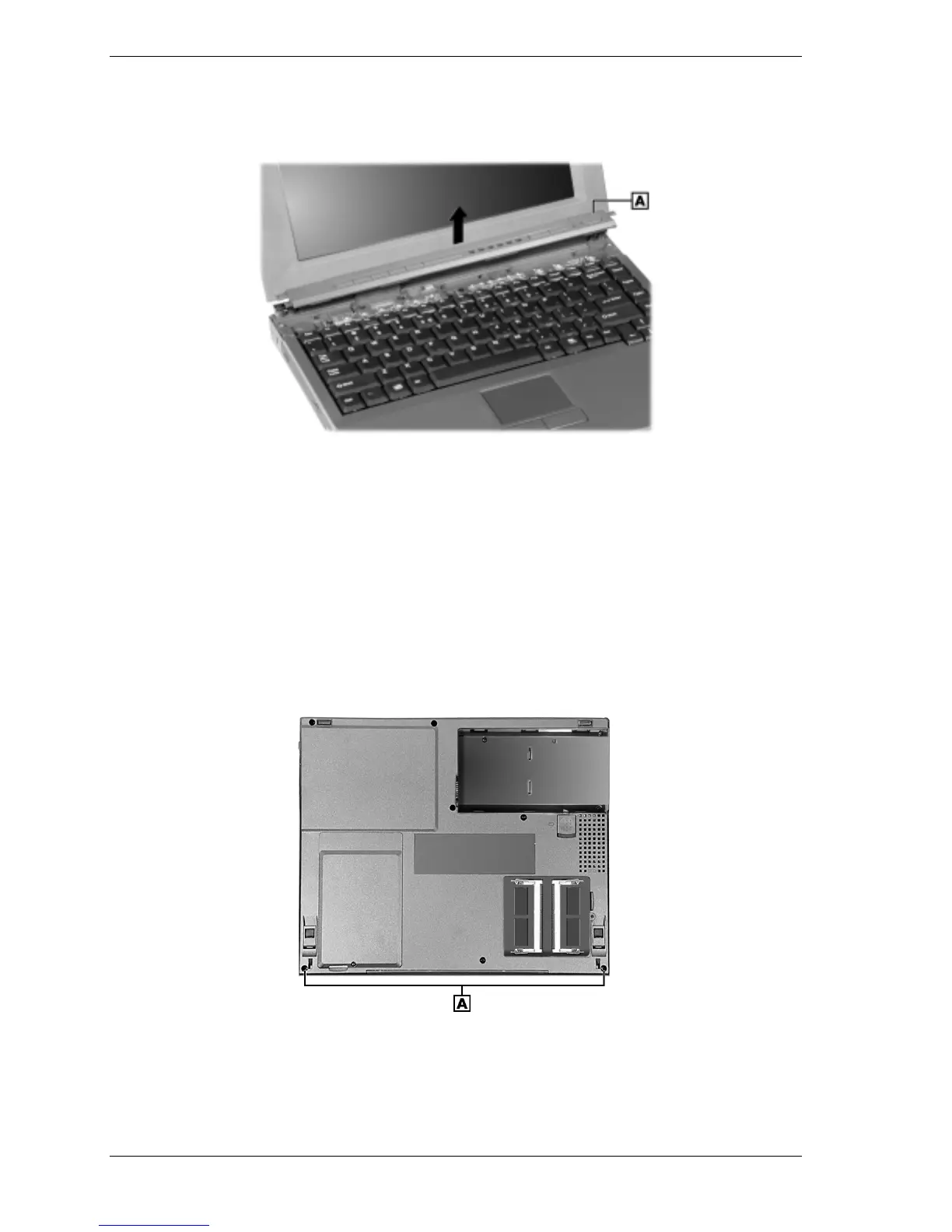

Removing the LED/button assembly
A
– LED/Button Assembly
LCD Panel
Remove the LCD panel as follows.
1.
Remove the LED/button assembly from the system.
2.
Close the LCD panel and turn the system over.
3.
Locate and remove the two bottom screws securing the LCD panel to the system.
Removing the screws
A – Screws
4.
Turn the system over and open the LCD panel.
