Disassembly and Reassembly 3-15
Audio Board
Remove the audio board as follows.
1.
Remove the LCD panel, keyboard, heat plate, and top cover from the system.
2.
Locate and remove the screw securing the audio board.
3.
Carefully unplug the audio board from connector P7 on the main board by lifting up the
audio board.

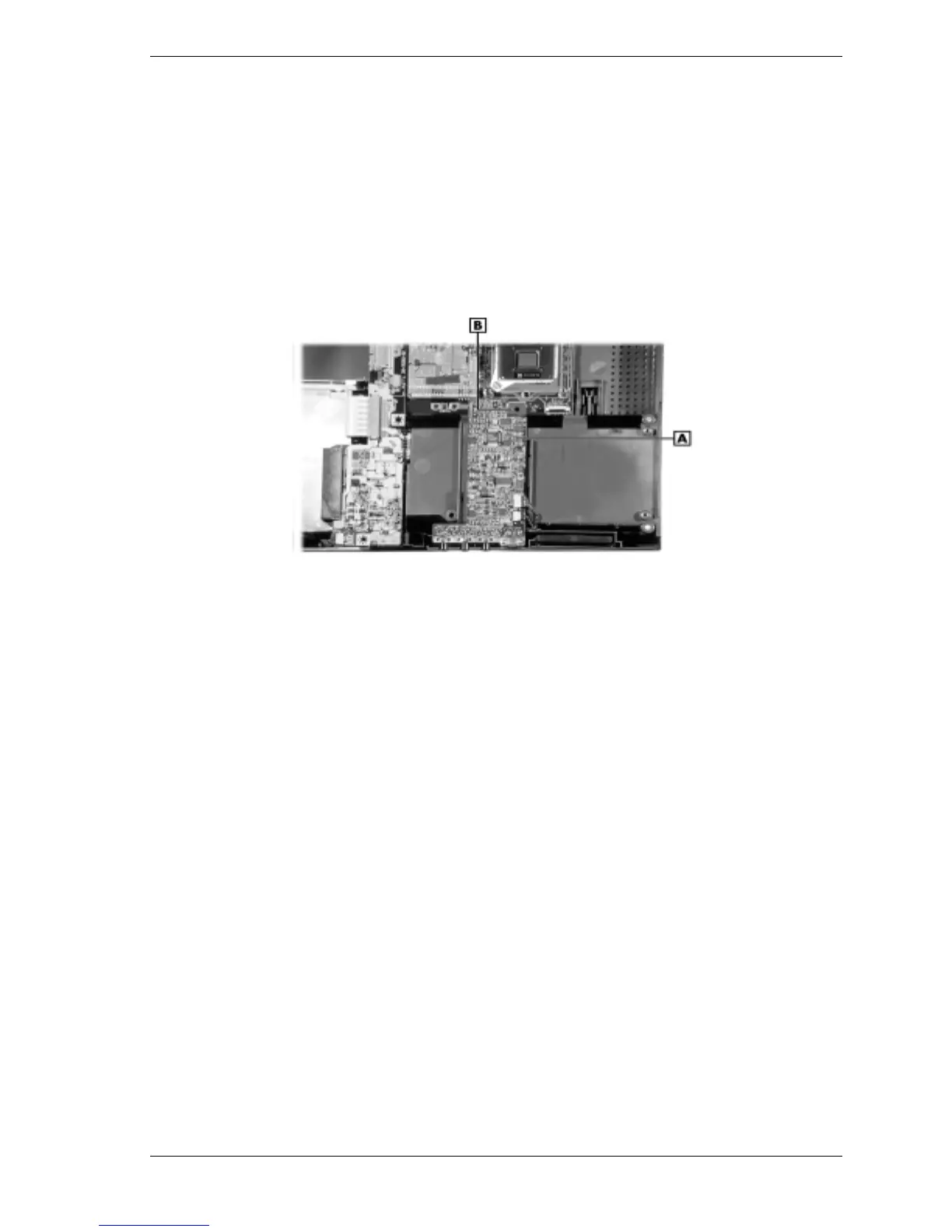

Removing the audio board
A – Audio Board B – Screw Bracket (screw not shown)
4.
Unplug the cables from connectors P1 and P2 on the audio board and remove the audio
board.
