3-20 Disassembly and Reassembly
Speakers
Remove the two speakers as follows.
1.
Remove the LCD panel, keyboard, heat plate, top cover, audio board, and I/O board from
the system.
2.
Slide each speaker up and out of the front of the base assembly.

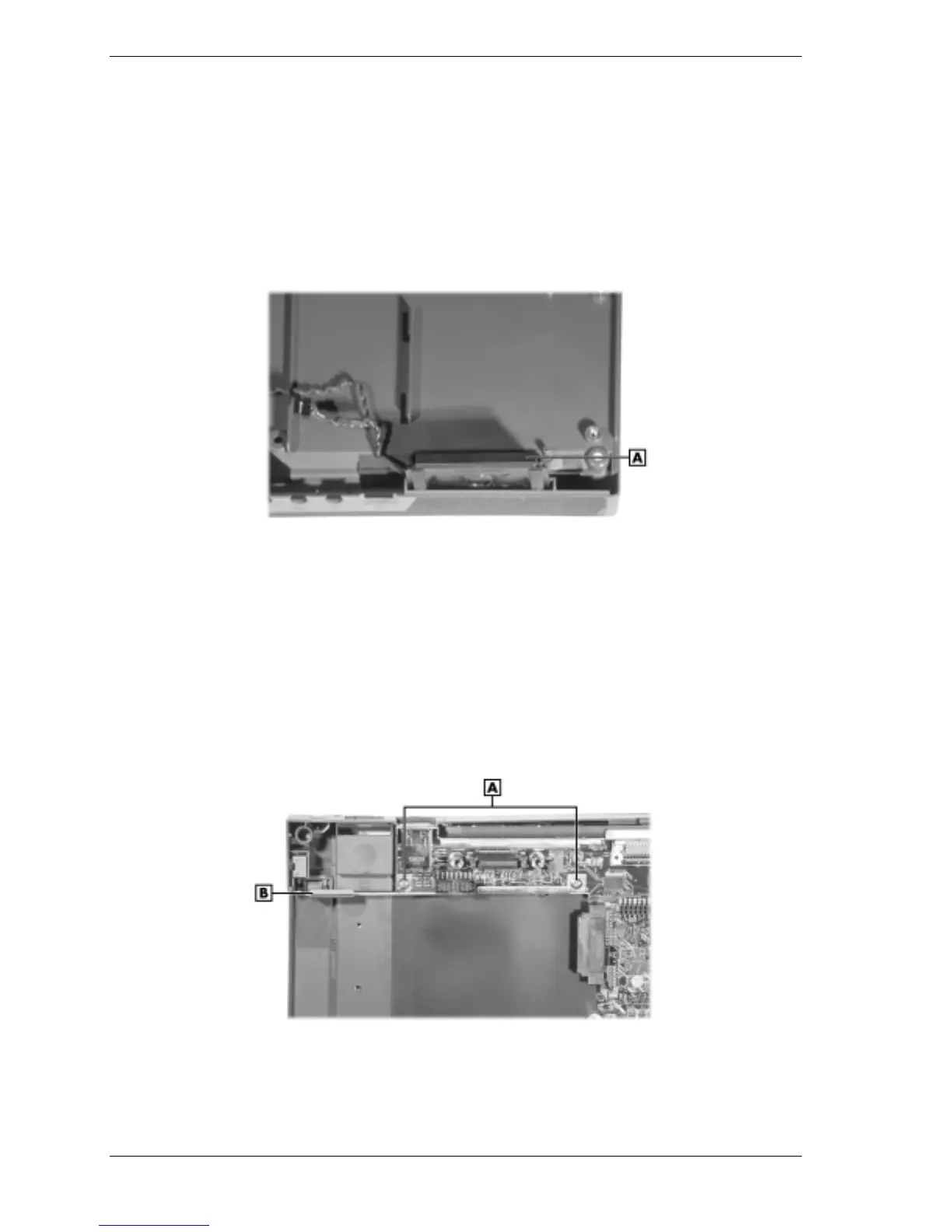

Removing the speaker
A – Speaker
Kensington Lock Latch
Remove the Kensington lock latch as follows.
1.
Remove the LCD panel, keyboard, heat plate, and top cover from the system.
2.
Locate and remove the two screws securing the lock latch to the main board.
Removing the lock latch screws
A – Screws B – Lock Latch
3.
Lift the Kensington lock latch out of the base assembly.
